Description

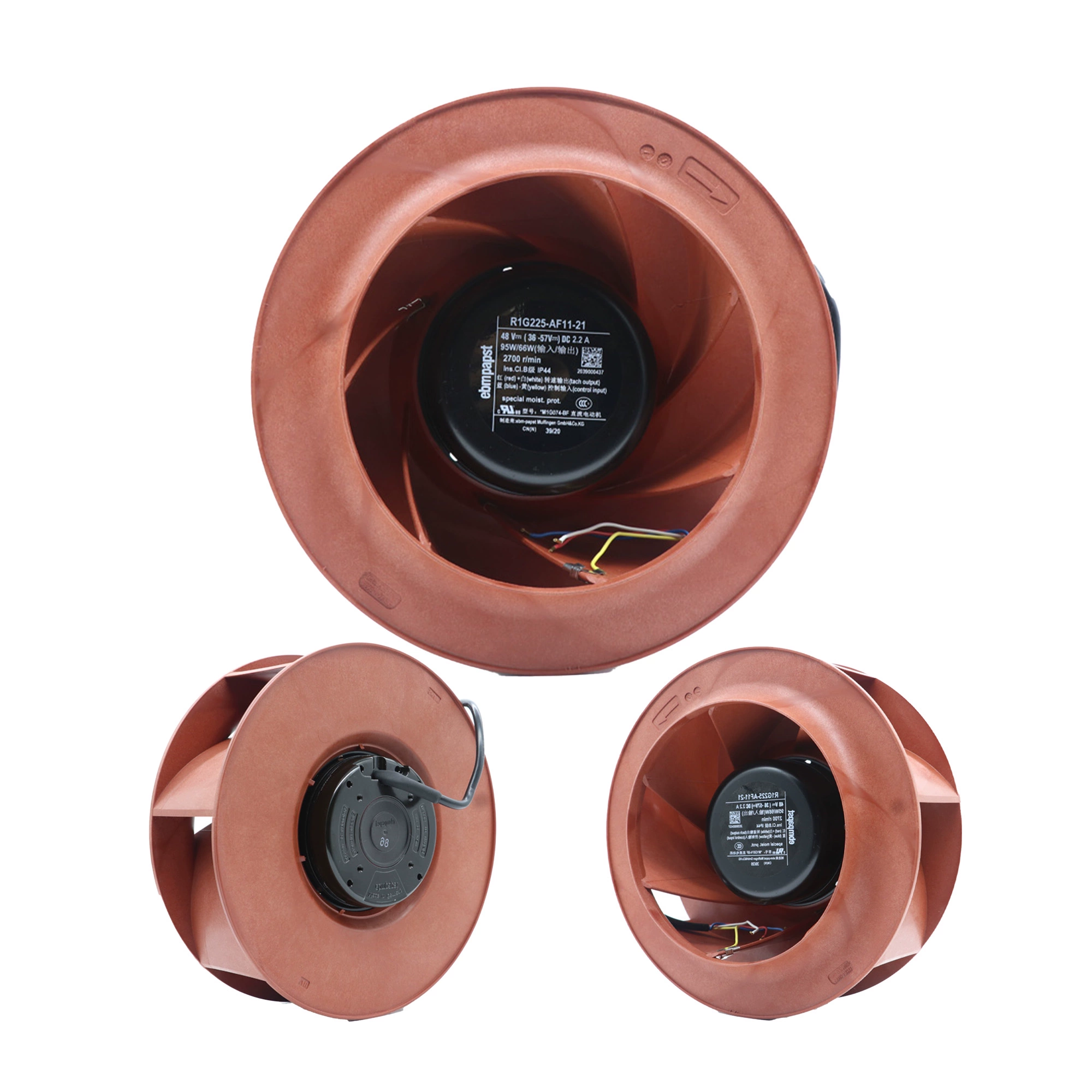

The ebmpapst R1G225-AF11-21 is a highly efficient 48V DC EC centrifugal fan with backward-curved blades. It functions as a motorized impeller with an impeller diameter of 225mm. Operating at 48V DC, it consumes 95W of power, drawing 2.2A of current, and spins at 2700 RPM. This fan delivers a significant airflow of 1130 m³/h / 665 CFM and operates with a noise level of 67 dBA. It is rated IP44 for protection, features robust ball bearings, and utilizes a plastic impeller with a black-painted rotor surface. Its EC motor technology with integrated electronics and speed control features makes it ideal for precision ventilation in applications such as telecommunication cabinets, air purification systems, and other controlled environments.
R1G225-AF11-21 Fan Parameters
Model Number: R1G225-AF11-21
Manufacturer: ebmpapst
Type: EC Centrifugal Fan / Motorized Impeller (Backward-Curved, Single Inlet)
Impeller Diameter: 225mm
Rated Voltage: 48 VDC
Operating Voltage Range: 36 – 57 VDC
Rated Current: 2.2A
Rated Power: 95W
Speed: 2700 RPM
Airflow (Free Air): 1130 m³/h / 665 CFM
Static Pressure: Up to 442 Pa
Noise Level: 67 dBA
IP Rating: IP44
Connector: 4 Wire Leads (Power: Red/Blue; Control: Yellow for 0-10VDC/PWM, White for Tach output)
Bearing Type: Ball Bearing
Impeller Material: PA66 plastic, glass-fiber reinforced, with sheet-metal plate
Rotor Surface: Painted black
Operating Temperature: -25°C to +60°C
Weight: 1.5 kg
Features: EC motor technology, integrated electronics, 0-10 VDC / PWM control input, Tach output, Motor current limitation, Soft start, Reverse polarity and locked-rotor protection
Approvals/Certifications: CE, CSA C22.2 No. 77, UL 1004-1, CCC
Key Application: Telecommunication cabinets, Air purification systems, Medical equipment, Controlled environment ventilation

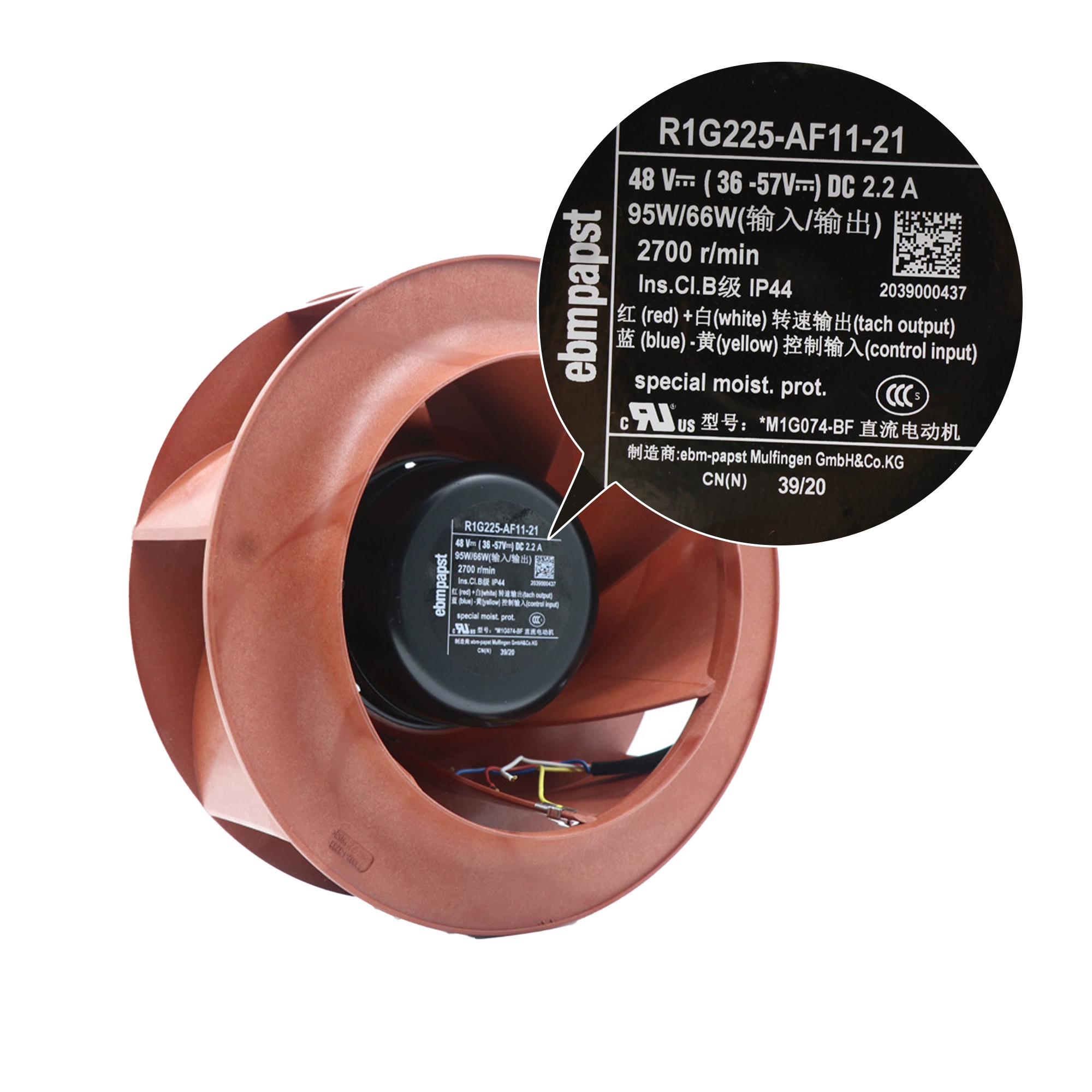

ebmpast imported R1G225-AF11-21 48V 2.2A M1G074-BF purifier centrifugal fan
