Description

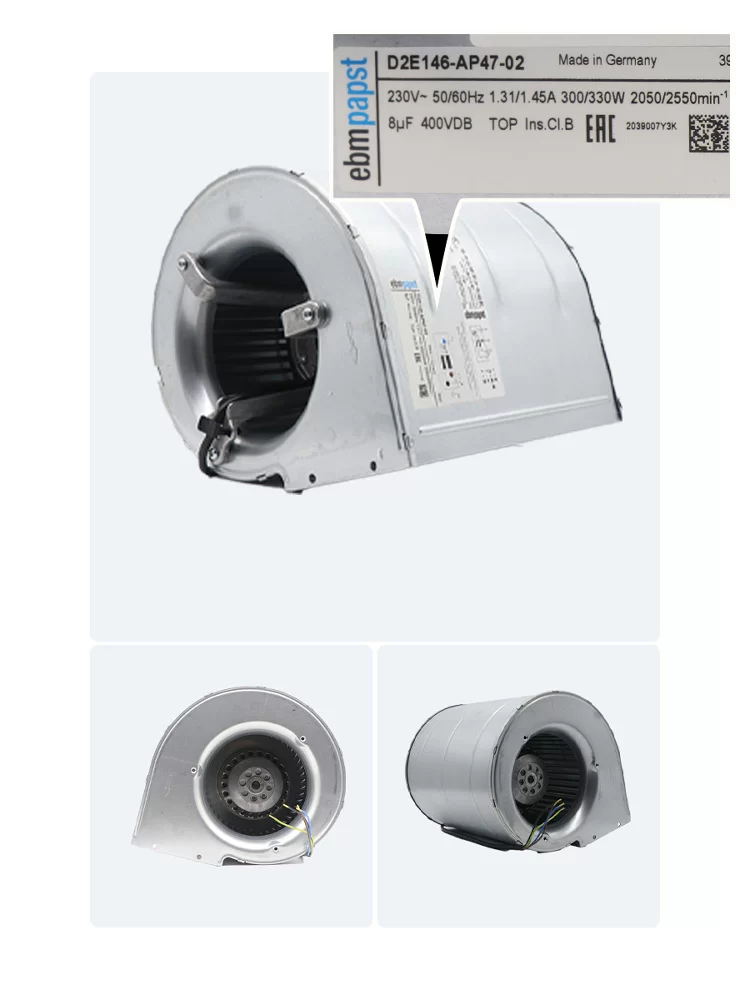

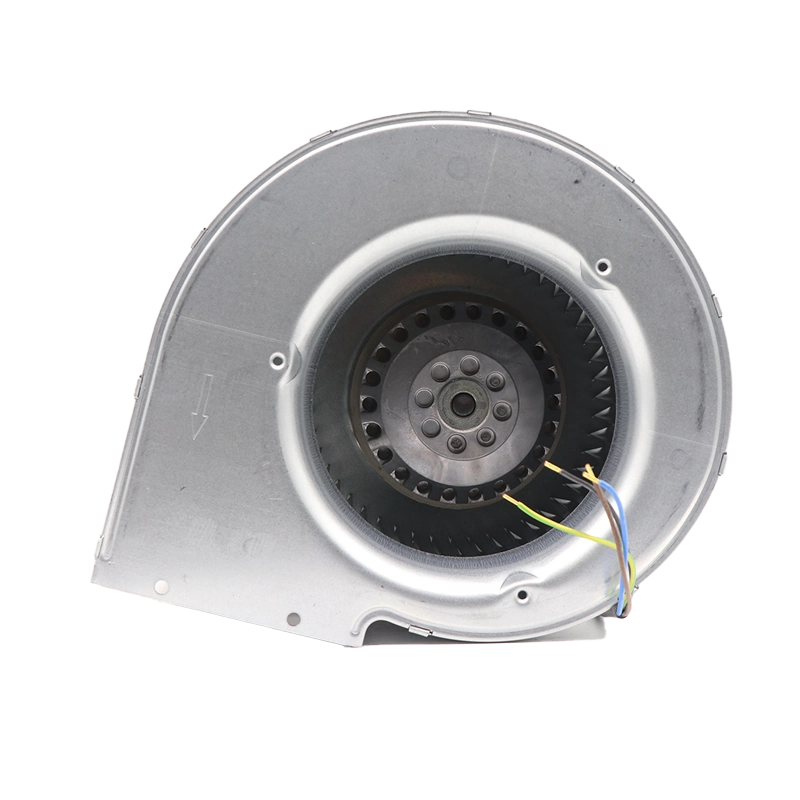

The ebmpapst D2E146-AP47-02 is a robust centrifugal fan with a diameter of 146mm, designed for efficient air handling in demanding applications such as variable frequency drives and other industrial equipment. Operating on a 230V AC (1-phase) power supply at both 50Hz and 60Hz, this fan precisely draws 1.31A (50Hz) or 1.45A (60Hz) of current, consuming 300W (50Hz) or 330W (60Hz) of power. It achieves rotational speeds of 2050 RPM (50Hz) and 2550 RPM (60Hz). Utilizing durable ball bearings and an IP44 degree of protection, this model ensures a long operational life and provides reliable performance in various environments.
D2E146-AP47-02 Fan Parameters
Model Number: D2E146-AP47-02
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward-curved, dual inlet with housing)
Nominal Diameter: 146 mm
Motor: M2E068-EC
Rated Voltage: 230 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 1.31A (50Hz) / 1.45A (60Hz)
Rated Power: 300 W (50Hz) / 330 W (60Hz)
Speed: 2050 RPM (50Hz) / 2550 RPM (60Hz)
Bearing Type: Ball Bearing
Rotor Material: Partially cast in aluminum
Impeller Material: Sheet steel, hot-dip galvanized
Housing Material: Sheet steel, hot-dip galvanized
Direction of Rotation: Counter-clockwise, seen on rotor
Electrical Connection: 4 lead wires with crimped tips
Motor Capacitor: 8 µF, 400 VDB
Motor Protection: Thermal overload protector (TOP) internally wired
Weight: 4.2 kg
Operating Temperature: -25°C to +30°C (50Hz) / -25°C to +25°C (60Hz)
Degree of Protection: IP44
Insulation Class: “B”
Conformity: CE, CCC
Application: Variable frequency drives (VFDs), inverters (e.g., ABB ACS800 VFD), industrial machinery, ventilation systems.
Germany ebmpapst D2E146-AP47-02 230V 300W Photovoltaic inverter cooling fan
