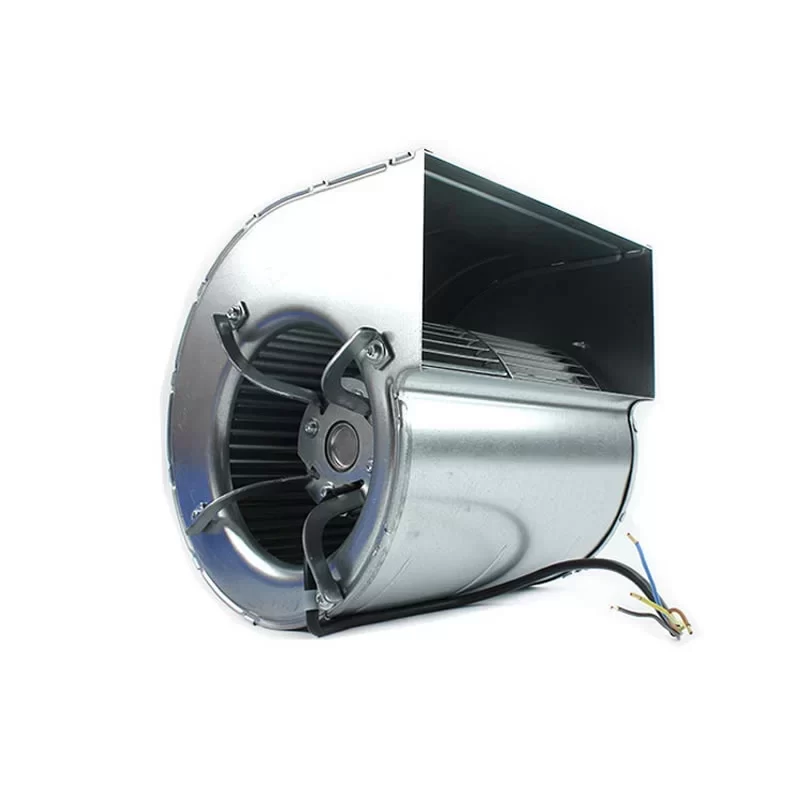

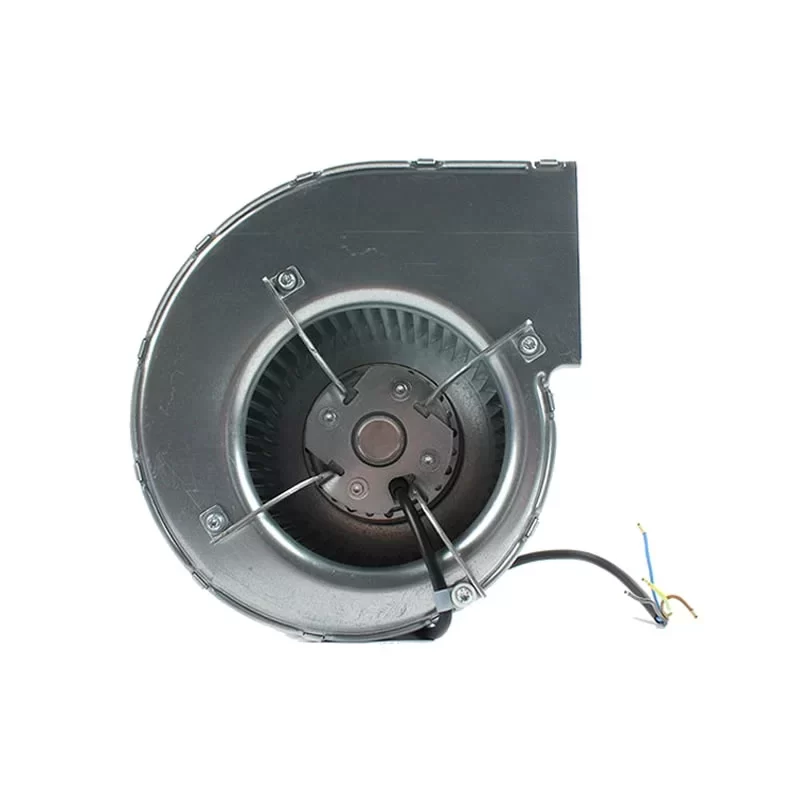

D4E160-EG06-05 ebmpapst 230V 180W AC Centrifugal Fan

Description

The ebmpapst D4E160-EG06-05 is a high-performance AC Centrifugal Fan with an impeller size of 160 mm and dimensions of 220 x 204 x 222 mm (including scroll housing). This dual-inlet, forward-curved fan features a robust housing and impeller made of galvanized sheet steel, specifically designed to withstand industrial duty cycles. Operating on a nominal 230 VAC (50/60 Hz), it delivers an input power of 180 W at 50 Hz and 245 W at 60 Hz, with a maximum airflow of approximately 647.4 CFM (1100 m³/h). Engineered for high-pressure air displacement, this model is a critical component for AC-based Fan Filter Units (FFU), biological safety cabinets, and air curtain systems. Equipped with maintenance-free ball bearings, an IP44 protection rating, and a net weight of 5.5 kg, it ensures long-term operational stability and efficient thermal management in cleanrooms, laboratories, and commercial HVAC applications.

D4E160-EG06-05 Fan Parameters
Manufacturer: ebmpapst
Model Number: D4E160-EG06-05
Type: AC Centrifugal Fan (Forward-curved, Dual-inlet)
Dimensions: 220 x 204 x 222 mm
Impeller Size: 160 mm
Nominal Voltage: 230 VAC
Operating Voltage Range: 195 to 265 VAC
Frequency: 50 / 60 Hz
Speed: 1300 / 1350 RPM
Power Input: 180 / 245 W
Rated Current: 0.79 / 1.07 A
Max. Airflow: 588.5 CFM (1000 m³/h) / 647.4 CFM (1100 m³/h)
Max. Static Pressure: 320 Pa (1.28 inAq)
Noise Level: 62 / 64 dB(A)
Weight: 5.5 kg
Termination: Multi-core cable (approx. 450 mm), leads stripped and tinned
Capacitance: 6.0 µF / 400 VDB (Required for operation)
Bearing Type: Ball Bearing
Housing Material: Galvanized sheet steel
Impeller Material: Galvanized sheet steel
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Degree of Protection: IP44
Insulation Class: F
Humidity Class: F1-2
Operating Temp. Range: -25 °C to +40 °C
Safety Protections: Thermal overload protector (TOP) internally connected
Approvals: VDE, CE, CCC, EAC, CSA, UL

Application
The D4E160-EG06-05 is a high-performance solution for “AC Fan Filter Units (FFU)” and specialized air handling systems requiring high static pressure. Its dual-inlet design and forward-curved multi-vane impeller are optimized to pull large volumes of air and force it through dense HEPA or ULPA filters, making it a cornerstone for medical cleanrooms, semiconductor micro-environments, and pharmaceutical sampling booths. Beyond cleanroom technology, its robust galvanized steel construction and 5.5 kg weight ensure high durability for air curtain systems in commercial entrances, industrial kitchen exhaust hoods, and cooling galleries for power electronics. The fan supports voltage-based speed control, allowing facility managers to balance 647.4 CFM (1100 m³/h) airflow and noise levels according to specific site requirements. Its thermal protection and F-class insulation ensure safety and longevity even in continuous 24/7 operation cycles.
