Description

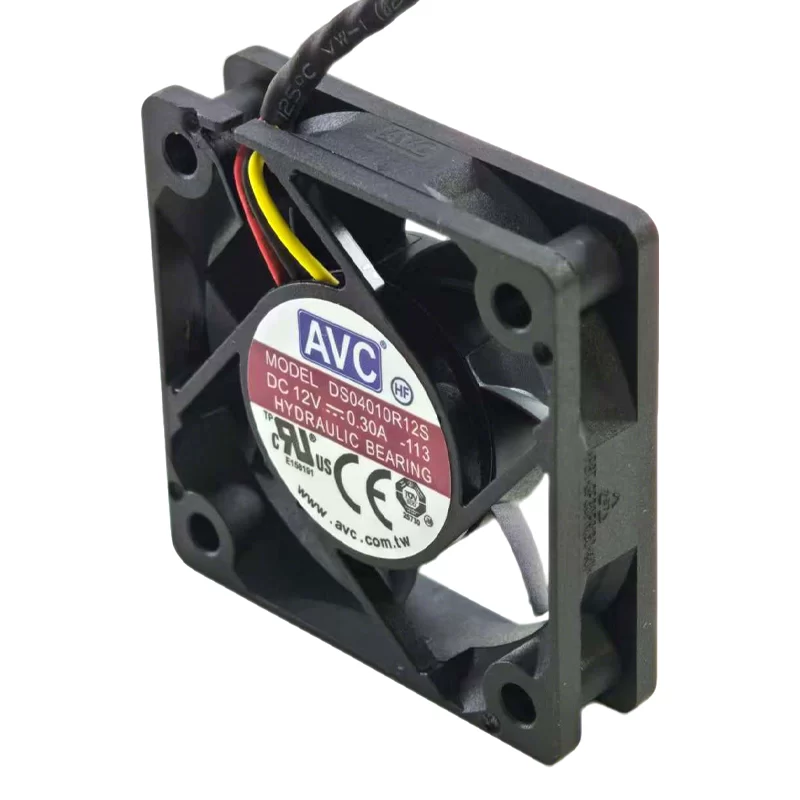

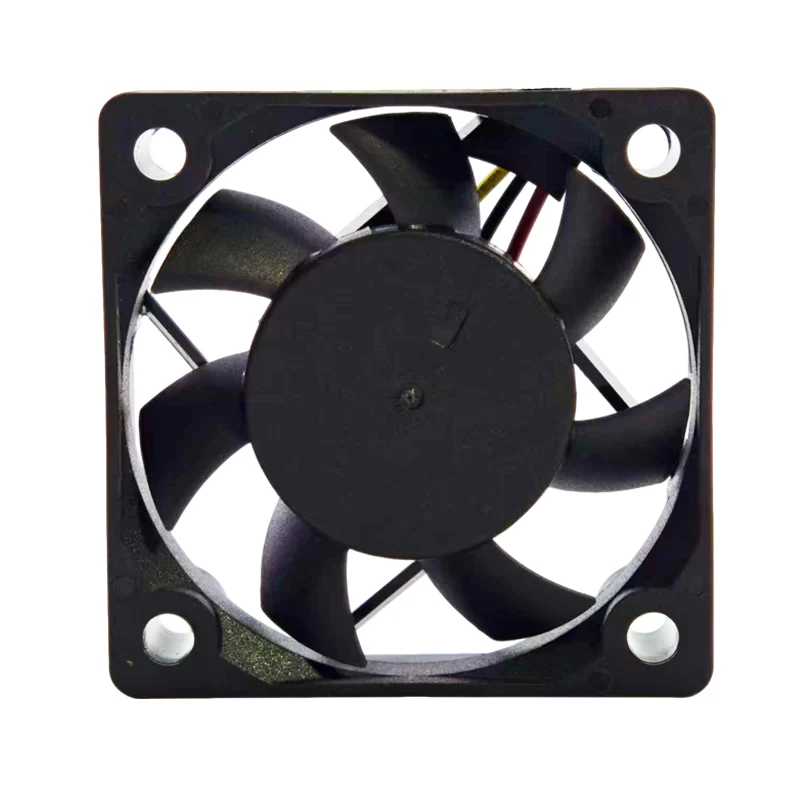

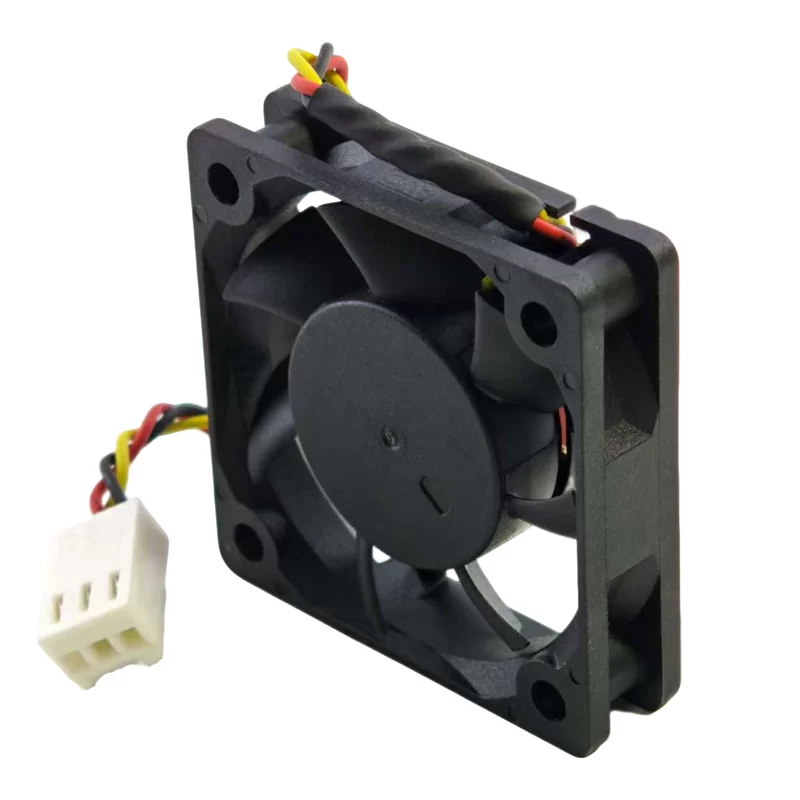

The AVC DS04010R12S is a high-performance 12VDC axial fan with compact dimensions of 40x40x10mm. Designed for cooling high-density components, it operates at a rapid speed of 8500RPM, providing 12.24CFM (20.8m³/h) of airflow and generating 0.276inchH₂O (68.8Pa) of static pressure. The fan consumes 3.6W of power and is constructed with plastic housing and a 7-bladed plastic impeller. Its 3-wire termination provides a dedicated output for a speed sensor, allowing for continuous system monitoring. It is commonly used for cooling components in compact electronics, mini PCs, and server blades.
DS04010R12S Fan Parameters
Manufacturer: Asia Vital Components
Model: DS04010R12S
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12 VDC
Current Rating: 0.3 A
Power Consumption: 3.6 W
Airflow: 12.24 CFM (20.8 m³/h)
Static Pressure: 0.276 inch H₂O (68.8 Pa)
Speed: 8500 RPM
Noise Level: 37.8 dB(A)
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG)
Housing Material: Plastic
Impeller Material: Plastic
Impeller Blades: 7
Weight: 15 g
Application: This AVC DC axial fan is suitable for cooling compact electronics, mini PCs, and server blades.
