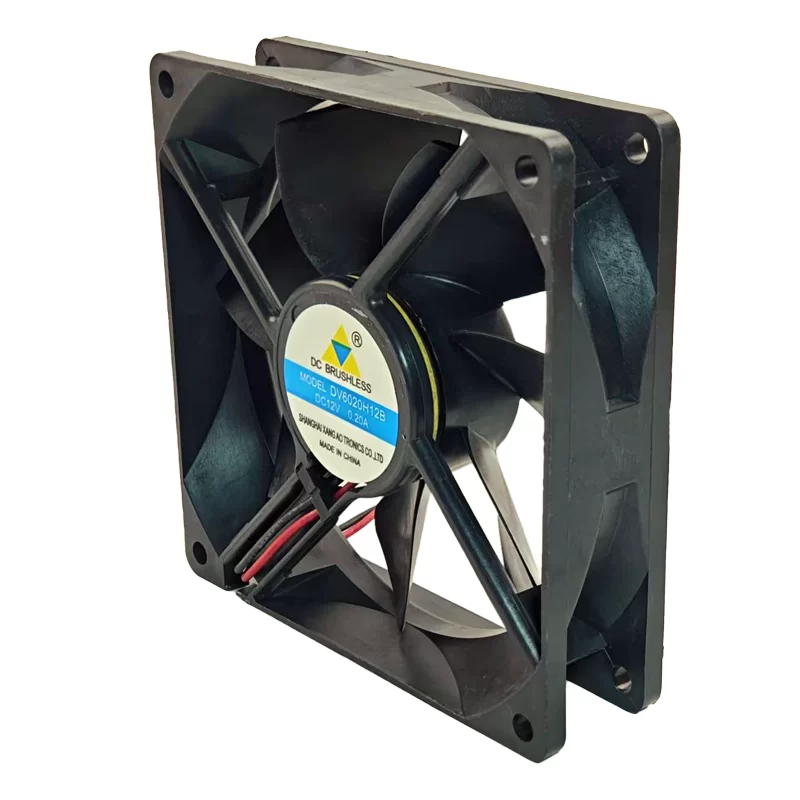

DV6020H12B XINGXINDA 12V 0.20A DC axial fan

Description

The XINGXINDA DV6020H12B is a DC axial fan measuring 60x60x20mm. It operates on 12 VDC, drawing 0.20 A of current, with a power consumption of 2.4 W. This fan typically achieves a speed of 3500 RPM, providing an airflow of 15 CFM (0.42 m³/min). The noise level is 25.2 dB(A). It features ball bearings for reliable operation and a long lifespan. The frame is generally made of plastic. It commonly connects via 2-wire Leads. This fan is widely used in compact electronic devices, small servers, networking equipment, and other applications requiring efficient cooling in confined spaces.

DV6020H12B Fan Parameters
Model: DV6020H12B
Manufacturer: XINGXINDA
Type: DC Axial Fan
Dimensions: 60x60x20 mm
Rated Voltage: 12 VDC
Rated Current: 0.20 A
Power Consumption: 2.4 W
Speed: 3500 RPM
Airflow: 15 CFM (0.42 m³/min)
Noise Level: 25.2 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Material Frame: Plastic
Material Blade: Plastic
Operating Temperature: -10 to 70°C
Expected Life: 70000 Hrs (at 40°C)
Application: Compact electronic devices, small servers, networking equipment, general cooling.
