Description

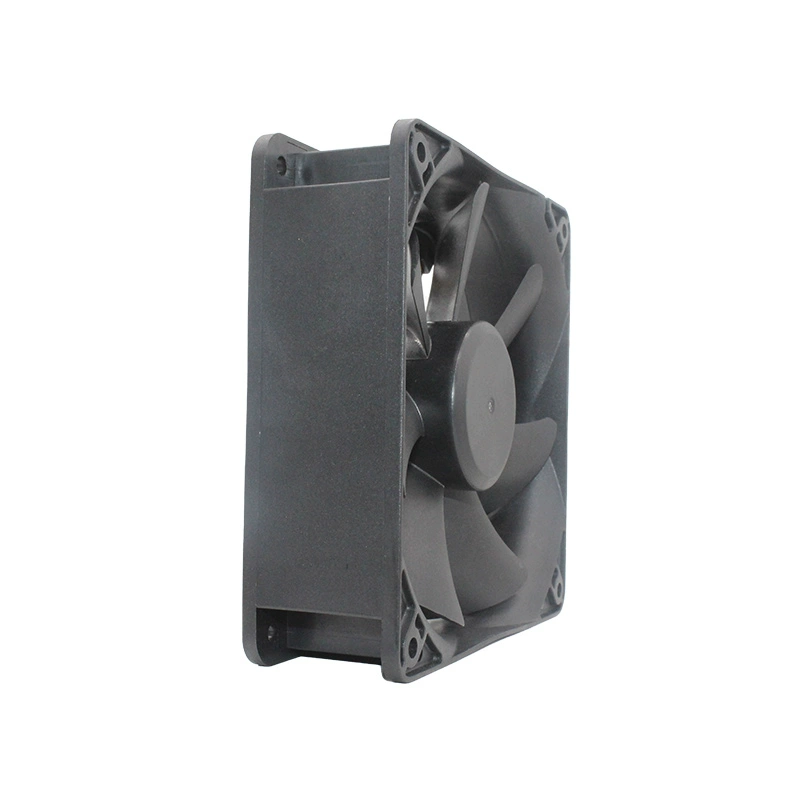

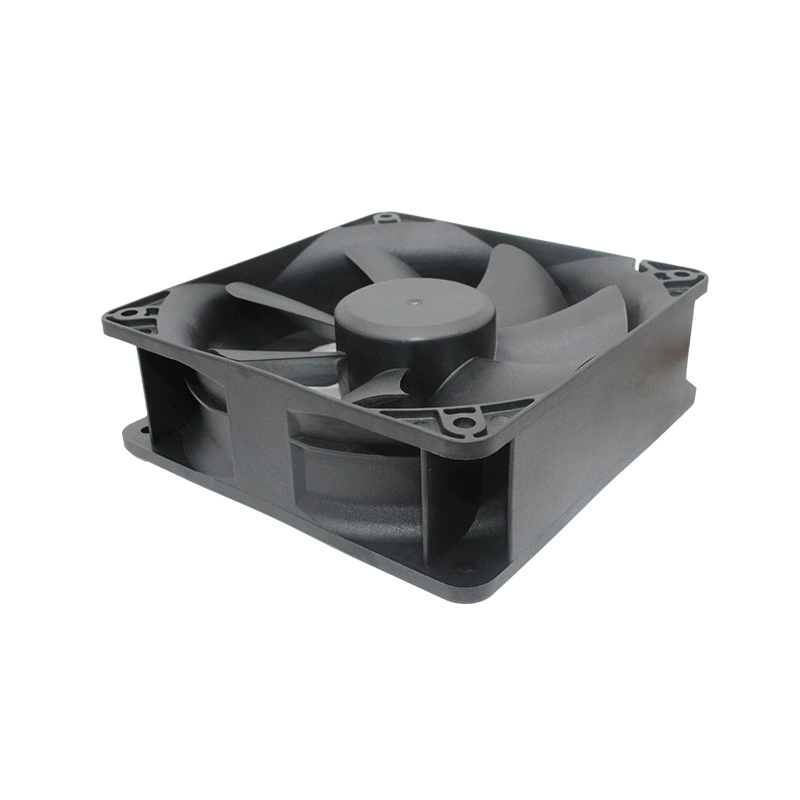

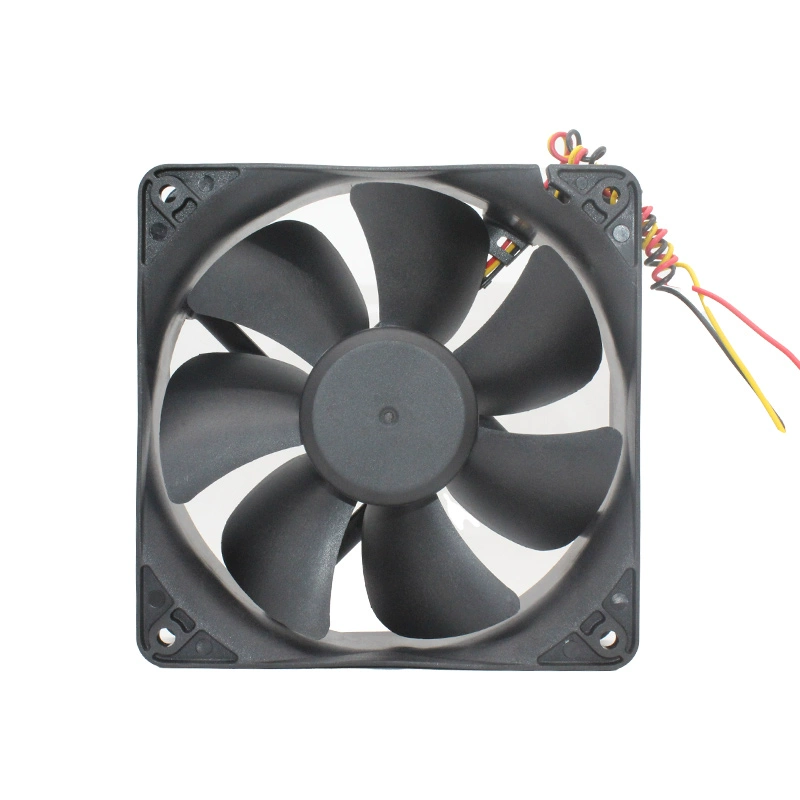

The Sunon EEC0382B2-0000-G99 is a standard-sized DC Axial Cooling Fan known for its reliable performance across a wide range of applications. Operating on 24V DC power, it draws 0.224A, consuming 5.4W. This 120mm x 120mm x 38mm fan spins at 2600 RPM, delivering 116.082 CFM of airflow and a static pressure of 6.6 mmH2O, making it suitable for general-purpose cooling within various enclosures. With a noise level of 44 dBA, it strikes a good balance between cooling efficiency and audible presence. The fan features a durable ball bearing and a 3-wire connector that provides tachometer output for system monitoring, ensuring a long operational life of 70,000 hours at 40°C. Its auto-restart function further enhances reliability by automatically resuming operation after power interruptions.
Brand new EEC0382B2-0000-G99 sunon 12038 inverter fan 24V 3-wire speed test fan 5.4W
Manufacturer: Sunon
Model Number: EEC0382B2-0000-G99
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Rated Current: 0.224A
Rated Power: 5.4W
Speed: 2600 RPM
Airflow: 116.082 CFM (or 197.2 m³/h)
Static Pressure: 6.6 mmH2O (or 0.26 inH2O)
Noise Level: 44 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 3-Wire
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Material: Thermoplastic
Additional Functions: Auto-restart
