F7015B12MN AVC 12V DC Axial Fan

Description

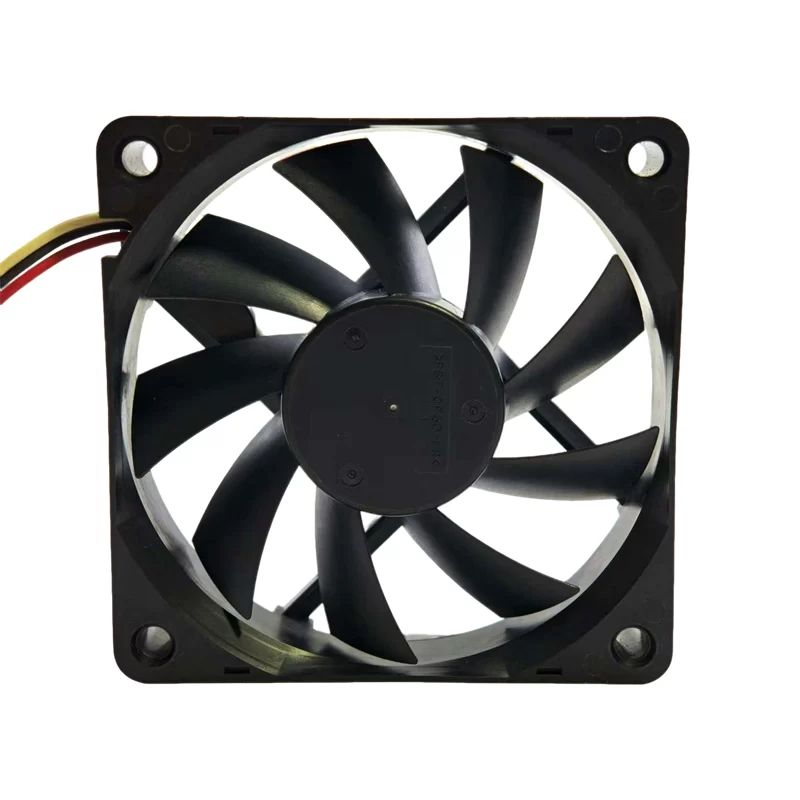

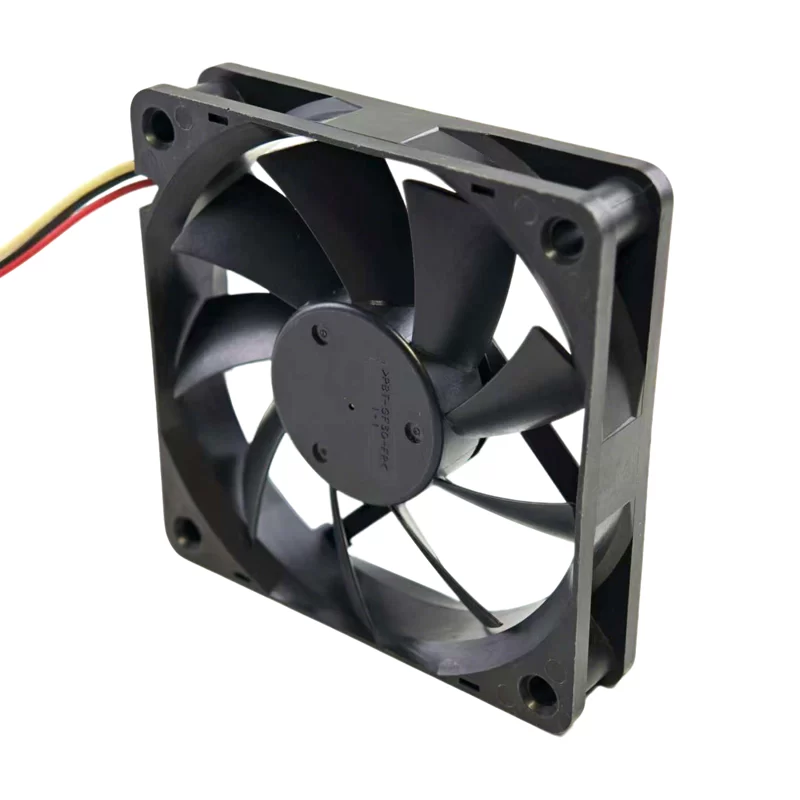

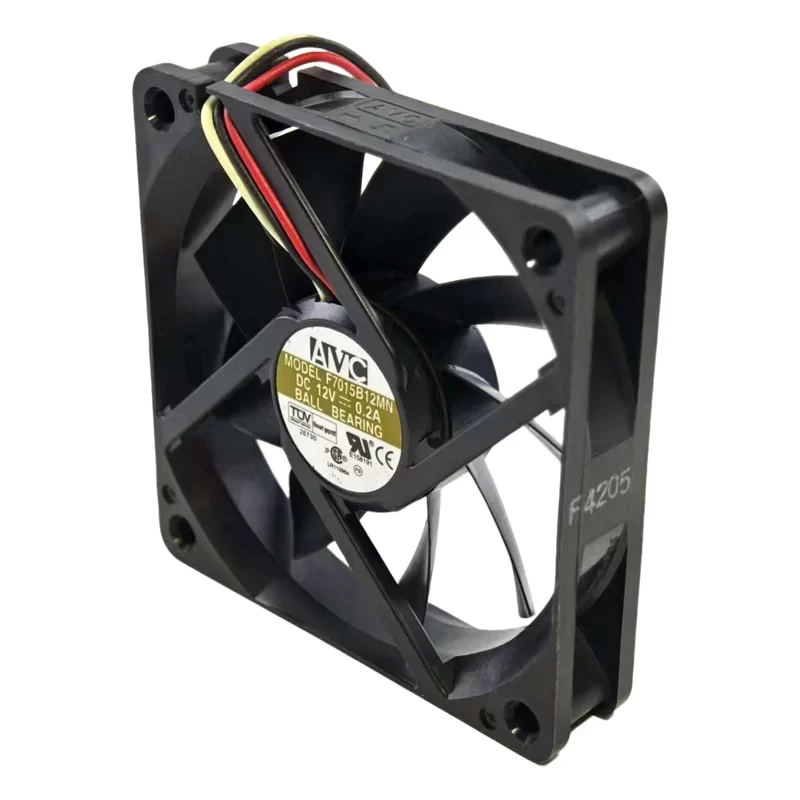

The AVC F7015B12MN is a compact DC axial fan with dimensions of 70 x 70 x 15 mm. It operates on 12V DC, drawing 0.2 A of current and consuming 2.4 W of power. This fan delivers an airflow of 26.5 CFM (45 m³/h) and a static pressure of 0.14 inch H₂O (35 Pa). It runs at a speed of 2800 RPM with a noise level of 29 dB(A). It uses ball bearings for enhanced durability and features three-wire leads.

F7015B12MN Fan Parameters
Manufacturer: AVC
Model: F7015B12MN
Fan Type: DC Axial Fan
Dimensions: 70 x 70 x 15 mm
Rated Voltage: 12V DC
Current Rating: 0.2 A
Power Consumption: 2.4 W
Airflow: 26.5 CFM (45 m³/h)
Static Pressure: 0.14 inch H₂O (35 Pa)
Speed: 2800 RPM
Noise Level: 29 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Operating Temperature: -10 °C ~ 70 °C
Application: The F7015B12MN is a versatile fan suitable for component cooling in electronic devices and other systems where a compact footprint and reliable airflow are required.
