Description

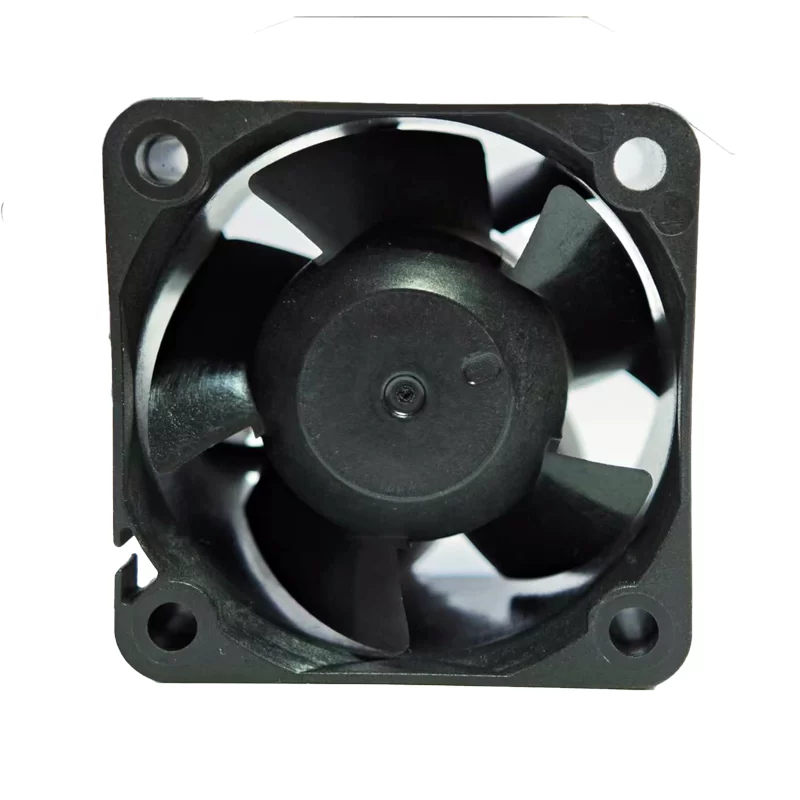

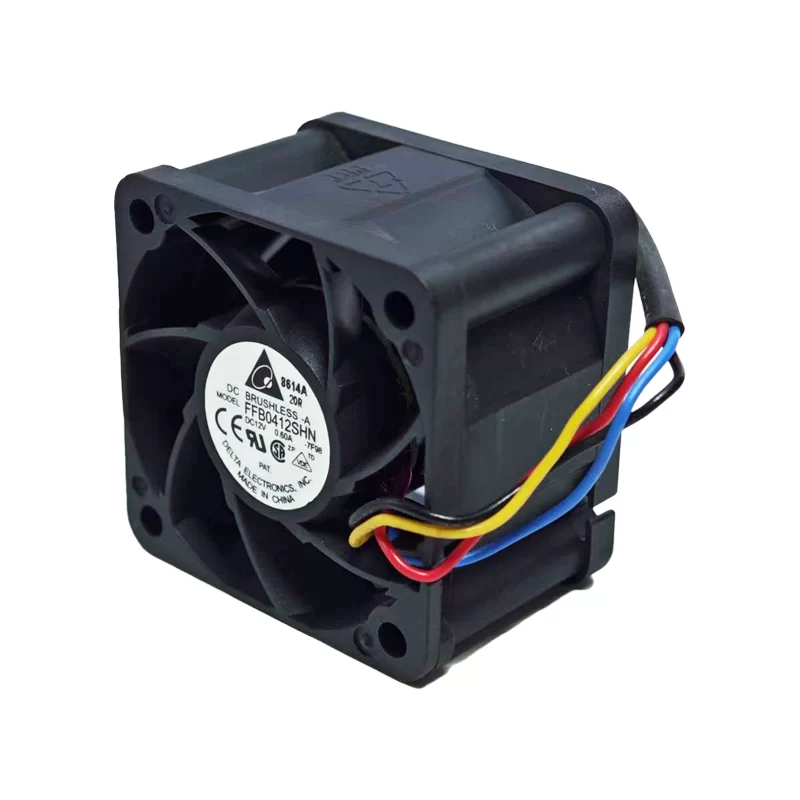

FFB0412SHN-7F98 12V 0.6A 4028 high-wind pressure cooling fan
Model Number: FFB0412SHN-7F98
Manufacturer: Delta Electronics
Series: FFB
Fan Type: DC Brushless Axial Fan

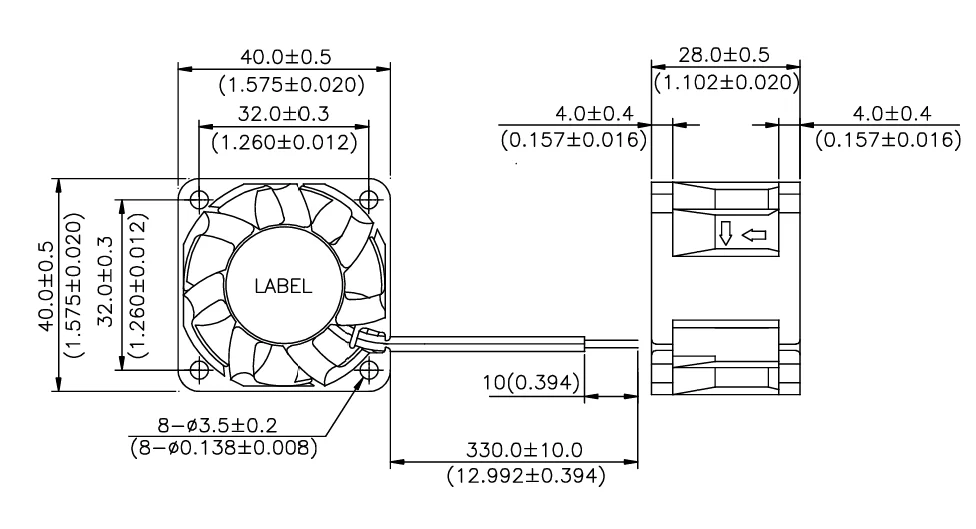

Dimensions L x H x W: 40 mm x 40 mm x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Rated Current: 0.60 A
Input Power: 6.00 W to 7.2 W

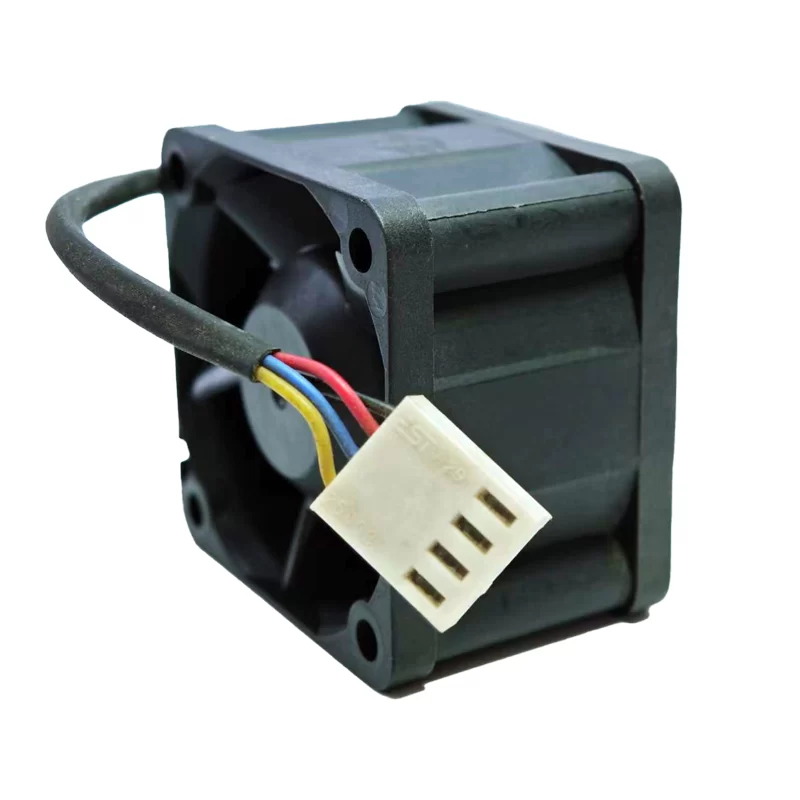

Wiring: 4 Wire Leads (typically for PWM control and Tachometer output)
Bearing Type: Double Ball Bearing
Rotational Speed RPM: 13000 RPM to 13500 RPM
Maximum Airflow: 24.0 CFM to 43 CFM
Maximum Static Pressure: 1.075 in H2O to 110 Pa
Noise Level: 40 dB to 54.5 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Locked Rotor Protection, Overload Protection, Fault Protection
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 50,000 Hours at 40°C
Mass: Approximately 32 g to 40 g
Safety Approvals: CE, CSA, UL, VDE
The Delta FFB0412SHN-7F98 is an extremely high-performance 40x40x28mm DC axial fan from Delta’s FFB series, designed for intensive cooling in space-constrained applications. Operating on 12VDC, it consumes 6.00W to 7.2W of power with a current draw of 0.50A to 0.60A. This fan features robust double ball bearings for extended reliability and a long expected life of 50,000 hours at 40°C. It delivers a very high airflow of 24.0 CFM to 43 CFM at rapid speeds ranging from 13000 RPM to 13500 RPM, generating substantial static pressure, which is ideal for pushing air through dense heatsinks or restrictive pathways. Its noise level is notably high, ranging from 40 dB to 54.5 dB, reflecting its powerful performance. The 4-wire configuration typically provides PWM control for speed modulation and a tachometer output for speed monitoring, along with comprehensive locked rotor, overload, and fault protection. This fan is a prime choice for cooling 1U/2U servers, high-end networking equipment, and other mission-critical electronics where maximum heat dissipation in a compact form factor is paramount, often accepting higher noise levels for superior thermal performance.
