Description

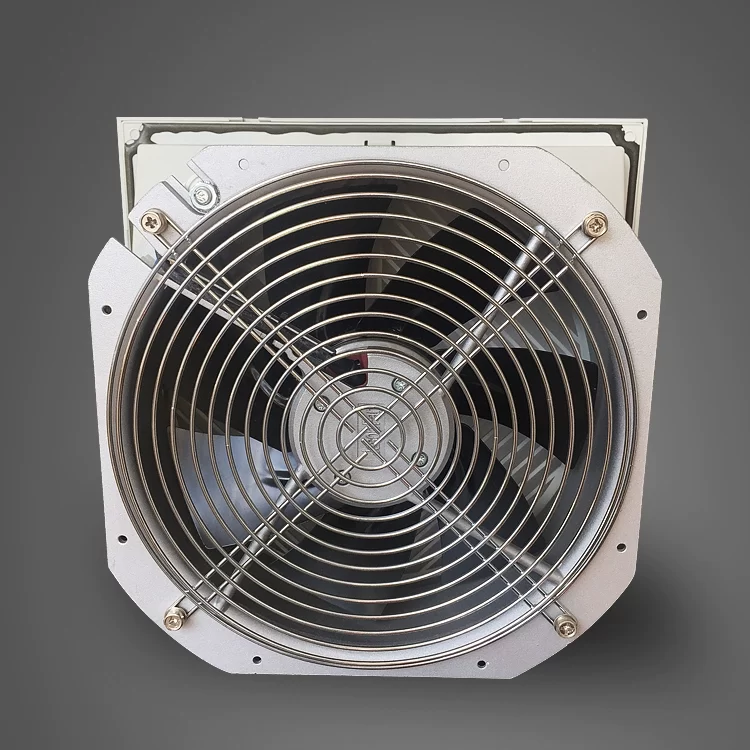

The JASON FJK6626M230 is a powerful filter fan unit designed for efficient ventilation. It operates on a rated voltage of 230V AC with a wide operating range of 150-250V, at frequencies of 50 Hz and 60 Hz. The unit contains a FJ22082MAB fan and delivers an impressive airflow of 1395 m³/h at 50 Hz and 1530 m³/h at 60 Hz. The corresponding static pressure is 95 Pa at 50 Hz and 105 Pa at 60 Hz, with a noise level of 63 dB(A) and 65 dB(A) respectively. This filter fan is designed for quick and easy installation with its no-screw, clip-in mounting feature.
FJK6626M230 Filter Fan Parameters
Manufacturer: JASON
Model: FJK6626M230
Type: Filter Fan
Internal Fan Model: FJ22082MAB
Dimensions: 324 x 324 x 145 mm
Rated Voltage: 230V AC
Operating Voltage Range: 150-250 V
Frequency: 50/60 Hz
Current Rating: 0.48 A (50 Hz), 0.62 A (60 Hz)
Power Consumption: 105 W (50 Hz), 140 W (60 Hz)
Airflow: 1395 m³/h (50 Hz), 1530 m³/h (60 Hz)
Static Pressure: 95 Pa (50 Hz), 105 Pa (60 Hz)
Noise Level: 63 dB(A) (50 Hz), 65 dB(A) (60 Hz)
Installation: No-screw, clip-in
Application
The FJK6626M230 filter fan is suitable for use in industrial control cabinets, electronic enclosures, and other applications where effective ventilation and protection against dust and debris are essential for maintaining optimal operating temperatures.
