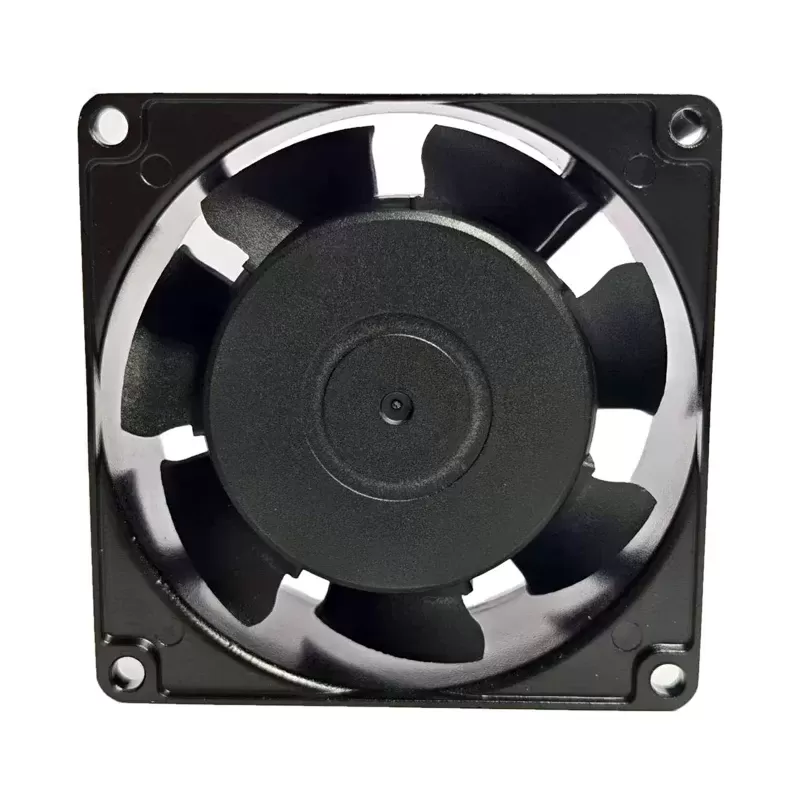

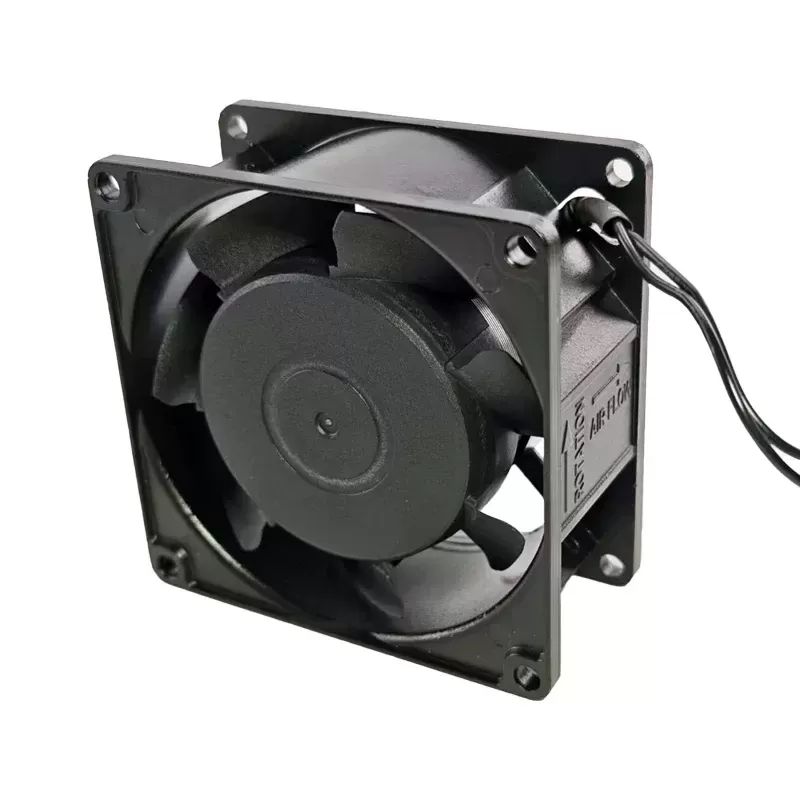

G8038HA2BL Jiulong 220V 0.07A 14W AC axial fan

Description

The Jiulong G8038HA2BL is an AC axial fan measuring 80x80x38mm. It operates on 220 VAC at 50/60 Hz frequencies, drawing 0.07 A of current. Power consumption is 14 W. This fan achieves a speed of 2800 RPM, providing an airflow of 30 CFM, with a static pressure of 0.18 in H2O. The noise level is 38 dB(A). It is equipped with ball bearings for durable operation and features 2-wire leads. Constructed with an aluminum frame and plastic impeller, it is designed for general purpose cooling and ventilation in smaller electronic enclosures and industrial control panels.

G8038HA2BL Fan Parameters
Model: G8038HA2BL
Manufacturer: Jiulong
Brand: Jiulong
Type: AC Axial Fan
Dimensions: 80x80x38 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.07 A
Power Consumption: 14 W
Speed: 2800 RPM
Airflow: 30 CFM
Static Pressure: 0.18 in H2O
Noise Level: 38 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire leads
Frame Material: Aluminum
Impeller Material: Plastic
Operating Temperature: -10°C to +60°C
Life Expectancy: 50,000 hours
Motor Protection: Impedance Protected
Approval Agency: CE
Application: Electronic enclosures, small appliances, industrial control panels, general ventilation.
