Description

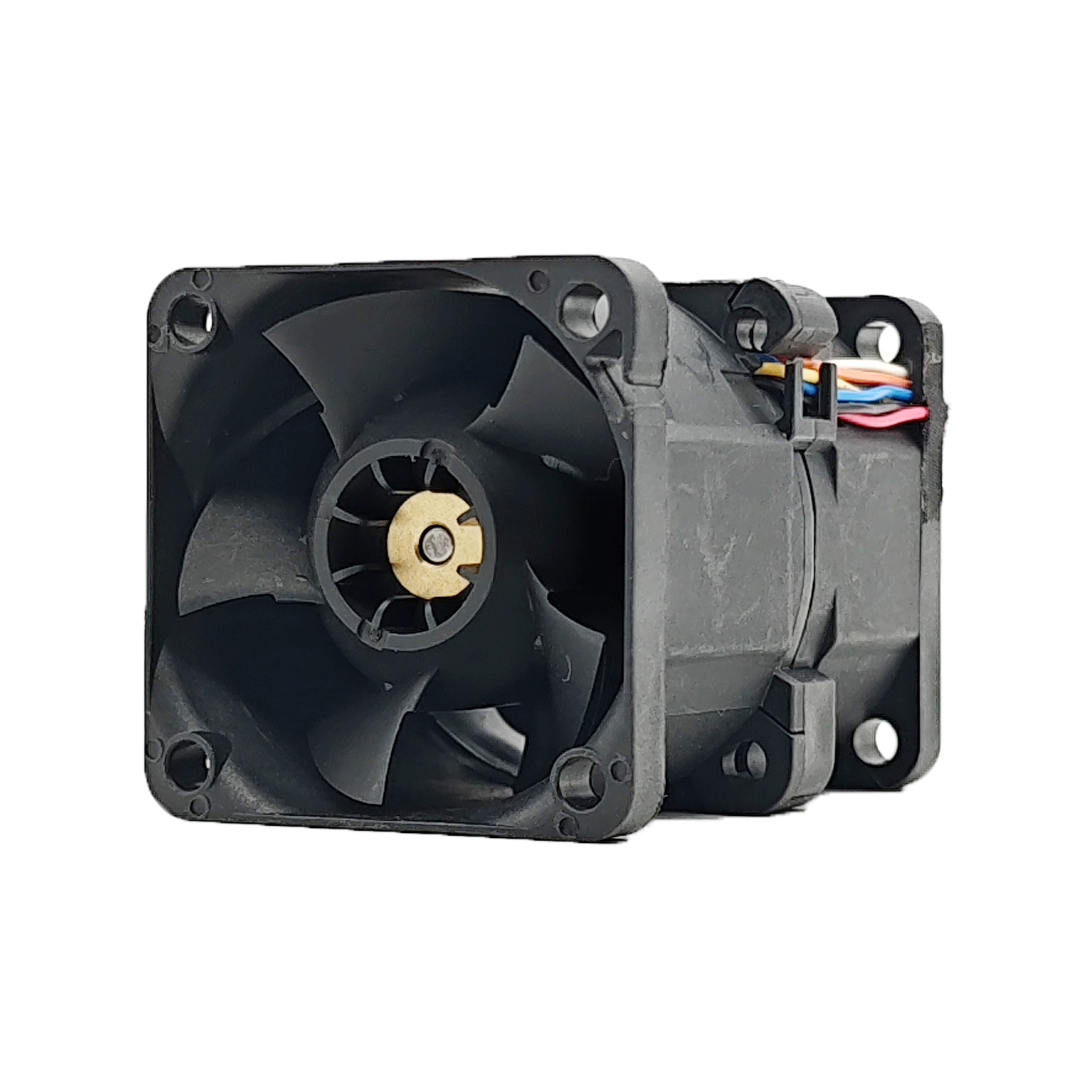

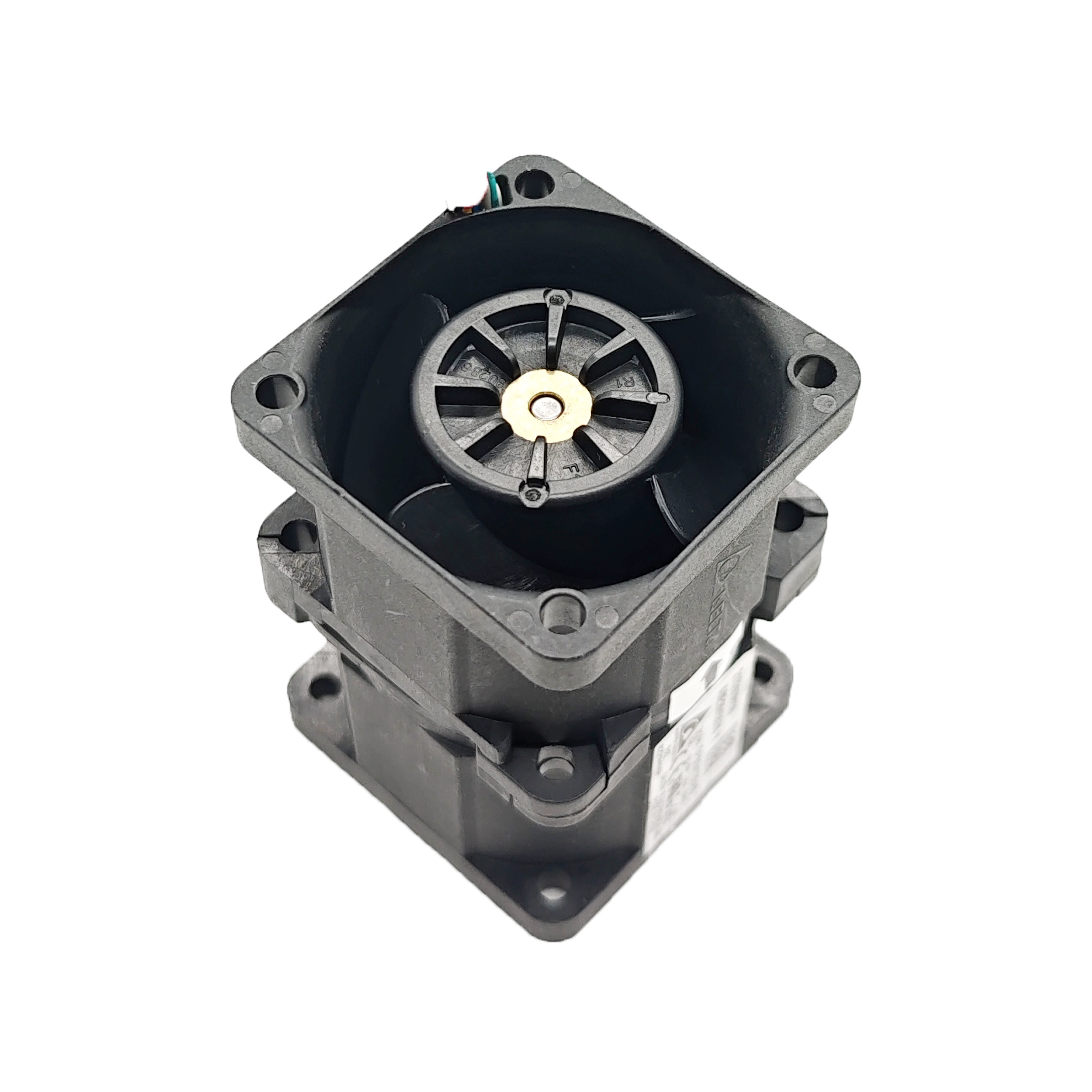

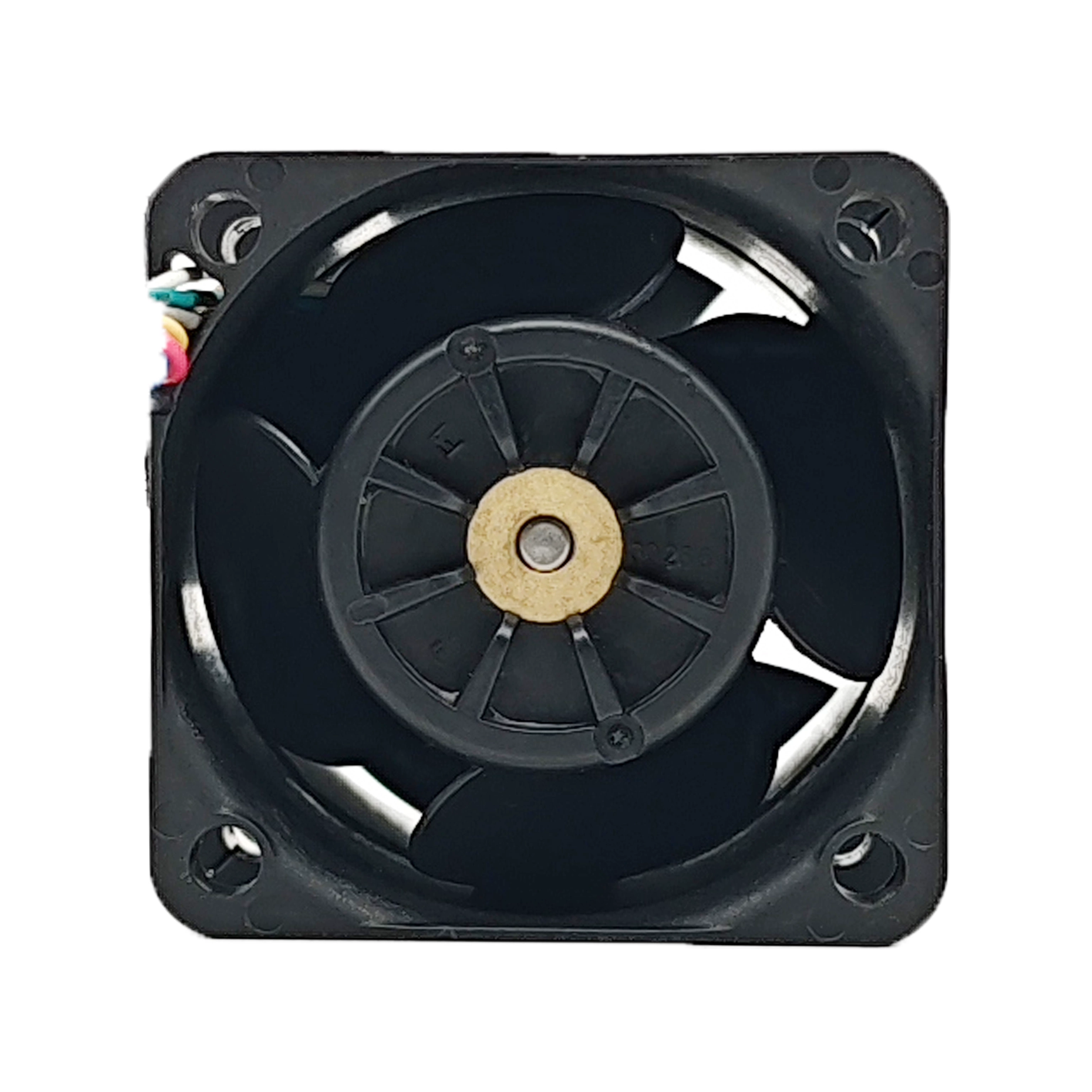

The Delta GFC0412DS-SM06 is a DC axial fan measuring 40x40x56mm. It operates on 12 VDC, drawing 2.80 A of current, with a power consumption of 27.24 W. This fan achieves a speed of 23000 RPM, providing an airflow of 37.6 CFM. The noise level is 69 dB(A). It weighs 83 g. It features ball bearings and 8-wire termination, with features like PWM control and speed sensor (Tachometer). This fan is often used in servers and other high-performance cooling applications due to its high airflow and static pressure capabilities.
GFC0412DS-SM06 Fan Parameters
Model: GFC0412DS-SM06
Manufacturer: Delta Electronics
Type: DC Axial Fan

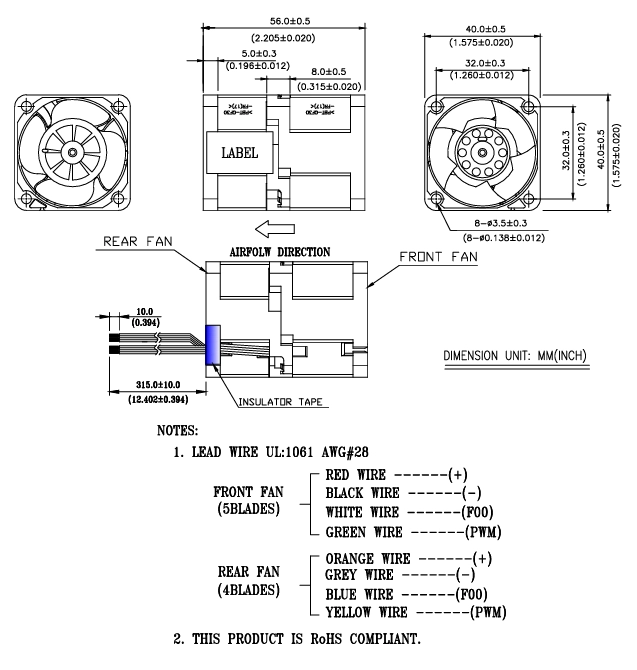

Dimensions: 40x40x56 mm
Rated Voltage: 12 VDC
Rated Current: 2.80 A
Power Consumption: 27.24 W
Speed: 23000 RPM
Airflow: 37.6 CFM

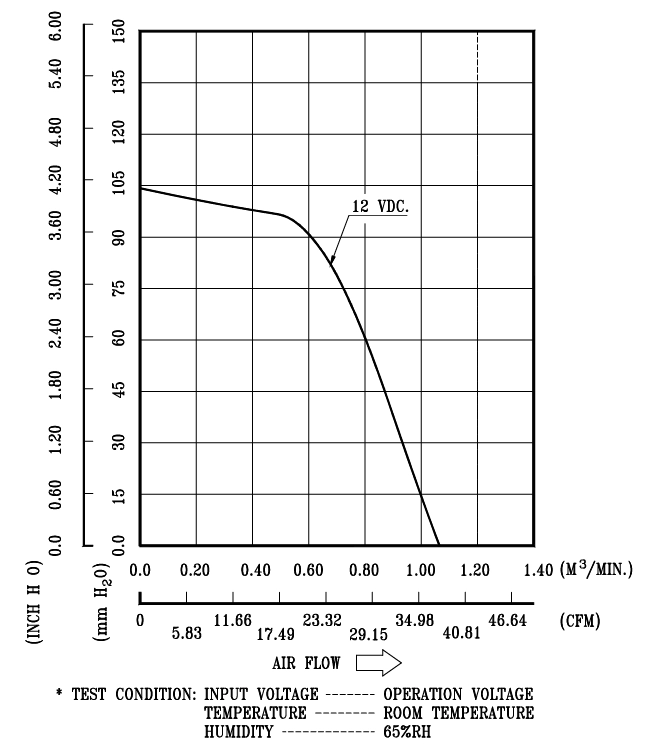

Static Pressure: 4.110 inch H2O
Noise Level: 69 dB(A)
Bearing Type: Ball Bearing
Termination: 8 lead wires
Features: PWM Control, Speed Sensor (Tachometer), Locked Rotor Protection
Operating Temperature: -10 to 60°C
Lifetime: 70000 Hrs at 40°C
Application: Server cooling, high-performance electronic equipment.
