Description

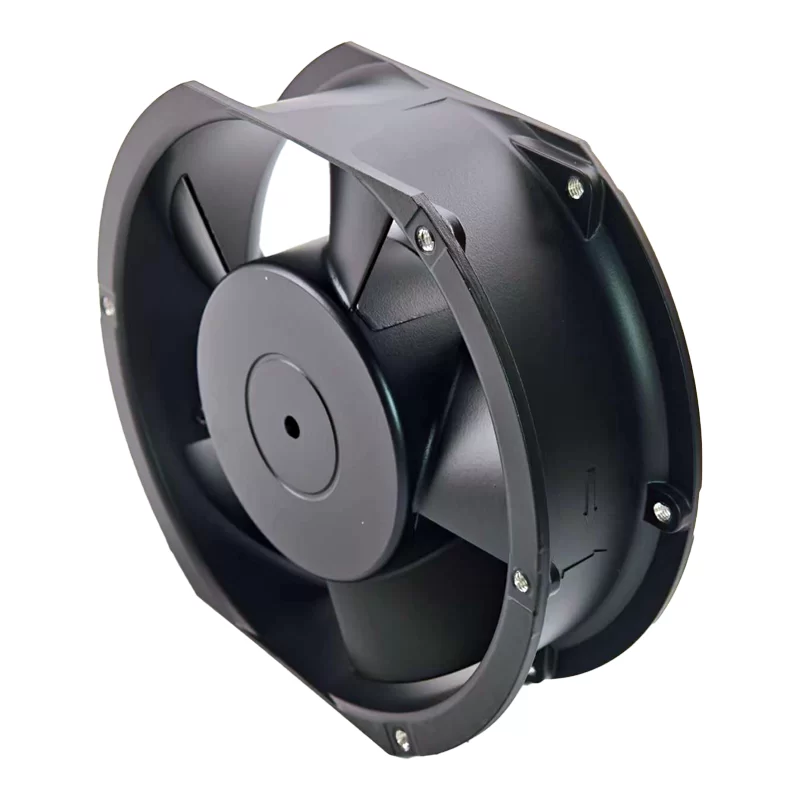

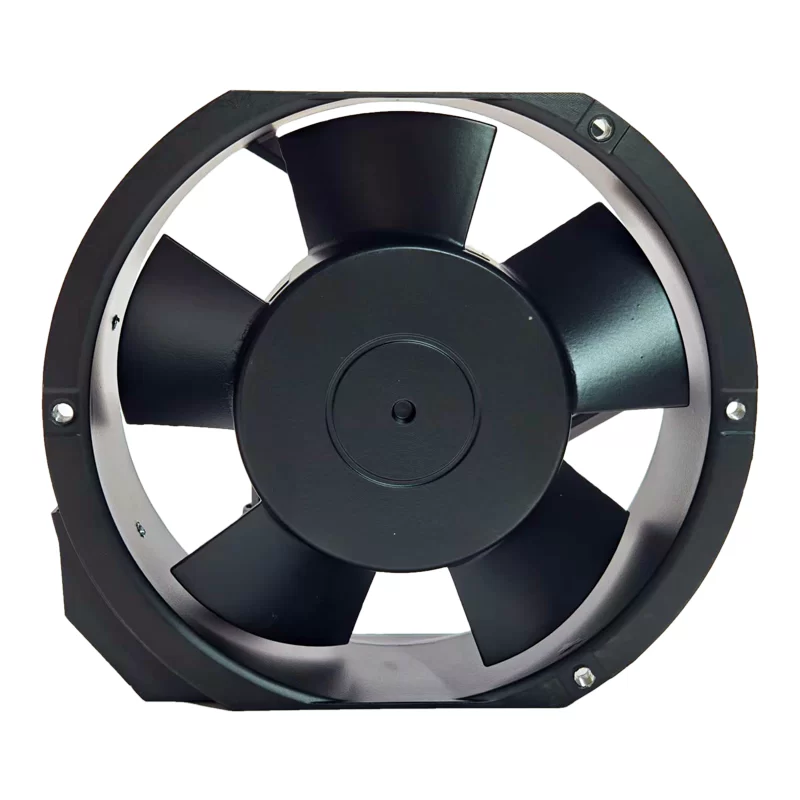

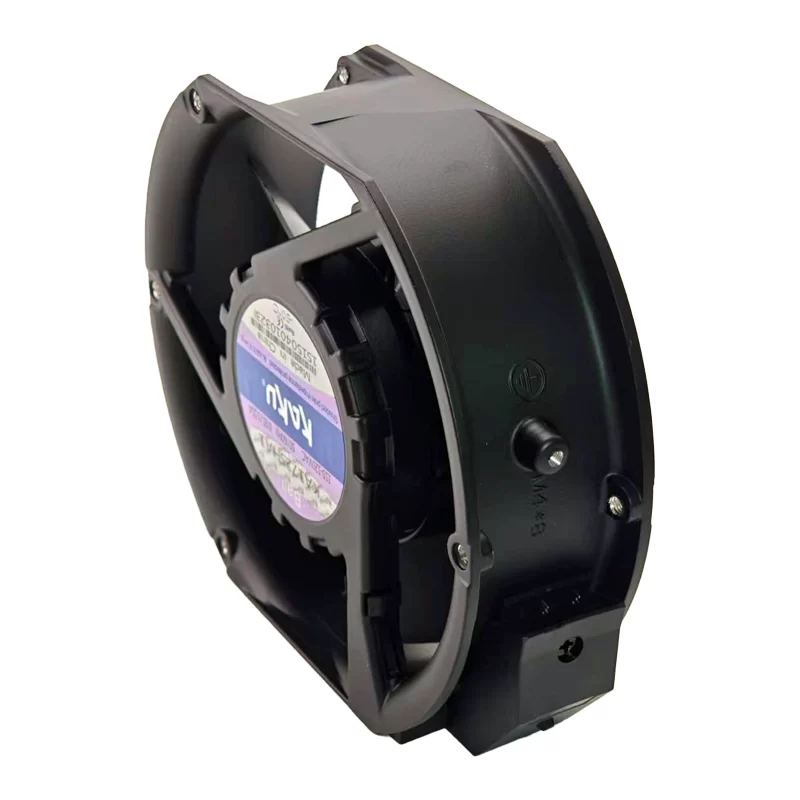

The KAKU KA1725HA1 is an AC axial fan measuring 172x150x51mm. It operates on 110-120 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.65 A of current at 50 Hz and 0.55 A at 60 Hz. Power consumption is 74.8 W at 50 Hz and 63.3 W at 60 Hz. This fan achieves a speed of 2800 RPM at 50 Hz and 3000 RPM at 60 Hz, providing an airflow of 194.6 CFM at 50 Hz and 218.2 CFM at 60 Hz, with a static pressure of 0.31 in H2O at 50 Hz and 0.51 in H2O at 60 Hz. The noise level is 52.3 dB(A). It is equipped with ball bearings for durable operation and features 2-wire terminals or leads. Constructed with an aluminum frame and steel or magnesium impeller, it is designed for cooling industrial cabinets and various electronic equipment.
KA1725HA1 Fan Parameters
Model: KA1725HA1
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 172x150x51 mm
Rated Voltage: 110-120 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.65 A / 0.55 A
Power Consumption (50Hz / 60Hz): 74.8 W / 63.3 W
Speed (50Hz / 60Hz): 2800 RPM / 3000 RPM
Airflow (50Hz / 60Hz): 194.6 CFM / 218.2 CFM
Static Pressure (50Hz / 60Hz): 0.31 in H2O / 0.51 in H2O
Noise Level: 52.3 dB(A)
Bearing Type: Ball Bearing
Weight: 0.805 kg
Frame Material: Die-cast aluminum
Impeller Material: Steel or Magnesium
Operating Temperature: -40°C to +80°C
Life Expectancy: 50,000 hours
Motor Protection: Shaded pole impedance protection
Approval Agency: UL, CE
Application: Industrial cabinets, electronic equipment cooling, ventilation.
