KA2060HA2 KAKU card 220-240V 0.26A waterproof fan

Description

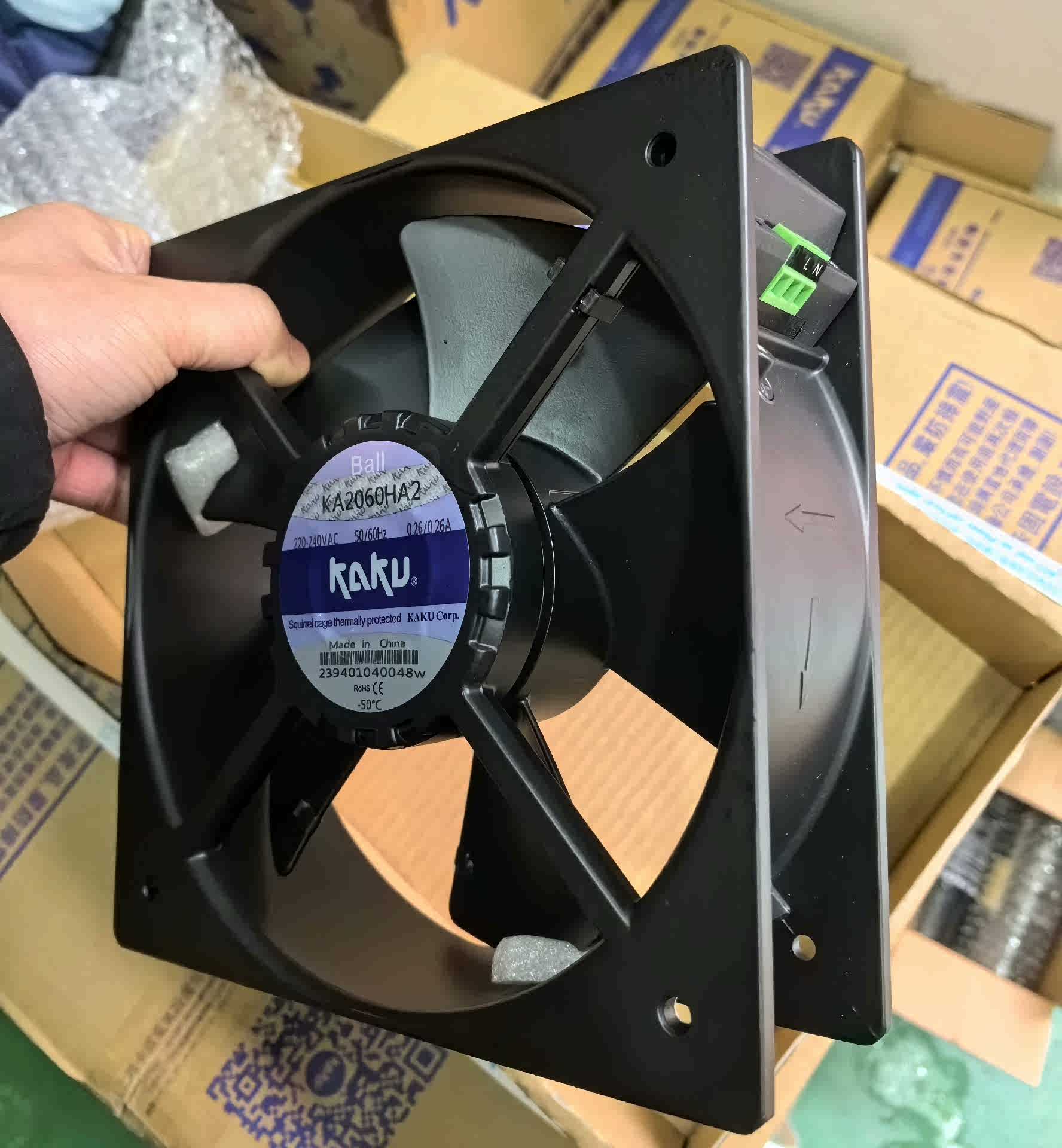

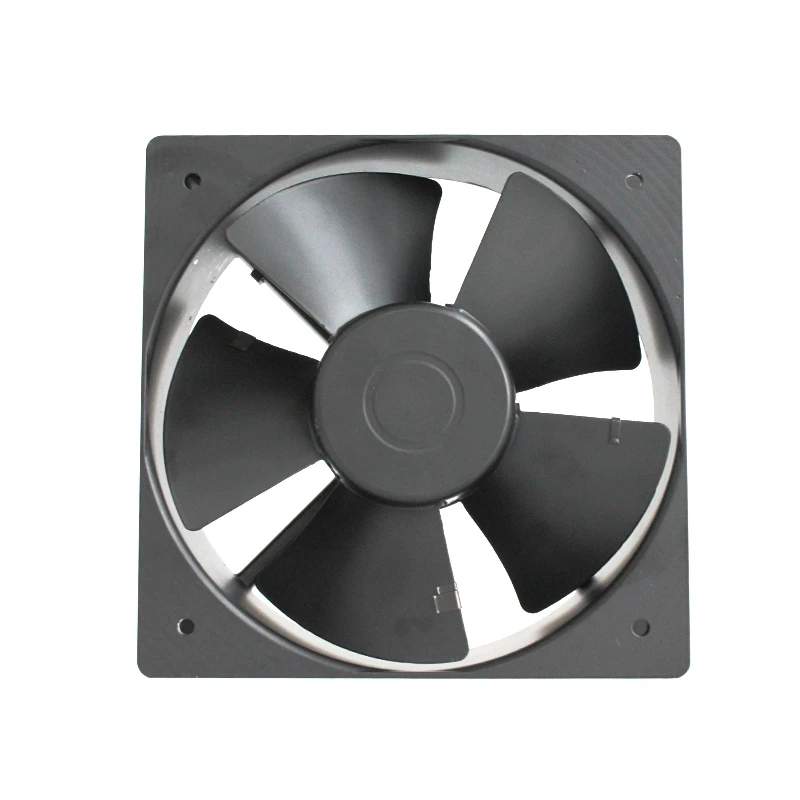

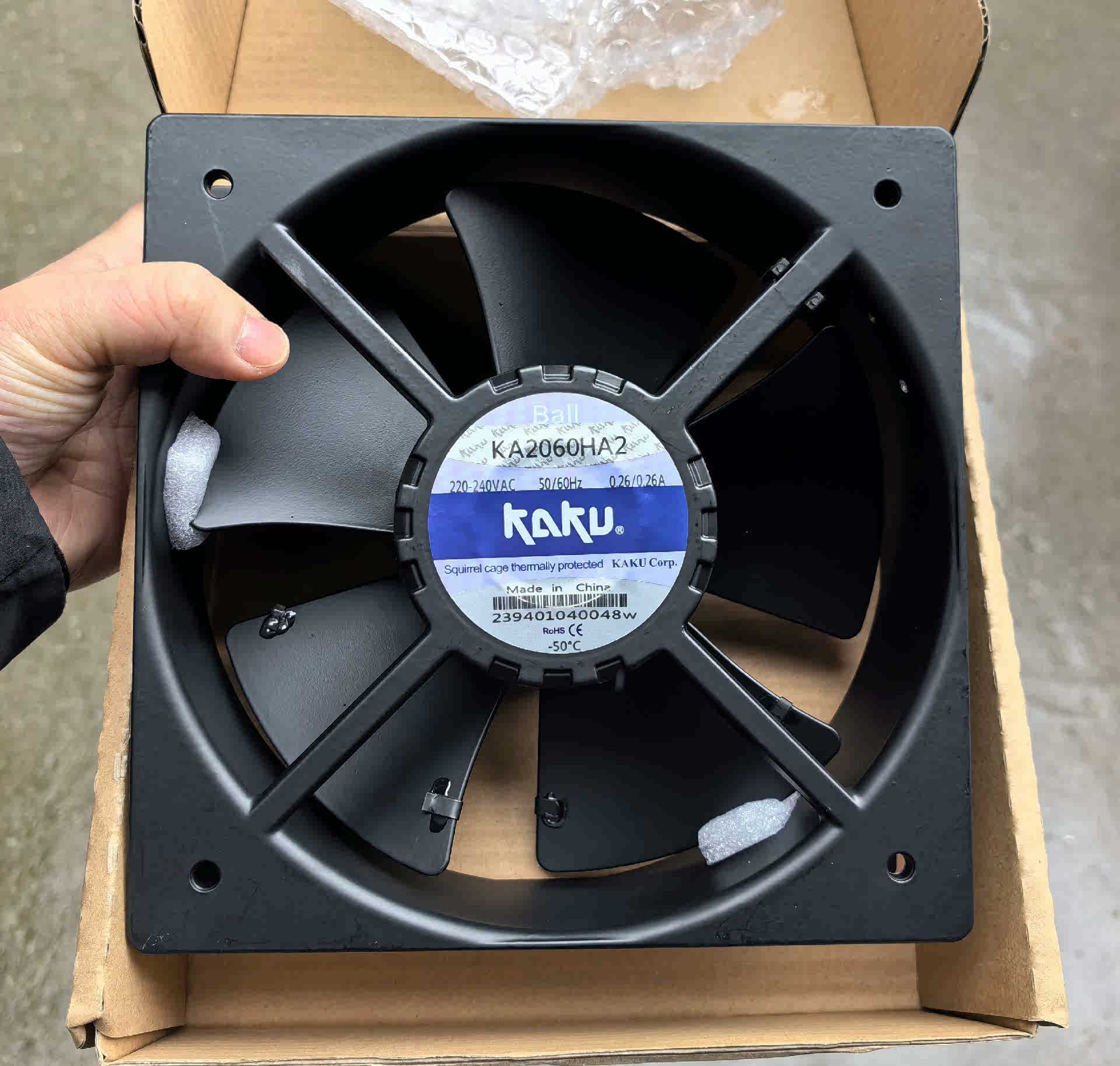

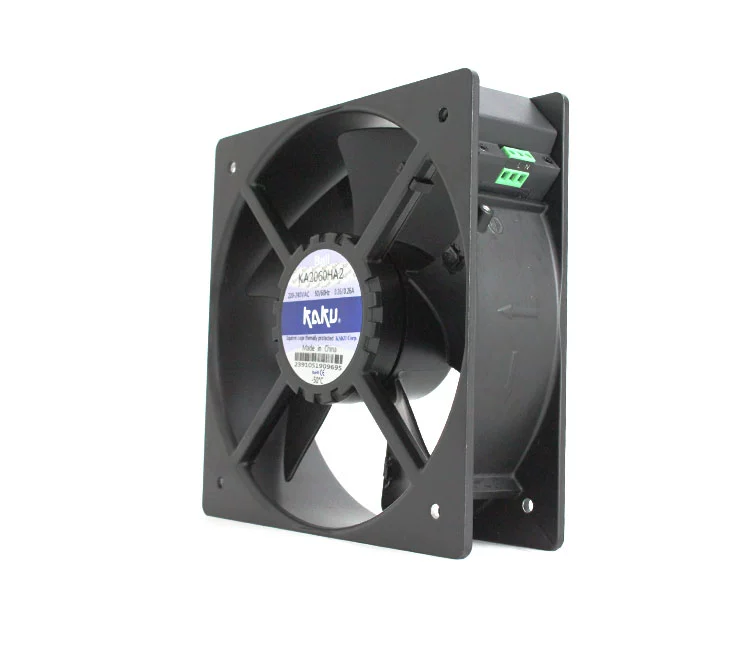

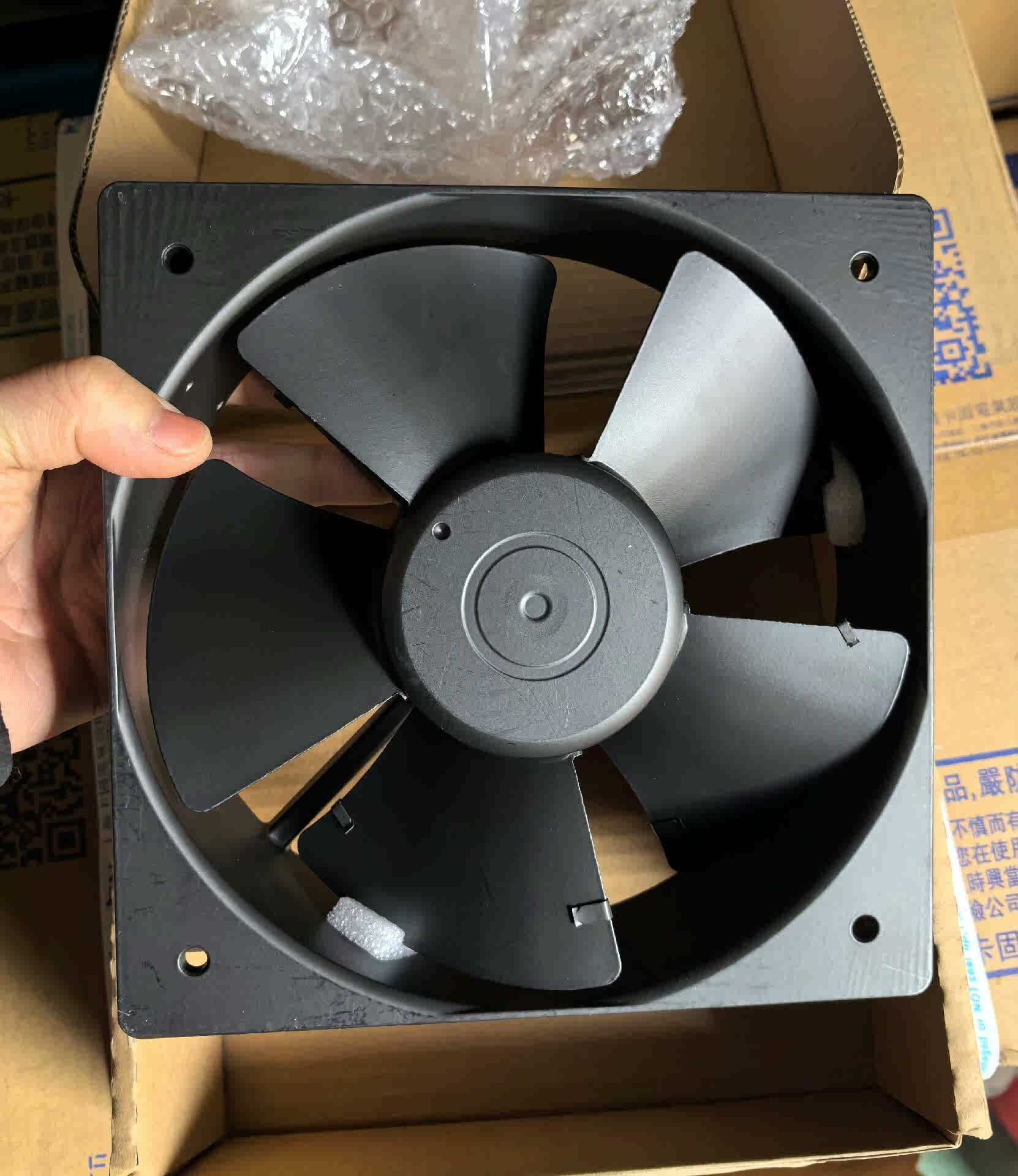

KA2060HA2 original genuine KAKU card 220-240V 0.26A waterproof cooling fan
The KAKU KA2060HA2 is an AC axial fan measuring 200x200x60mm. It operates on 220-240 VAC at 50/60 Hz frequencies, drawing 0.26 A of current. Power consumption is typically 38 W at 50 Hz and 40 W at 60 Hz. This fan achieves a speed of 2800 RPM at 50 Hz and 3200 RPM at 60 Hz, providing an airflow of 400 CFM at 50 Hz and 425 CFM at 60 Hz, with a noise level of 60 dB(A) at 50 Hz and 65 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and features 2-wire leads. Constructed with an aluminum frame and plastic impeller, it is designed for high-volume air movement in industrial equipment, control cabinets, and various cooling applications.

KA2060HA2 Fan Parameters
Model: KA2060HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 200x200x60 mm
Rated Voltage: 220-240 VAC
Operating Voltage Range: Not specified
Frequency: 50 Hz / 60 Hz
Rated Current: 0.26 A
Power Consumption (50Hz / 60Hz): 38 W / 40 W
Speed (50Hz / 60Hz): 2800 RPM / 3200 RPM
Airflow (50Hz / 60Hz): 400 CFM / 425 CFM
Static Pressure: Not specified
Noise Level (50Hz / 60Hz): 60 dB(A) / 65 dB(A)
Bearing Type: Ball Bearing (Dual Ball Bearing often specified)
Termination: 2-wire leads
Weight: Not specified
Frame Material: Die-cast aluminum
Impeller Material: Plastic
Operating Temperature: -15°C to +70°C (for Topfan MX20060ABH22)
Life Expectancy: 50,000 to 100,000 hours (for ball bearing)
Motor Protection: Impedance Protected (often for similar models)
Approval Agency: CE, RoHS
Application: Industrial equipment, control cabinet cooling, power supply units, ventilation systems.
