Description

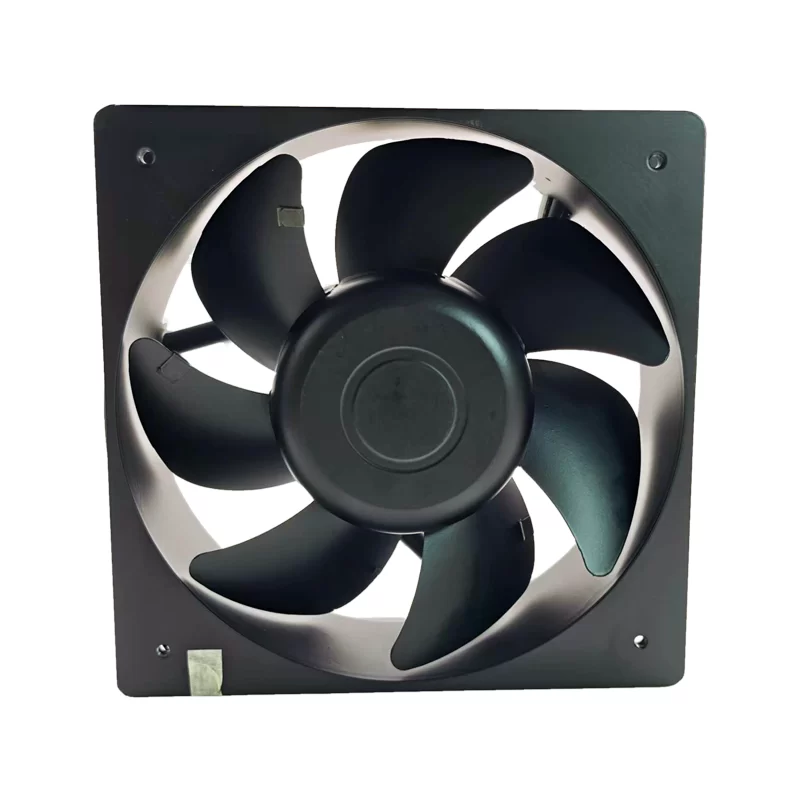

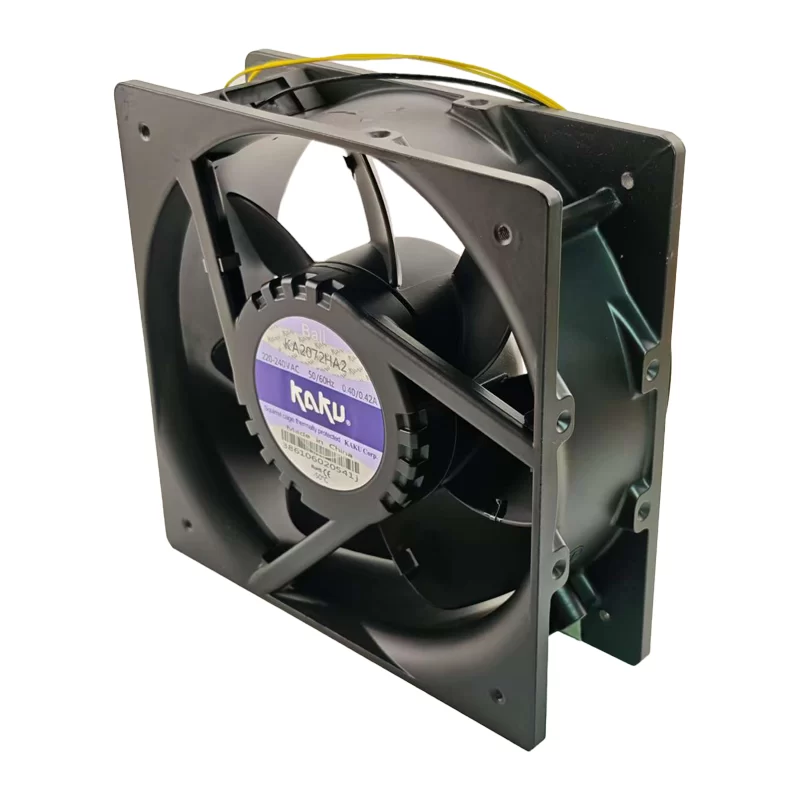

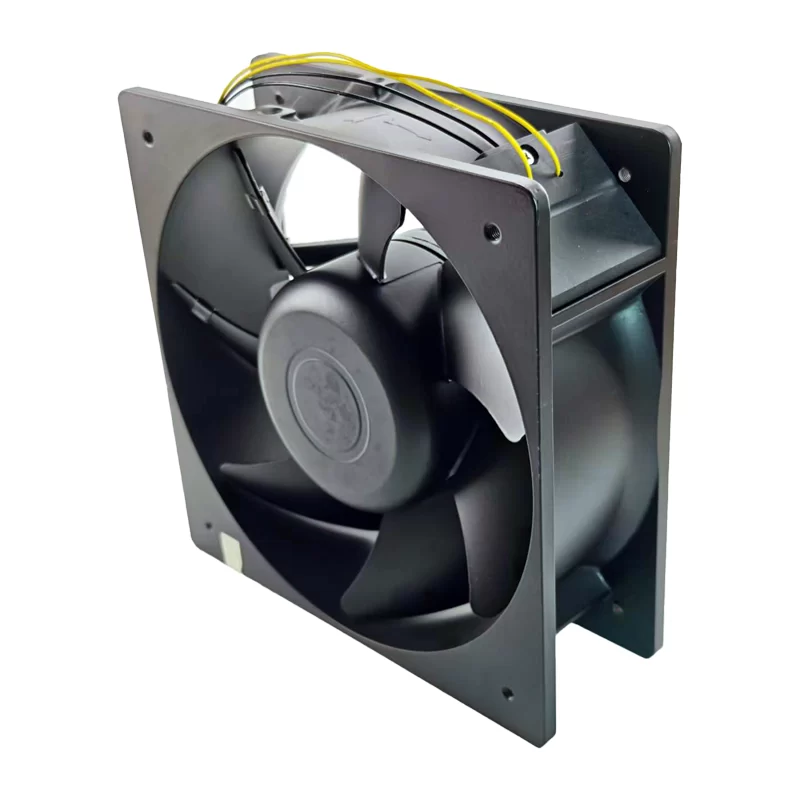

he KAKU KA2072HA2 is an AC axial fan measuring 205x205x72mm. It operates on 220-240 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.40 A of current at 50 Hz and 0.42 A at 60 Hz. Power consumption is 92 W at 50 Hz and 97 W at 60 Hz. This fan achieves a speed of 2900 RPM at 50 Hz and 3300 RPM at 60 Hz, providing a high airflow of 850 CFM at 50 Hz and 930 CFM at 60 Hz. The noise level ranges from 69 dB(A) at 50 Hz to 72 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and commonly features 2-wire termination. Constructed with an aluminum or magnesium alloy frame and impeller, it is often designed for high temperature resistance, making it suitable for server cabinets, power electronics, and industrial cooling.
KA2072HA2 Fan Parameters
Model: KA2072HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 205x205x72 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.40 A / 0.42 A
Power Consumption (50Hz / 60Hz): 92 W / 97 W
Speed (50Hz / 60Hz): 2900 RPM / 3300 RPM
Airflow (50Hz / 60Hz): 850 CFM / 930 CFM
Static Pressure: 0.86 in H2O
Noise Level (50Hz / 60Hz): 69 dB(A) / 72 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire leads
Weight: 2.1 kg
Frame Material: Die-cast aluminum or Magnesium alloy
Impeller Material: Metal
Operating Temperature: -10°C to +80°C
Life Expectancy: 50,000 hours
Motor Protection: Impedance Protected
Approval Agency: CE, RoHS
Application: Industrial equipment, server cabinets, power electronics, HVAC systems, high-temperature environments.
