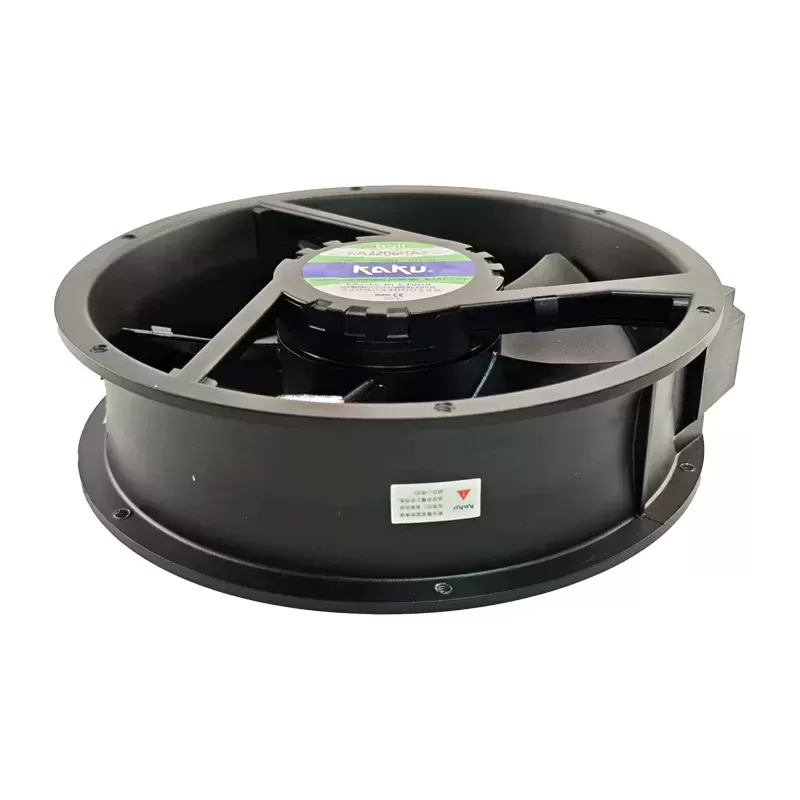

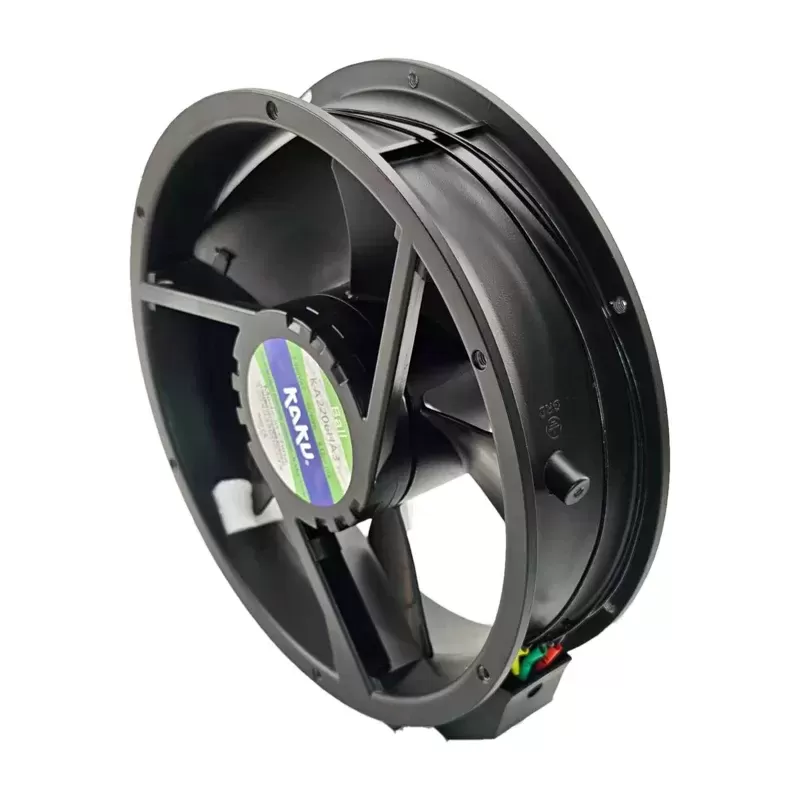

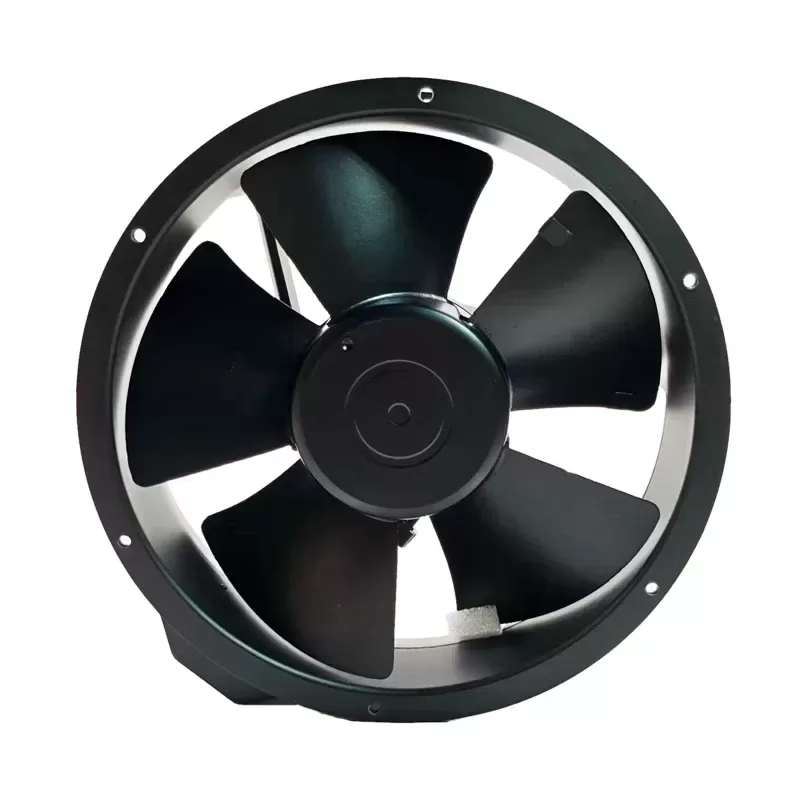

KA2206HA3 KAKU 380V AC Axial Fan

Description

The KAKU KA2206HA3 is a powerful 222x222x60mm AC axial fan designed for heavy-duty cooling in industrial electrical cabinets, power supplies, and other systems requiring robust air movement. Operating on a 380V to 400V AC (50/60Hz) three-phase power supply, this fan precisely draws 0.12A (50Hz) or 0.10A (60Hz) of current. Based on a 380V supply, this translates to a power consumption of approximately 45.6W (50Hz) or 38W (60Hz). Utilizing ball bearings, this model is built for a long operational lifetime and provides reliable performance in demanding industrial environments.

KA2206HA3 Fan Parameters
Model Number: KA2206HA3
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 222mm x 222mm x 60mm
Rated Voltage: 380-400 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.12A (50Hz) / 0.10A (60Hz)
Rated Power: 45.6 W (50Hz) / 38 W (60Hz)
Bearing Type: Ball Bearing
Frame Material: Die-cast aluminum
Blade Material: Plastic
Wiring: 3-Phase leads
Weight: 1.45 kg
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 hours
Application: Industrial electrical cabinets, power supplies, welding machines, general industrial cooling.
