Description

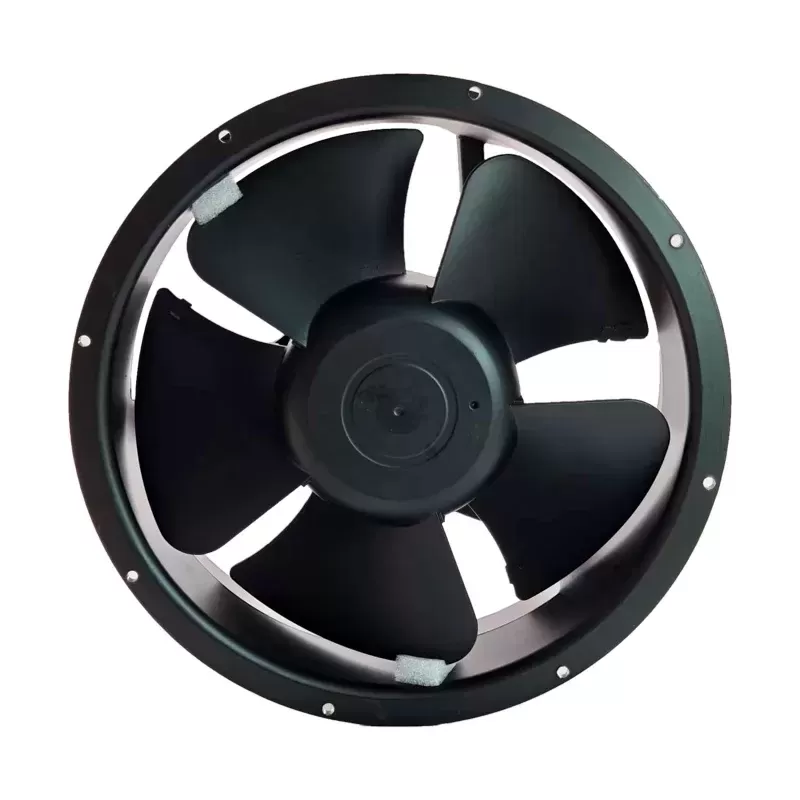

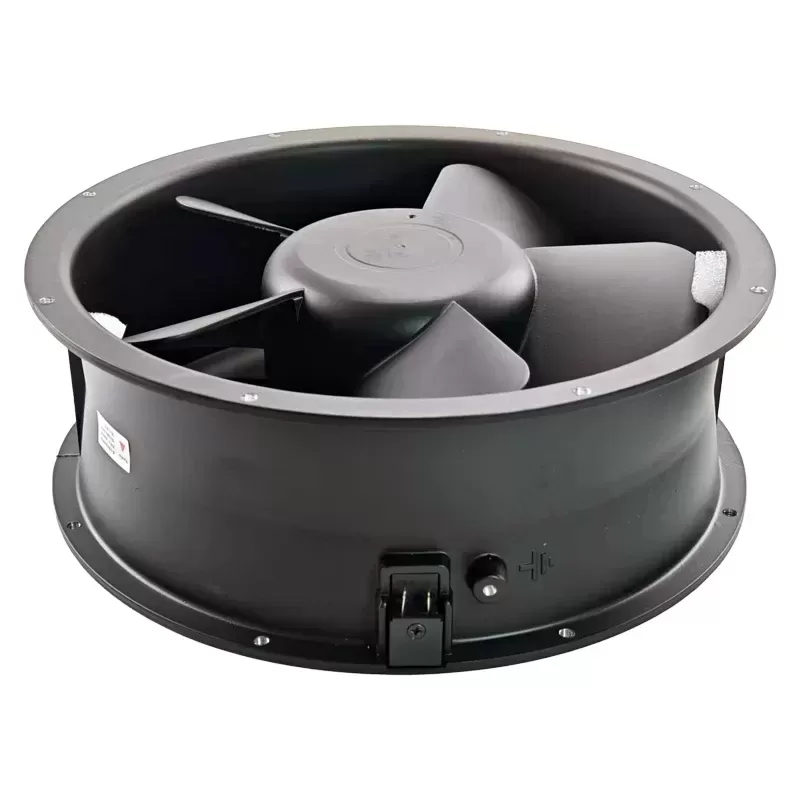

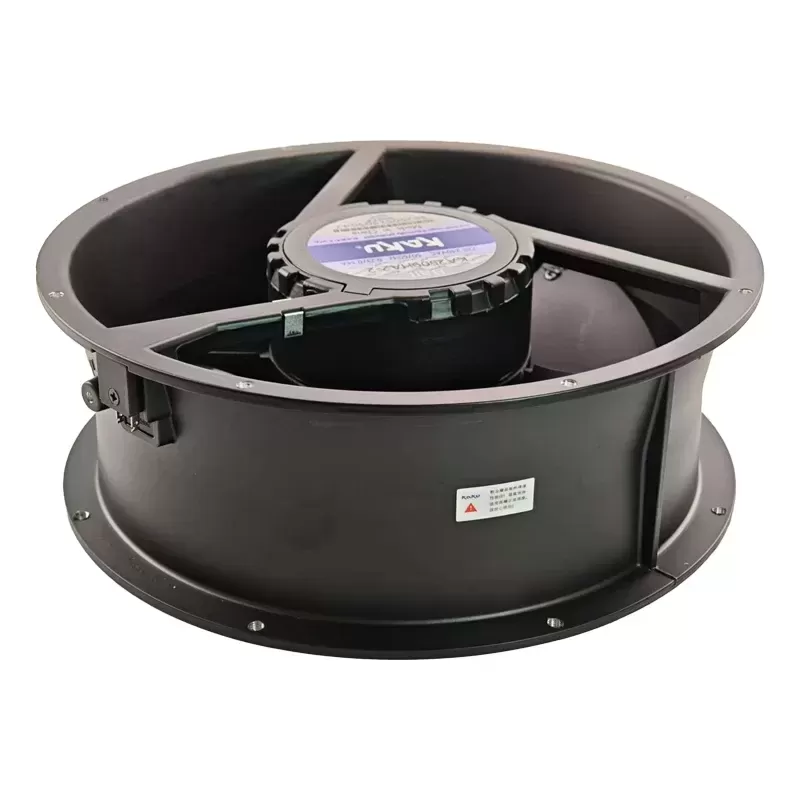

The KAKU KA2509HA2-2 is a robust 254x254x89mm AC axial fan engineered for efficient cabinet cooling and general ventilation in demanding industrial settings. Operating on a 220-240V AC (50/60Hz) power supply, this fan now correctly draws 0.23A (50Hz) or 0.34A (60Hz), consuming approximately 52.9W (50Hz) or 78.2W (60Hz). It achieves a consistent rotational speed of around 2500 RPM. Featuring reliable ball bearings and an all-metal construction, this model is built for enhanced durability and sustained performance. It is CE certified, ensuring compliance with relevant safety and quality standards for diverse industrial applications.
KA2509HA2-2 Fan Parameters
Model Number: KA2509HA2-2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 254mm x 254mm x 89mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.23A (50Hz) / 0.34A (60Hz)
Rated Power: 52.9 W (50Hz) / 78.2 W (60Hz)
Speed: 2500 RPM
Bearing Type: Ball Bearing
Material: All Metal
Certification: CE
Application: Cabinet cooling, industrial ventilation.
