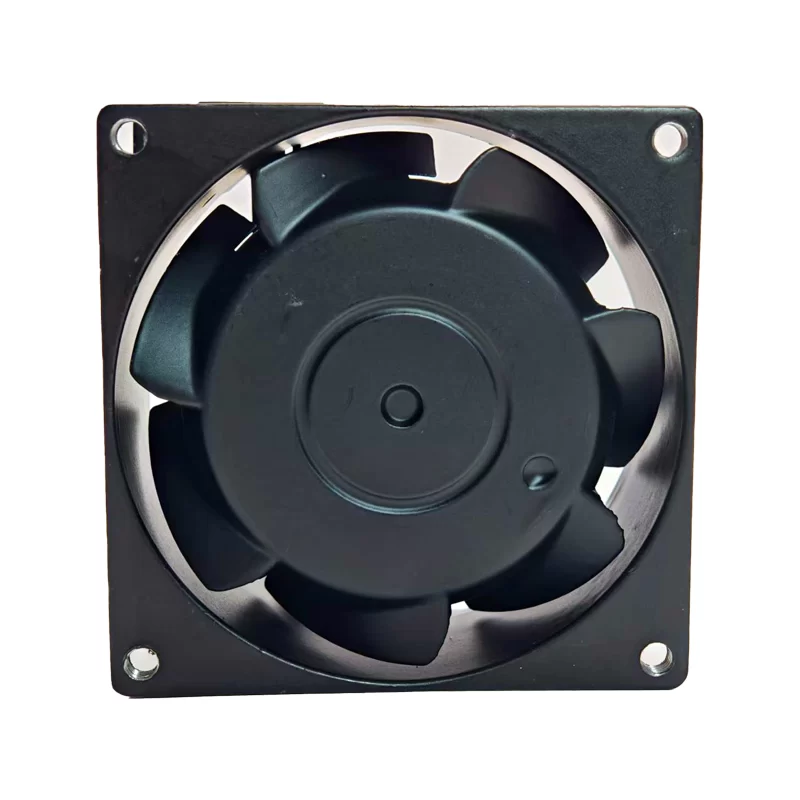

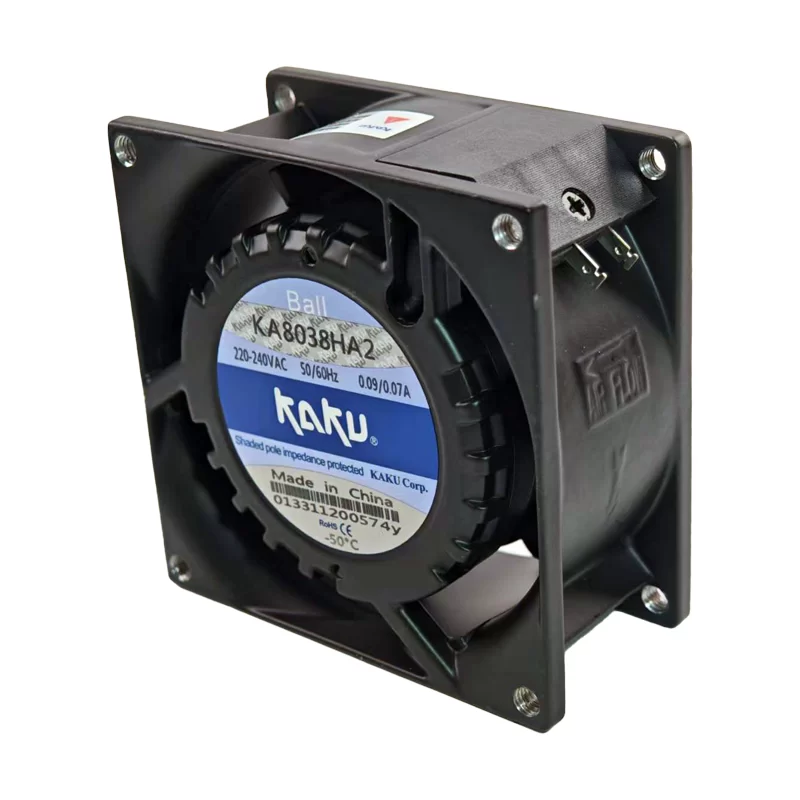

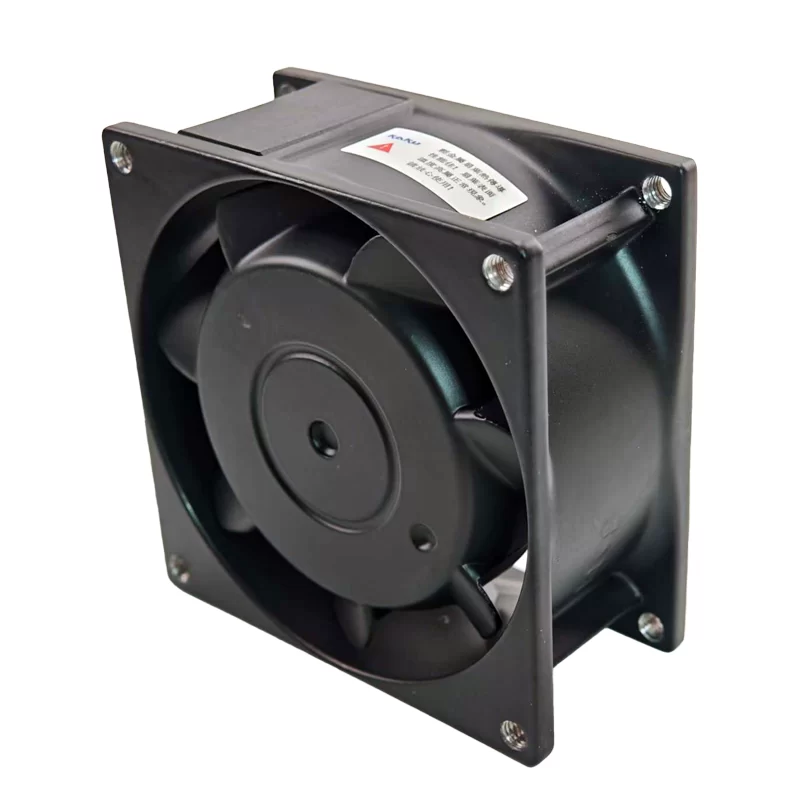

KA8038HA2 KAKU 220-240V AC Axial Fan

Description

The KAKU KA8038HA2 is a compact and efficient 220-240VAC Axial Fan measuring 80x80x38mm, designed for various cooling and ventilation needs. This fan operates across 50Hz and 60Hz frequencies. At 50Hz, it draws 0.09A of current, achieving a speed of 2300RPM to deliver 40.776m³/h (24CFM) of airflow with 32.35Pa (0.13INH2O) of static pressure, at a noise level of 30dB(A). At 60Hz, its performance includes a current draw of 0.07A, reaching a speed of 2800RPM and providing 52.618m³/h (31CFM) of airflow with 42.3Pa (0.17INH2O) of static pressure, at a noise level of 32dB(A). Weighing 260g, this fan is suitable for applications requiring reliable airflow in a compact form factor.

KA8038HA2 Fan Parameters
Model: KA8038HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 220-240 V AC
Frequency: 50/60 Hz
Rated Current (50/60 Hz): 0.09 A / 0.07 A
Speed (50/60 Hz): 2300 RPM / 2800 RPM
Airflow (50/60 Hz): 40.776 m³/h (24 CFM) / 52.618 m³/h (31 CFM)
Static Pressure (50/60 Hz): 32.35 Pa (0.13 IN H2O) / 42.3 Pa (0.17 IN H2O)
Noise Level (50/60 Hz): 30 dB(A) / 32 dB(A)
Weight: 260 g
Application: General cooling and ventilation applications.
