Description

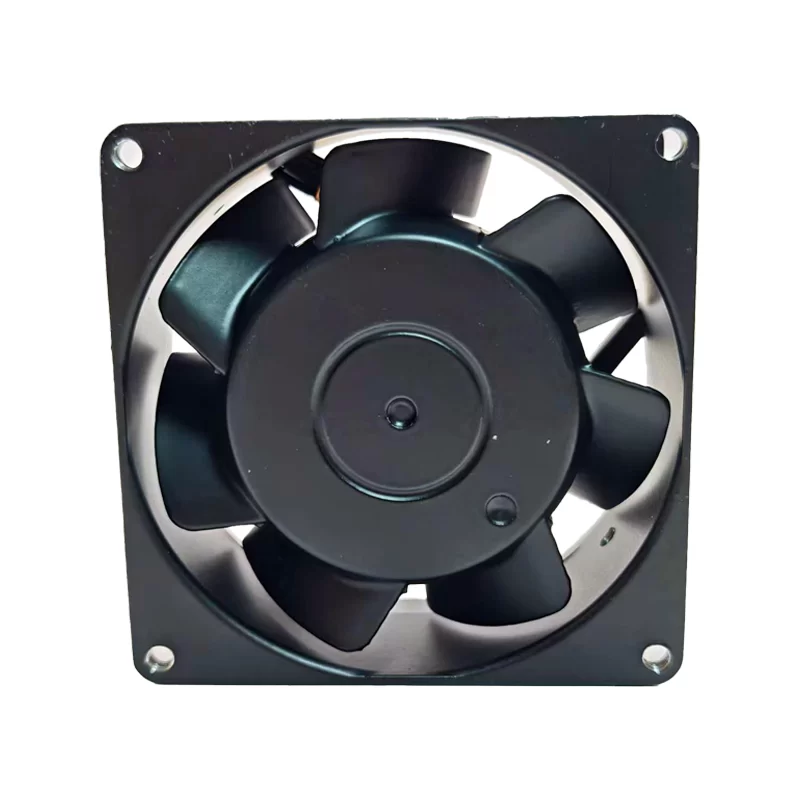

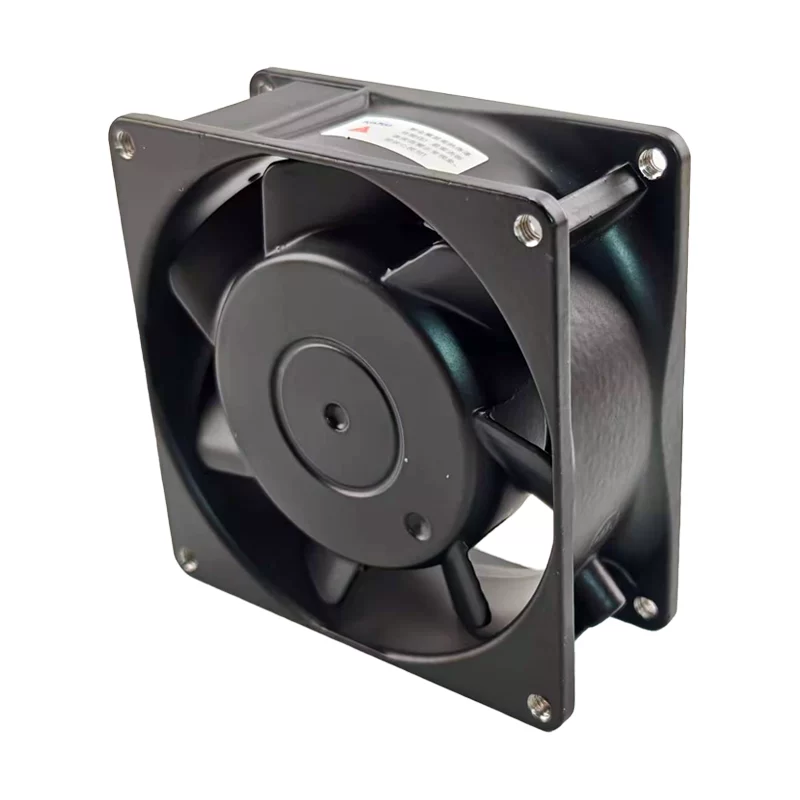

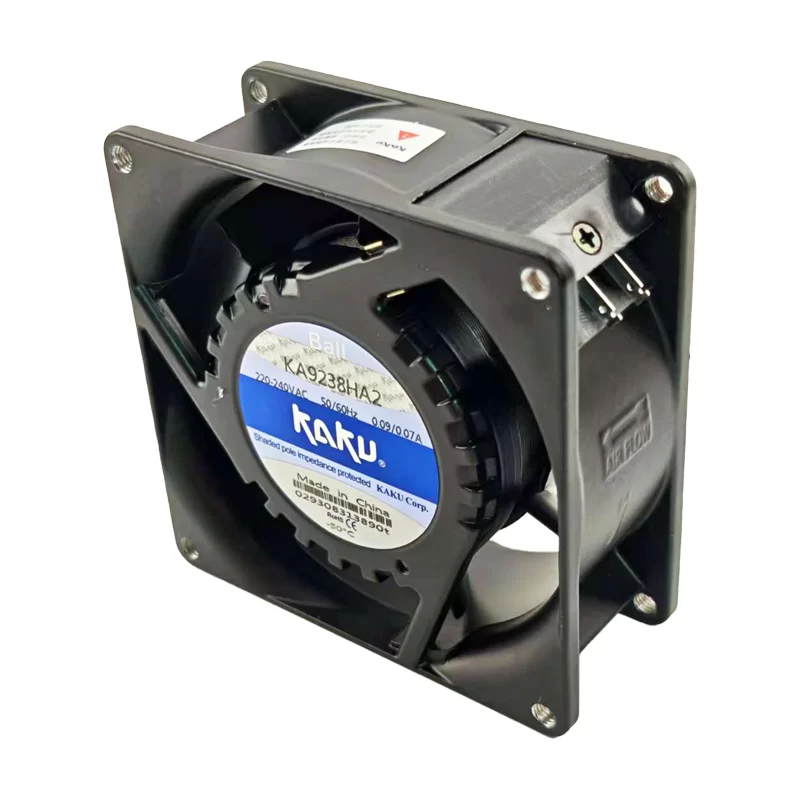

The KAKU KA9238HA2 is an AC axial fan measuring 92x92x38mm. It operates on 220-240 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.08 A of current at 50 Hz and 0.07 A at 60 Hz. Power consumption is 14 W at 50 Hz and 13 W at 60 Hz. This fan achieves a speed of 2500 RPM at 50 Hz and 3000 RPM at 60 Hz, providing an airflow of 40 CFM at 50 Hz and 50 CFM at 60 Hz. The noise level is 37 dB(A) at 50 Hz and 41 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and features 2-pin power connection or lead wires. Constructed with a metal or plastic frame, it is suitable for cooling in various electronic components and small enclosures.
KA9238HA2 Fan Parameters
Model: KA9238HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 92x92x38 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.08 A / 0.07 A
Power Consumption (50Hz / 60Hz): 14 W / 13 W
Speed (50Hz / 60Hz): 2500 RPM / 3000 RPM
Airflow (50Hz / 60Hz): 40 CFM / 50 CFM
Noise Level (50Hz / 60Hz): 37 dB(A) / 41 dB(A)
Bearing Type: Ball Bearing
Termination: 2-pin or Lead Wire
Frame Material: Metal or Plastic
Application: Electronic components, small enclosures, general cooling.
