Description

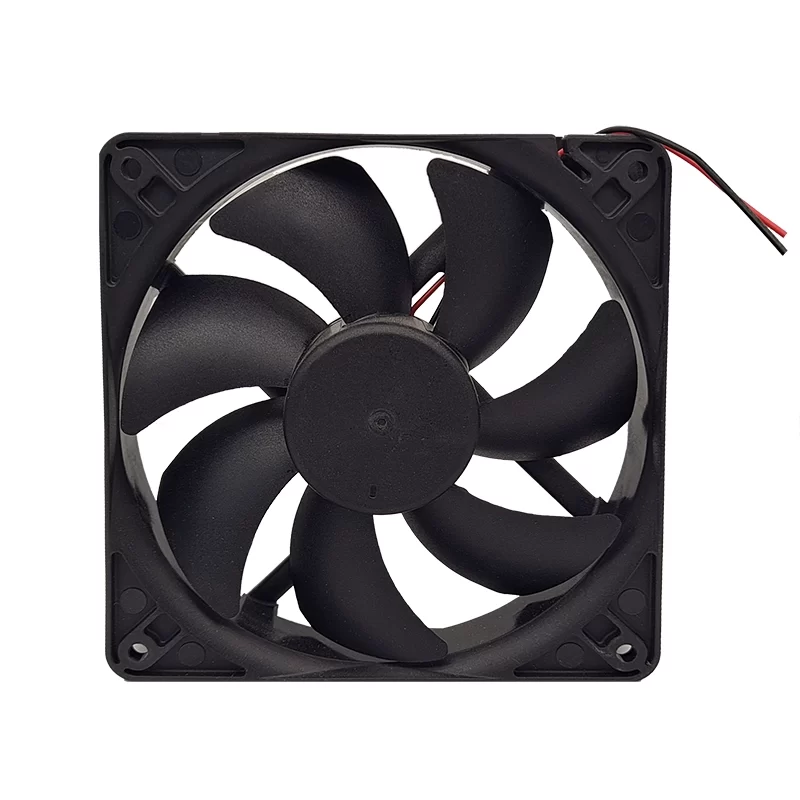

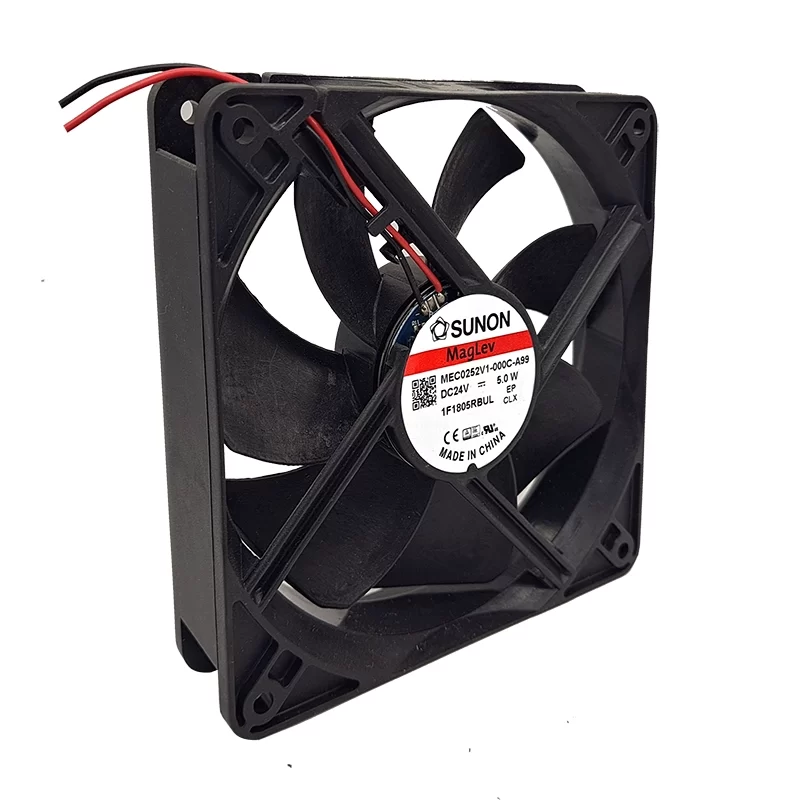

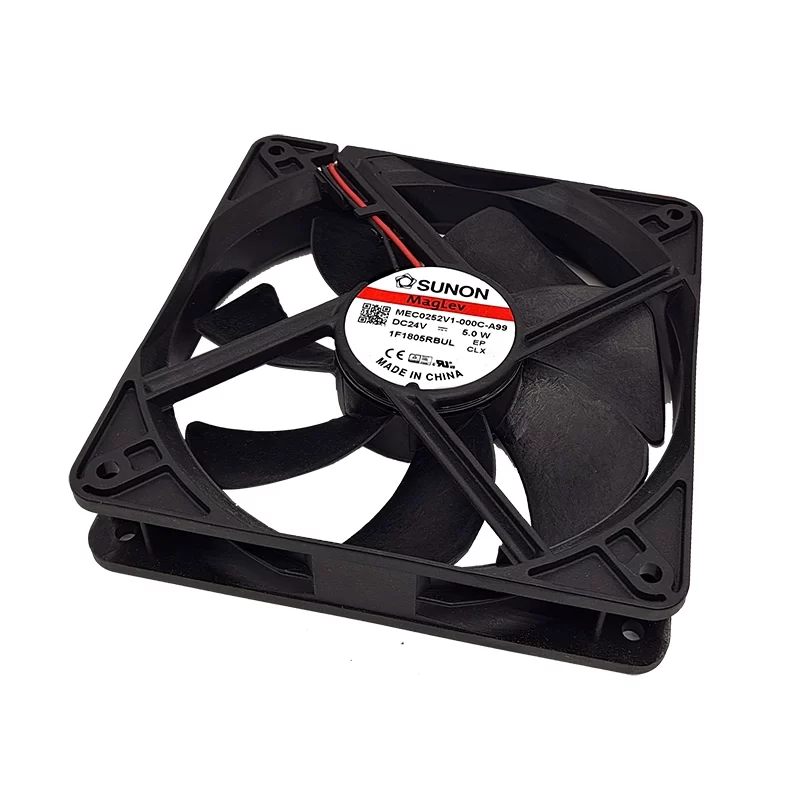

The SUNON MEC0252V1-000C-A99 is a DC axial fan measuring 120x120x25mm. It operates on 24 VDC, drawing 207 mA of current, with a power consumption of 5 W. This fan achieves a speed of 3100 RPM, providing an airflow of 184 m³/h (approximately 108.2 CFM). Its noise level is 44.5 dB(A). It features a Vapo bearing system (MagLev technology) for reliable operation, low noise, and extended life. It connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes an auto-restart function for motor protection. It is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
MEC0252V1-000C-A99 Fan Parameters
Model: MEC0252V1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 207 mA
Power Consumption: 5 W
Speed: 3100 RPM
Speed Tolerance: ±10%
Airflow: 184 m³/h (108.2 CFM)
Static Pressure: 0.28 inH2O (69.7 Pa)
Noise Level: 44.5 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 24AWG)
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity)
Motor Protection: Auto Restart
Weight: 140 g
Application: Electronic equipment, server cooling, general cooling.
