Description

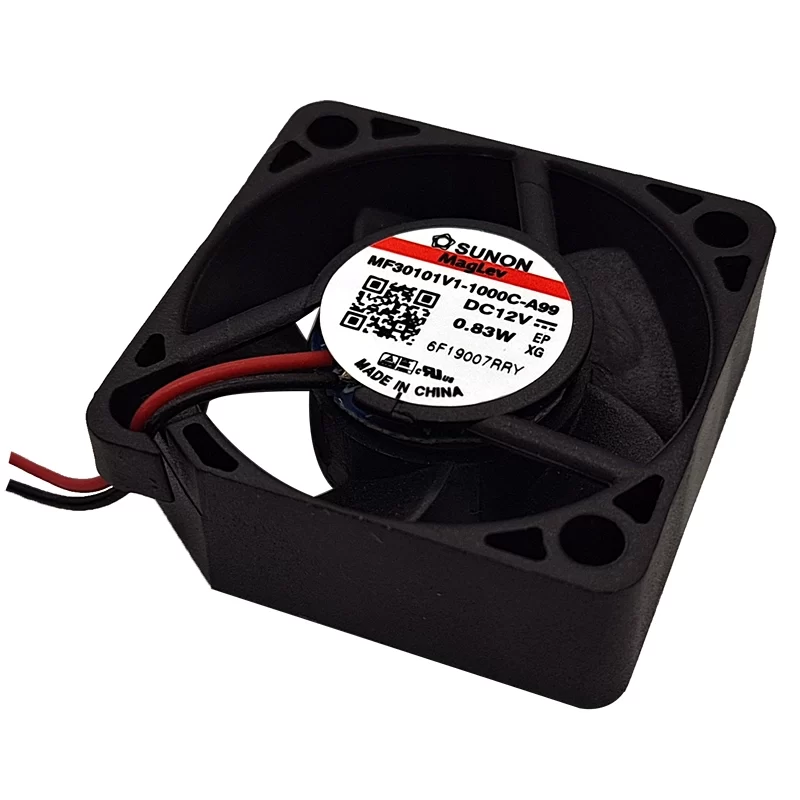

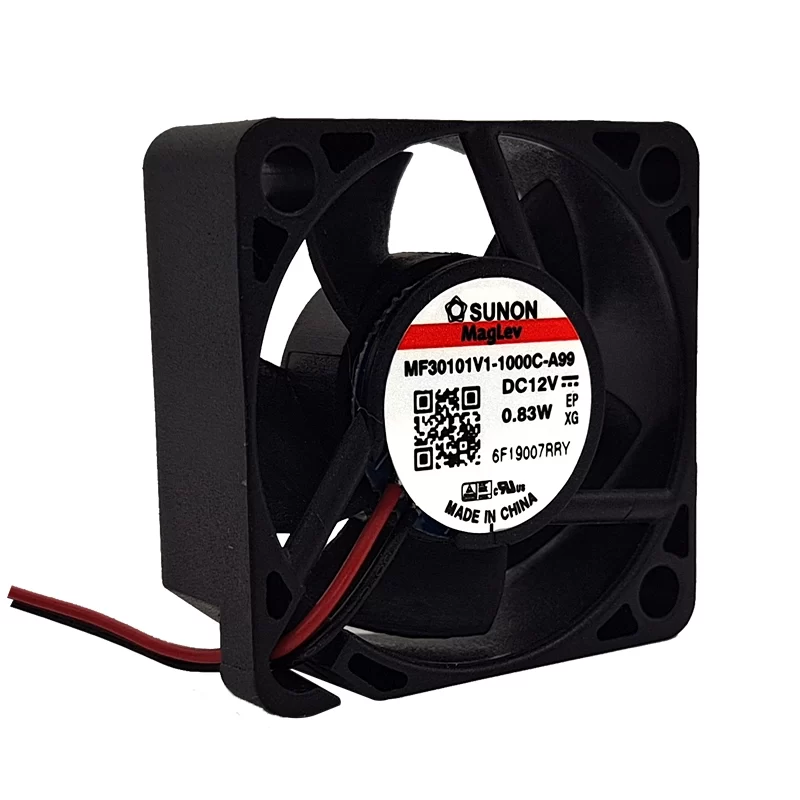

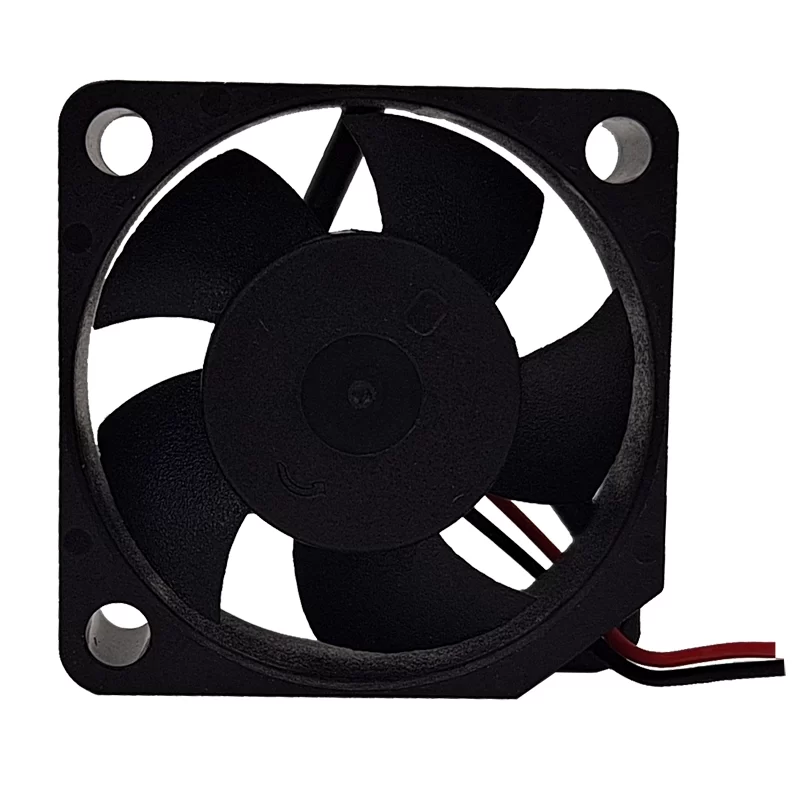

The SUNON MF30101V1-1000C-A99 is a compact DC axial fan measuring 30x30x10mm. It operates on 12 VDC, drawing 69 mA of current, with a power consumption of 0.83 W. This fan achieves a speed of 7000 RPM, providing an airflow of 4.8 CFM (approximately 8.15 m³/h). Its noise level is 25.5 dB(A). It features a precise Vapo bearing system for reliable, quiet operation and extended life, incorporating MagLev technology. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling compact electronic components, chipsets, and small enclosures where space is limited.
MF30101V1-1000C-A99 Fan Parameters
Model: MF30101V1-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 30x30x10 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 to 13.8 VDC
Rated Current: 69 mA
Power Consumption: 0.83 W
Speed: 7000 RPM
Speed Tolerance: ±15% (at rated voltage)
Airflow: 4.8 CFM (8.15 m³/h)
Static Pressure: 0.12 inH2O (29.87 Pa)
Noise Level: 25.5 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity, 90% CL)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 8.5 g
Application: Compact electronic components, chipsets, small enclosures.
