Description

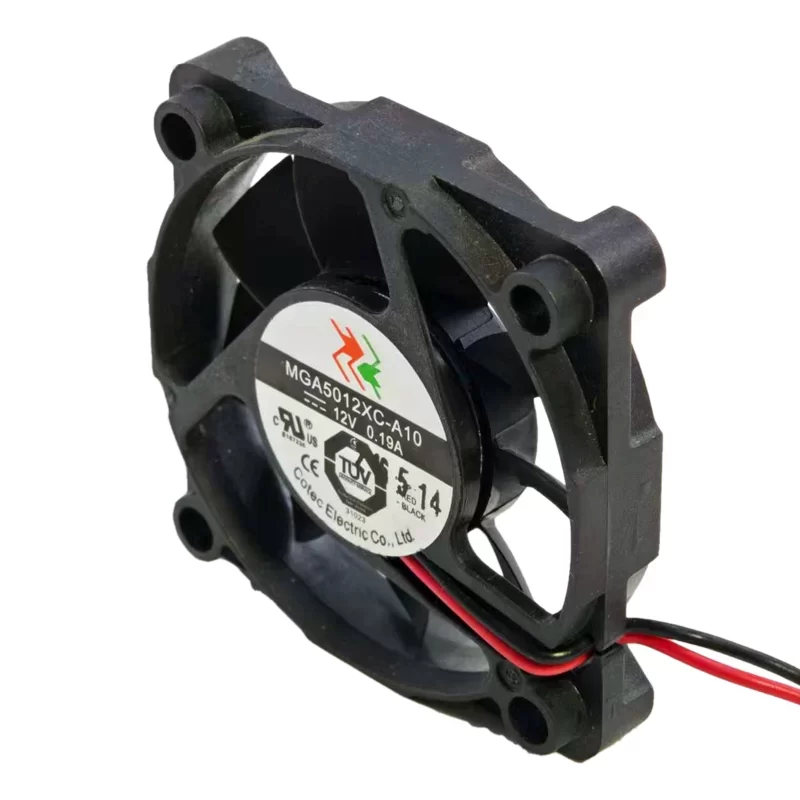

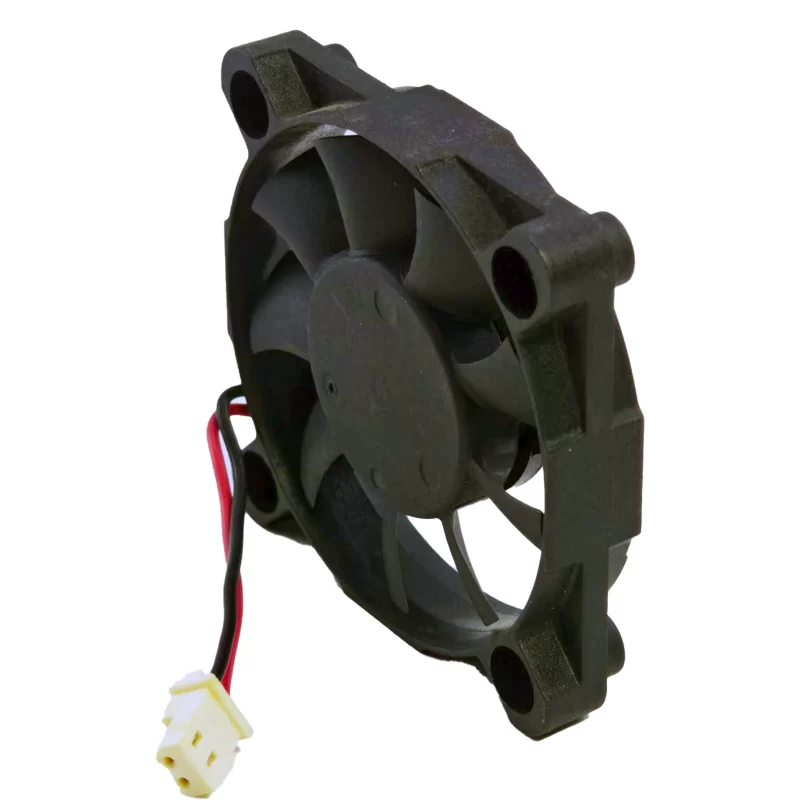

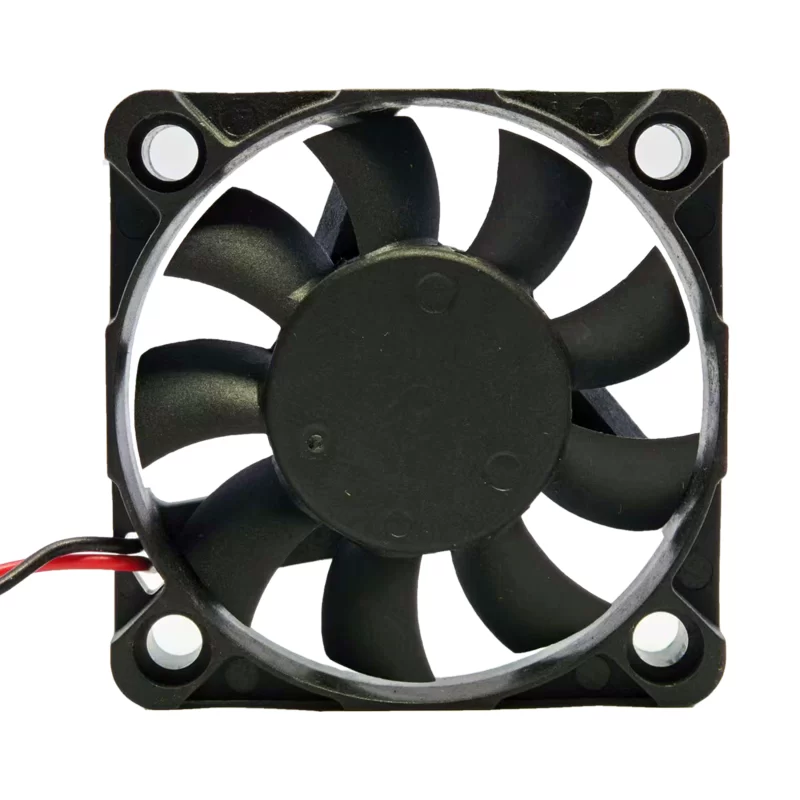

The Protechnic MGA5012XC-A10 is a DC axial fan with dimensions of 50 x 50 x 10 mm. It operates on 12V DC, drawing 0.19 A of current and consuming 2.28 W of power. This fan runs at a speed of 5600 RPM, delivering an airflow of 12.5 CFM (21.23 m³/h) with a static pressure of 0.16 inch H₂O (40 Pa). It produces a noise level of 36.5 dB(A) and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 70 °C.
MGA5012XC-A10 Fan Parameters
Manufacturer: Protechnic
Model: MGA5012XC-A10
Fan Type: DC Axial Fan
Dimensions: 50 x 50 x 10 mm
Rated Voltage: 12V DC
Current Rating: 0.19 A
Power Consumption: 2.28 W
Airflow: 12.5 CFM (21.23 m³/h)
Static Pressure: 0.16 inch H₂O (40 Pa)
Speed: 5600 RPM
Noise Level: 36.5 dB(A)
Termination: 2-Wire Leads
Operating Temperature: -10 °C to 70 °C
Application
The MGA5012XC-A10 fan is suitable for compact electronic devices, personal computers, small appliances, and embedded systems that require efficient, high-performance cooling in a slim form factor.
