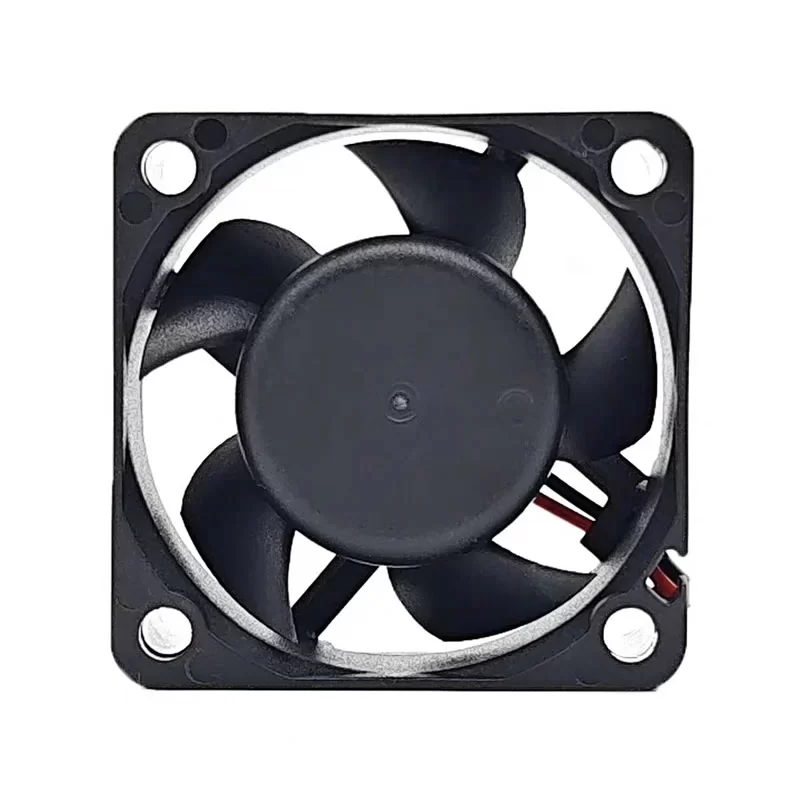

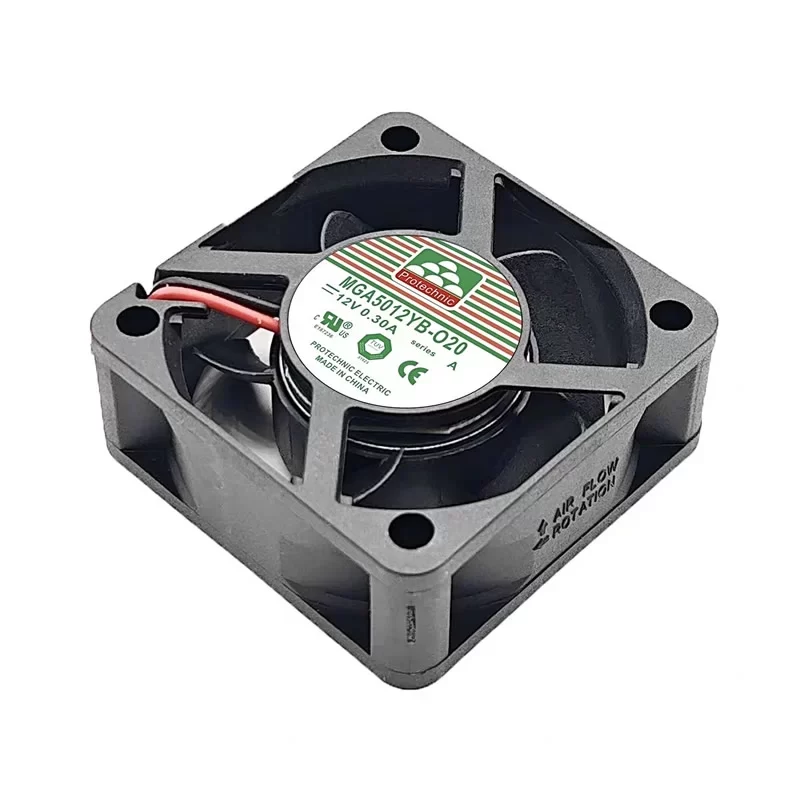

MGA5012YB-O20 Protechnic 12V 0.30A DC Axial Fan

Description

The Protechnic MGA5012YB-O20 is a high-performance DC Axial Fan with measuring dimensions of 50 x 50 x 20 mm. It utilizes Dual Ball Bearings for reliability and operates on a nominal voltage of 12VDC, drawing 0.30 A of current for 3.6 W of power. The fan features a 2-Wire termination and is typically deployed as a server cooling component in compact electronic and power supply applications.

MGA5012YB-O20 Fan Parameters
Model: MGA5012YB-O20
Manufacturer: Protechnic
Type: DC Axial Fan
Dimensions: 50 x 50 x 20 mm
Nominal Voltage: 12VDC
Current Draw: 0.30 A
Power Consumption: 3.6 W
Bearings: Dual Ball
Termination: 2 Wire Leads

Application
The MGA5012YB-O20 is primarily utilized in systems requiring high-performance cooling within a compact space. Common applications include server cooling, network equipment, mini-PCs, power supplies, and industrial control systems.
