Description
The Protechnic MGT8012UB-R25-IP68 is a highly durable and powerful 12V DC axial fan measuring 80x80x25mm, specifically engineered for operation in harsh environmental conditions. Its IP68 rating signifies complete protection against dust and the ability to withstand continuous immersion in water, making it ideal for outdoor enclosures, industrial machinery exposed to liquids, and other challenging applications. Powered by ball bearings, it ensures robust performance and an extended lifespan of 50,000 hours at 70°C. Delivering a substantial 68.88 CFM of airflow and a strong static pressure of 0.361 In H2O at 4800 RPM, this fan provides intense cooling while maintaining a noise level of 45.2 dBA, offering a reliable thermal management solution for demanding environments.

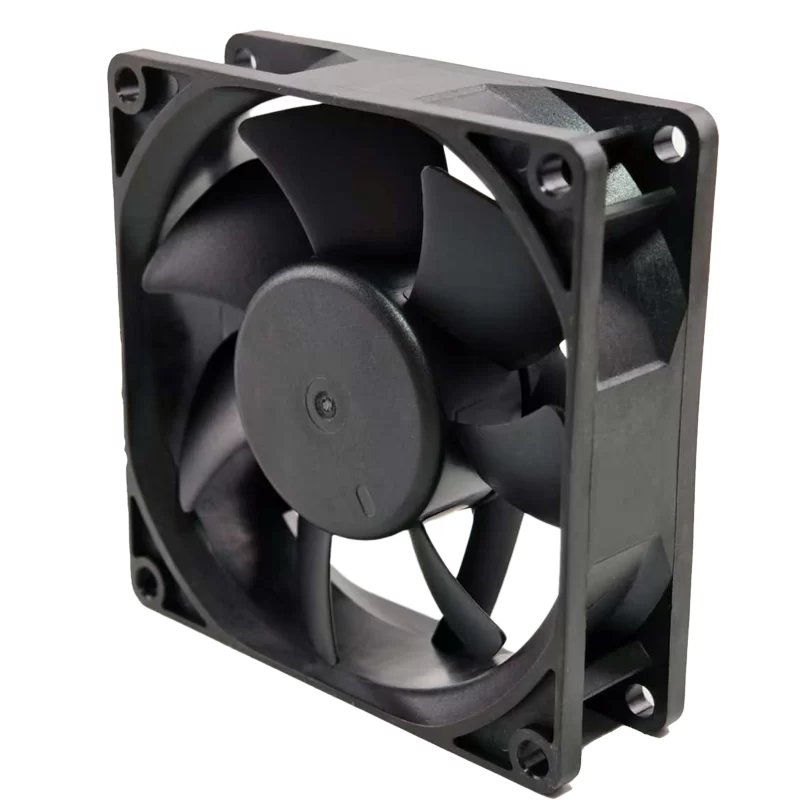

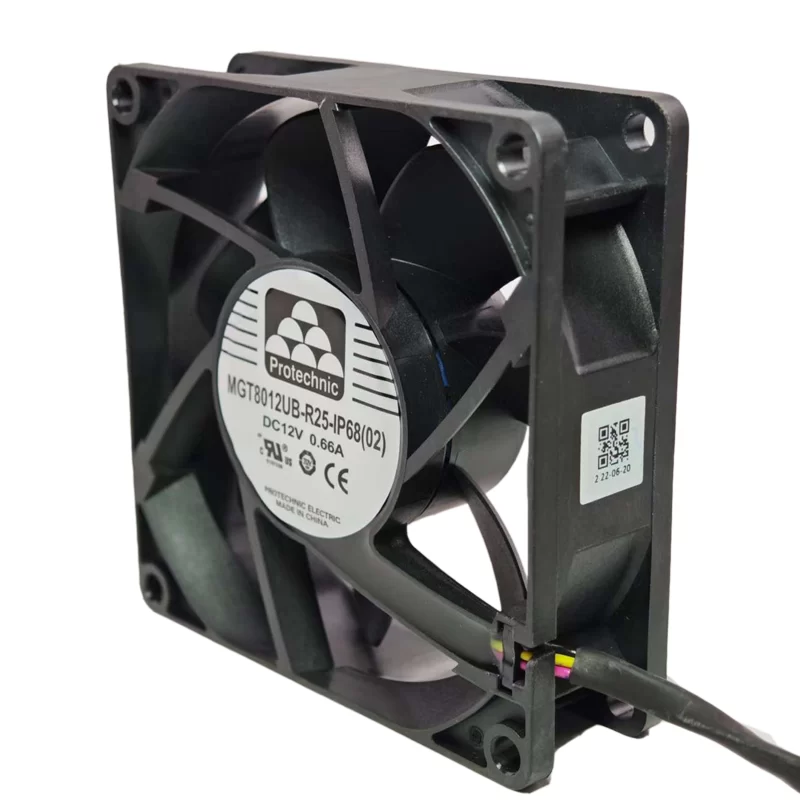

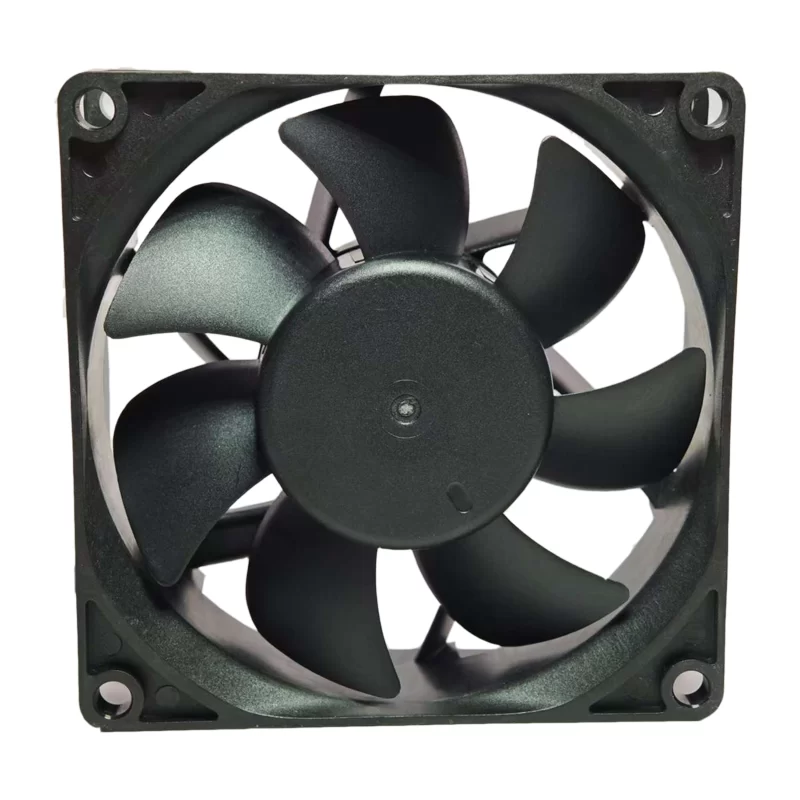

MGT8012UB-R25-IP68 Protechnic DC12V 0.66A waterproof axial fan
Manufacturer: Protechnic Electric
Model: MGT8012UB-R25-IP68
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Nominal Voltage: 12V DC
Current: 0.66A
Power Consumption: 7.92W
Speed: 4800 RPM
Airflow: 68.88 CFM
Static Pressure: 0.361 In H2O
Noise Level: 45.2 dBA
Bearing Type: Ball Bearing
Termination: 3-wire leads
Life Expectancy: 50,000 hours at 70°C
Frame and Blade Material: PBT
Ingress Protection (IP) Rating: IP68
Features: Auto-Restart, Locked Rotor Protection, Reverse Connection Protection, Motor Protection, Waterproof, Dustproof
Safety Approvals: UL, TUV, CE
