Description
The MMF-06H24SS-CX1 is a reliable DC Axial Cooling Fan manufactured by Mitsubishi Electric, commonly found as a component in industrial equipment such as servo amplifiers and inverters. Operating on 24V DC power, it draws 0.09A of current, resulting in a 2.16W power consumption. Measuring 60mm x 60mm x 25mm, this fan spins at 3900 RPM, delivering 20 CFM of airflow and a static pressure of 45 Pa. It operates at a noise level of 30 dBA. Equipped with 3-wire leads, it utilizes ball bearings for enhanced durability and includes protective features like locked rotor protection and reverse polarity protection. Made with a plastic frame and impeller, it has a life expectancy of 50,000 hours and is designed to operate reliably in temperatures ranging from -10°C to 70°C, making it suitable for continuous cooling in demanding industrial environments.

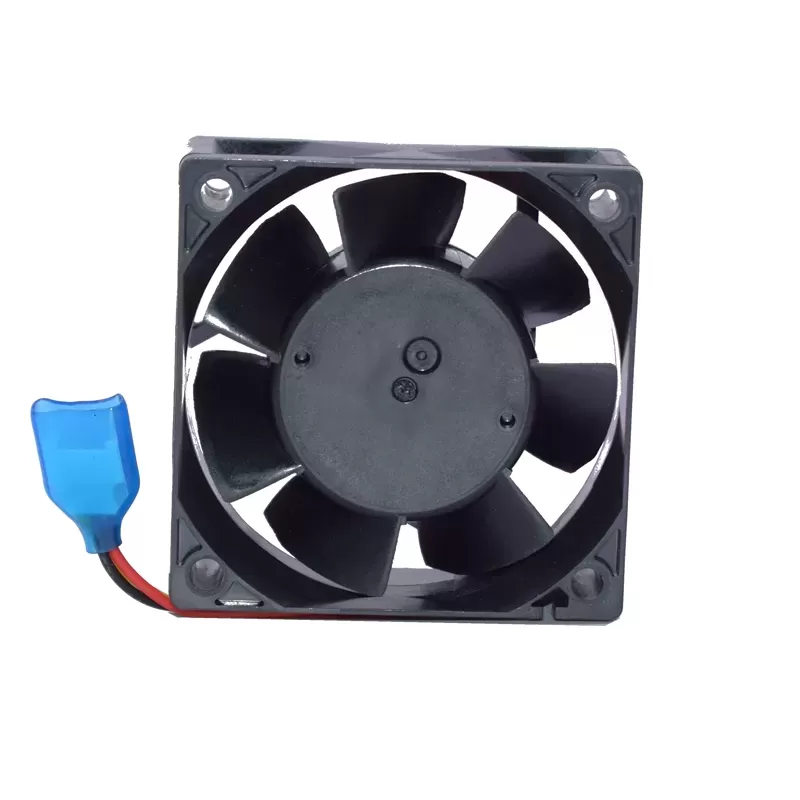

MMF-06H24SS-CX1 Original Mitsubishi CA2254H01 CA2254H11 6025/24V cooling fan
Manufacturer: Mitsubishi
Model Number: MMF-06H24SS-CX1
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.09A
Rated Power: 2.16W
Speed: 3900 RPM
Airflow: 20 CFM
Static Pressure: 45 Pa
Noise Level: 30 dBA
Dimensions: 60mm x 60mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Protection, Reverse Polarity Protection
