MQ12038HBL2 MINQUAN 220V 0.14A 20W AC axial fan

Description

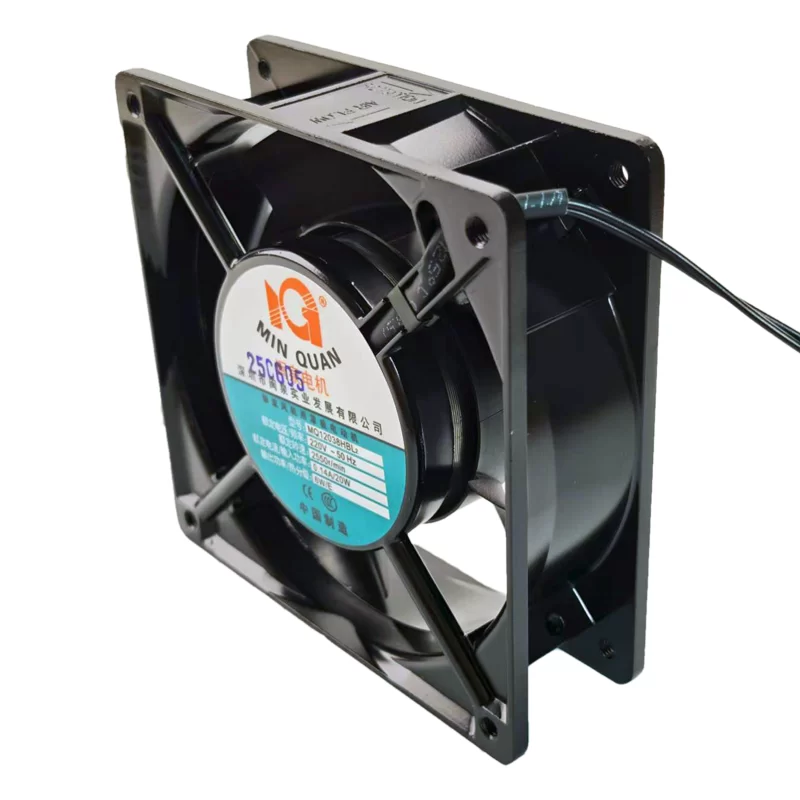

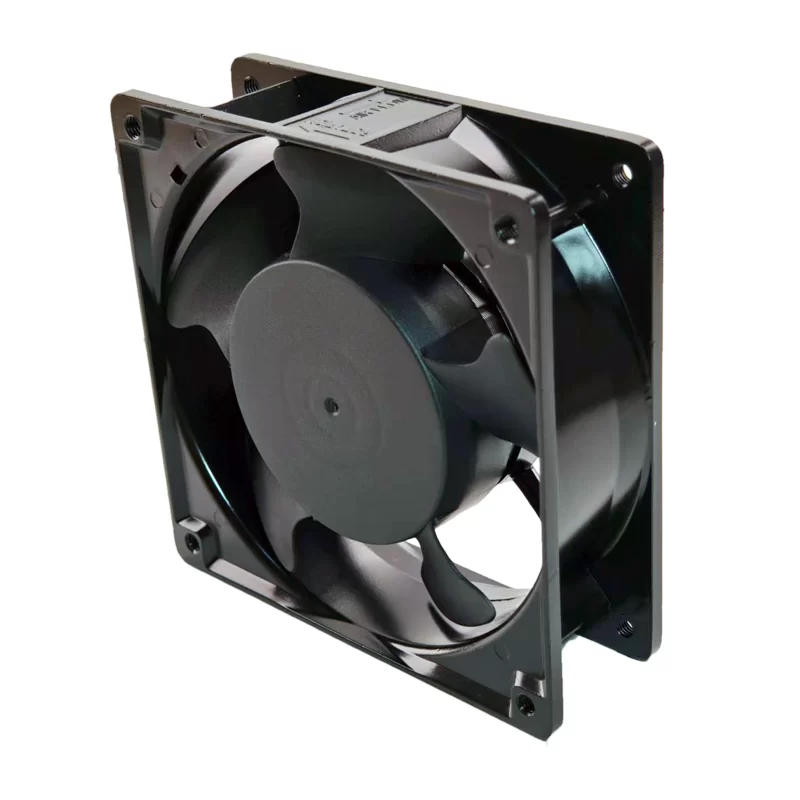

The MINQUAN MQ12038HBL2 is an AC axial fan measuring 120x120x38mm. It operates on 220 VAC at 50/60 Hz frequencies, drawing 0.14 A of current, with a power consumption of 20 W. This fan achieves a speed of 2550 RPM, providing an airflow of 80 CFM (2.26 m³/min). The noise level is 40 dB(A). It features double ball bearings suitable for continuous operation. The fan has a durable metal shell and an injection-molded fan blade. It connects via 2-wire Leads. This fan is commonly used as an industrial chassis fan or in other applications requiring reliable AC cooling.

MQ12038HBL2 Fan Parameters
Model: MQ12038HBL2
Manufacturer: MINQUAN
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.14 A
Power Consumption: 20 W
Speed: 2550 RPM
Airflow: 80 CFM (2.26 m³/min)
Noise Level: 40 dB(A)
Bearing Type: Double Ball Bearing
Termination: 2-wire Leads
Material Frame: Metal Shell
Material Blade: Injection Molding Fan Blade
Application: Industrial chassis cooling, general AC cooling.
