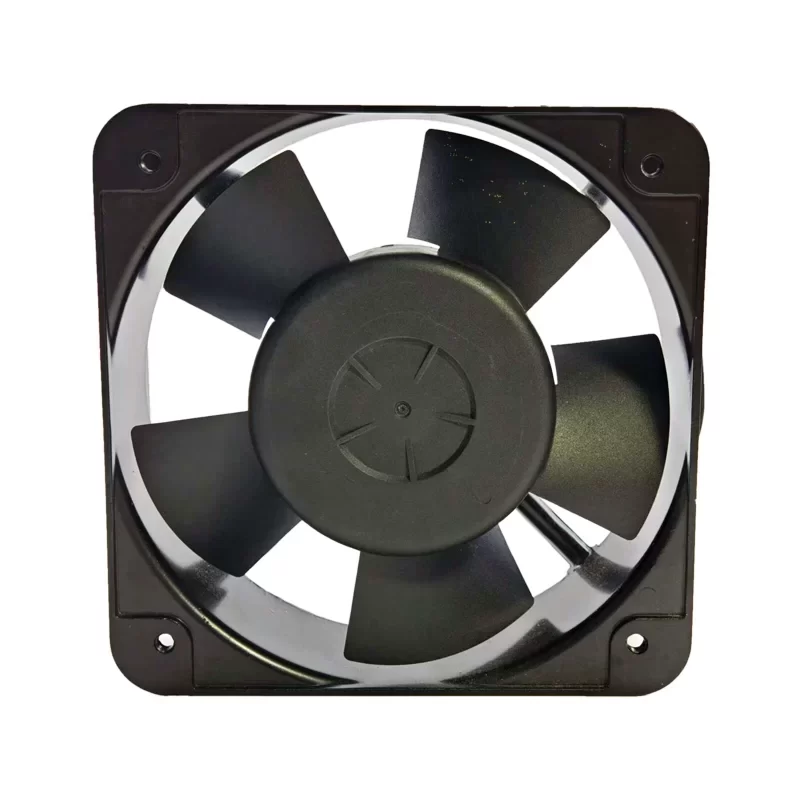

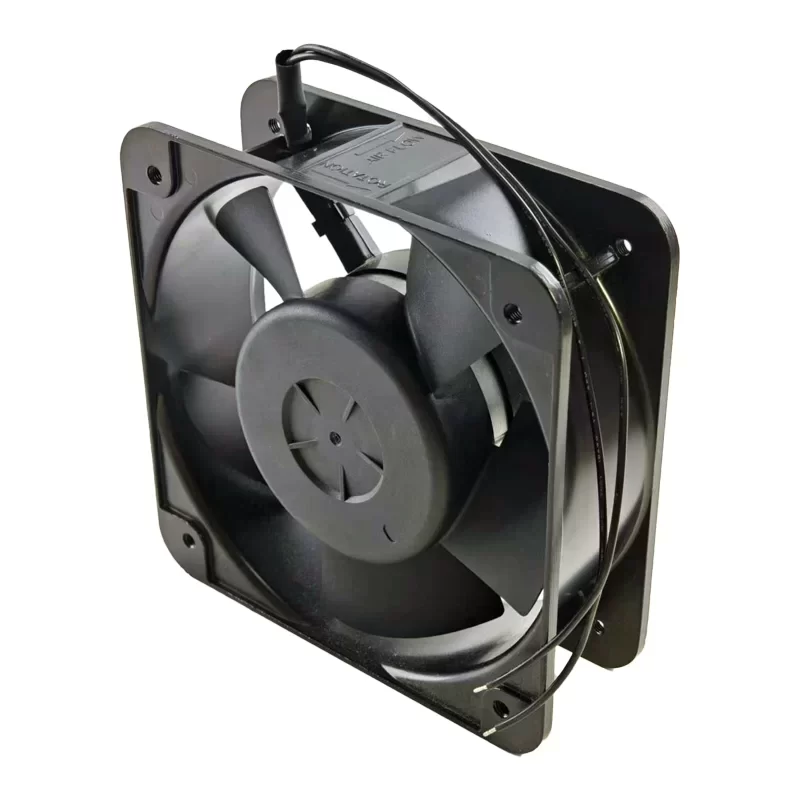

MQ15050HBL2 MINQUAN 220V AC Axial Fan

Description

The MINQUAN MQ15050HBL2 is a 220V AC axial fan with dimensions of 150x150x50mm. It draws 0.25A of current and consumes 35W of power. The fan operates at a speed of 2400RPM. It utilizes durable ball bearings and is constructed with plastic housing and impeller. It is terminated with two wire leads. It is suitable for ambient temperatures ranging from -20 to60°C and has an expected life of 70,000hours at40°C.

MQ15050HBL2 Fan Parameters
Manufacturer: MINQUAN
Model: MQ15050HBL2
Fan Type: AC Axial Fan
Dimensions: 150 x 150 x 50 mm
Rated Voltage: 220 V
Current Rating: 0.25 A
Power Consumption: 35 W
Speed: 2400 RPM
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20 ~ 60°C
Lifetime @ Temp: 70,000 Hours (at 40°C)
Weight: 0.44 kg
Approval Agency: CE, UL, cUL, TUV
Application: This MINQUAN AC axial fan is suitable for applications in industrial equipment, control cabinets, and various systems requiring effective air circulation under AC power.
