Description

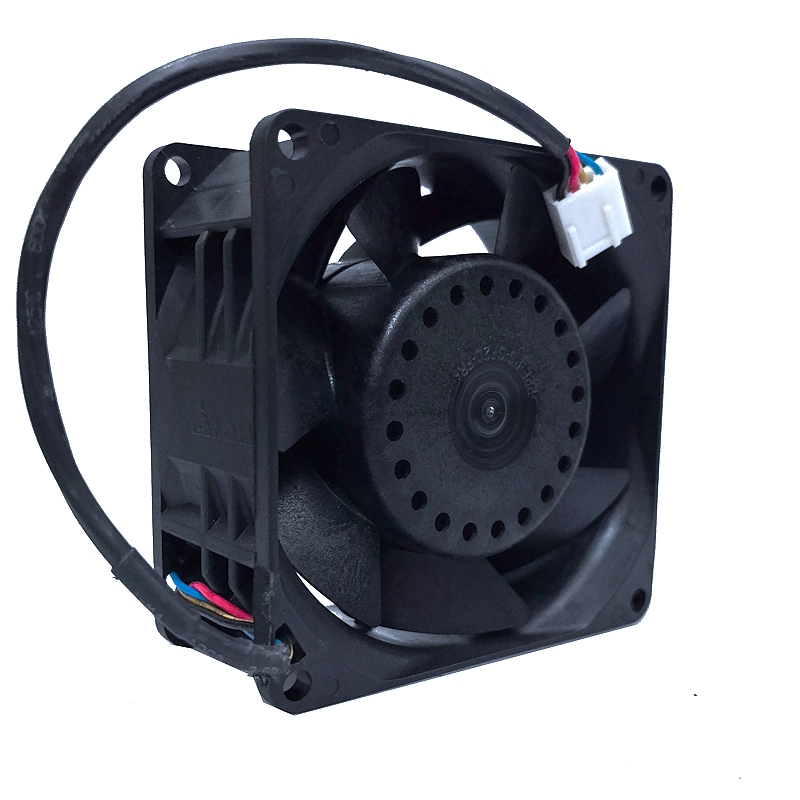

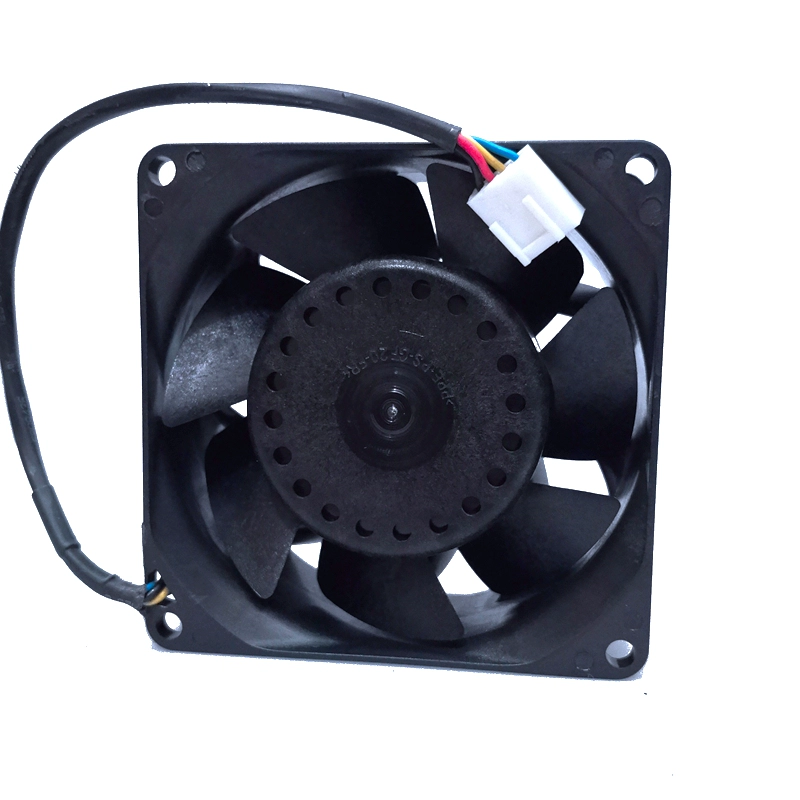

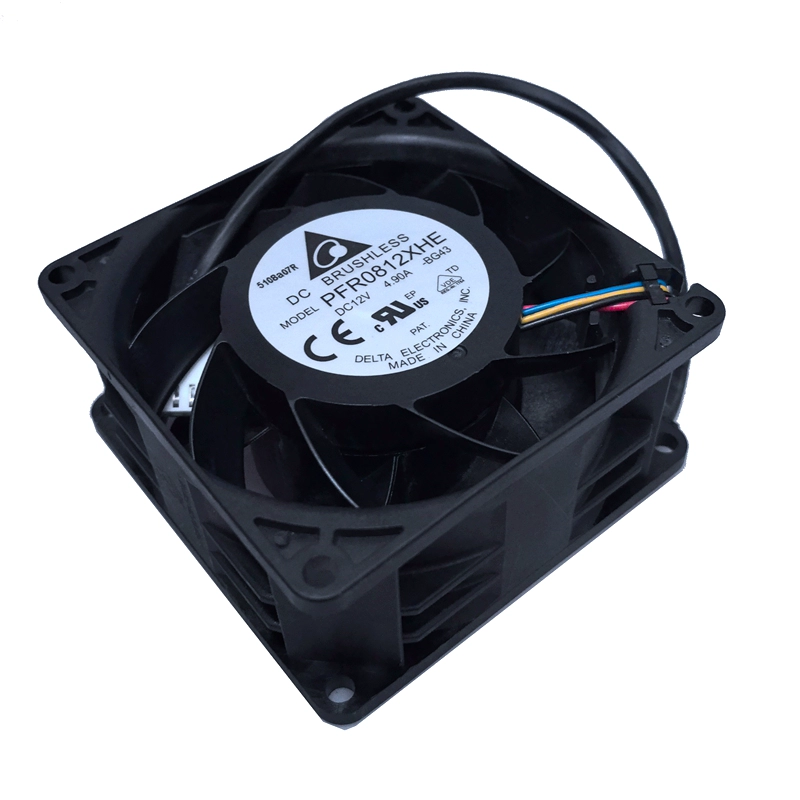

The Delta PFR0812XHE-BG43 is a high-performance DC axial fan measuring 80x80x38mm. It operates on 12 VDC, drawing 4.90 A of current, with a power consumption of 58.8 W. This fan achieves an exceptionally high speed of 13300 RPM, providing an airflow of 134.3 CFM (3.80 m³/min) with a static pressure of 3.00 inchH2O (76.20 mmH2O). The noise level is 71.5 dB(A). It features ball bearings for robust operation and includes PWM control and a speed sensor (Tach) for precise management. The frame and blades are made of plastic. This fan is designed for demanding server, industrial, and high-density cooling applications. It uses 4-wire Leads for connection.
PFR0812XHE-BG43 Fan Parameters
Model: PFR0812XHE-BG43
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 80x80x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 9.0-12.6 V
Rated Current: 4.90 A
Power Consumption: 58.8 W
Speed: 13300 RPM
Airflow: 134.3 CFM (3.80 m³/min)
Static Pressure: 3.00 inchH2O (76.20 mmH2O)
Noise Level: 71.5 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire Leads
Features: PWM Control, Speed Sensor (Tach), Locked Rotor Protection
Weight: 260 g
Material Frame: Plastic
Material Blade: Plastic
Expected Life: 70000 Hrs at 40°C
Operating Temperature: -10 to 70°C
Application: Server, industrial, high-density cooling.
