Description

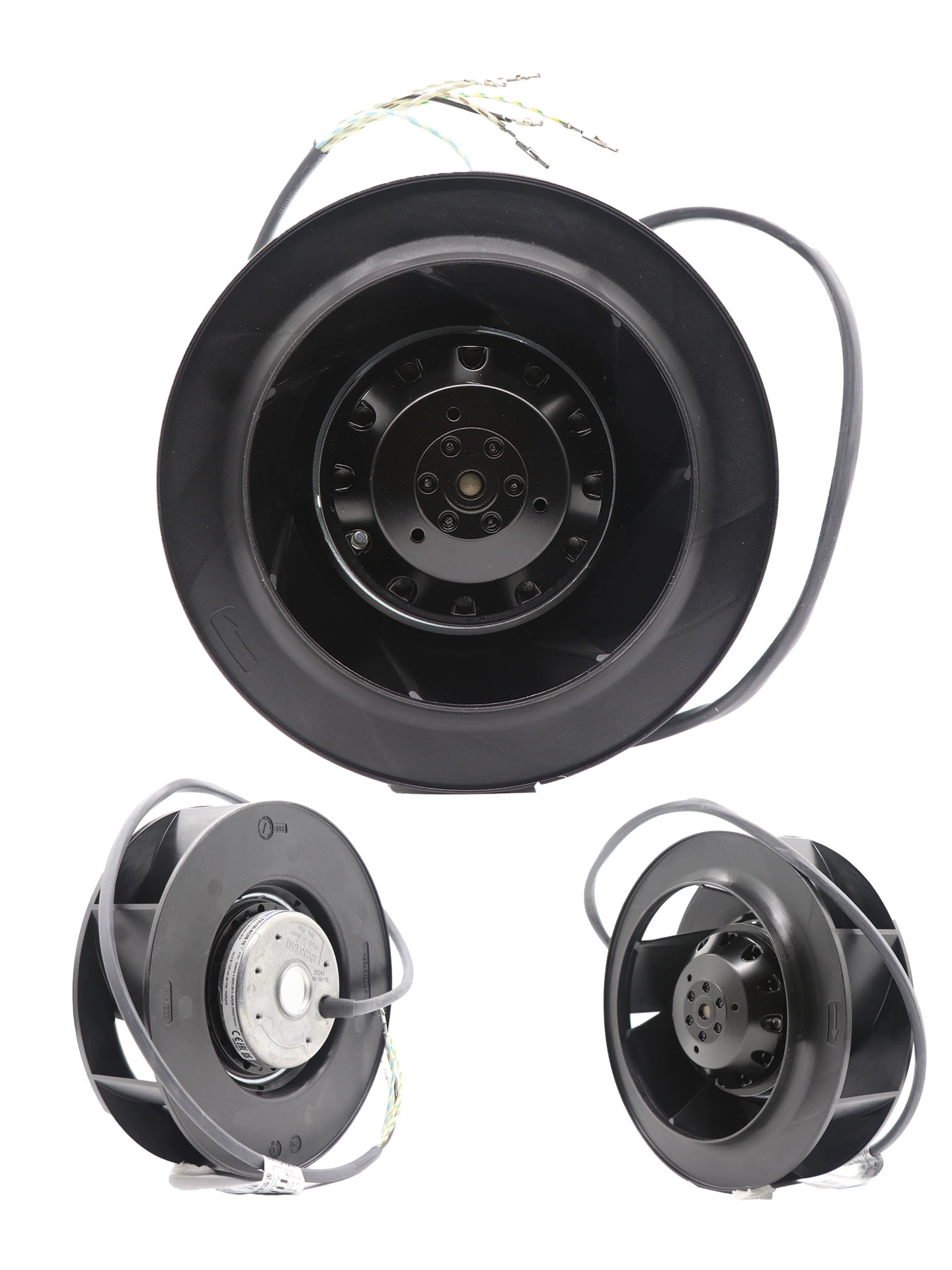

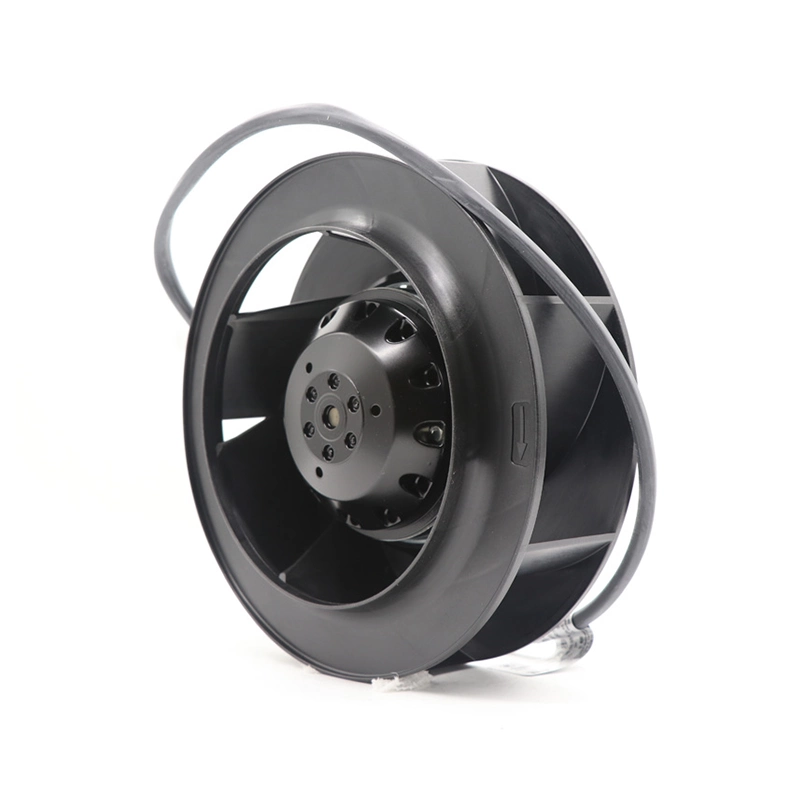

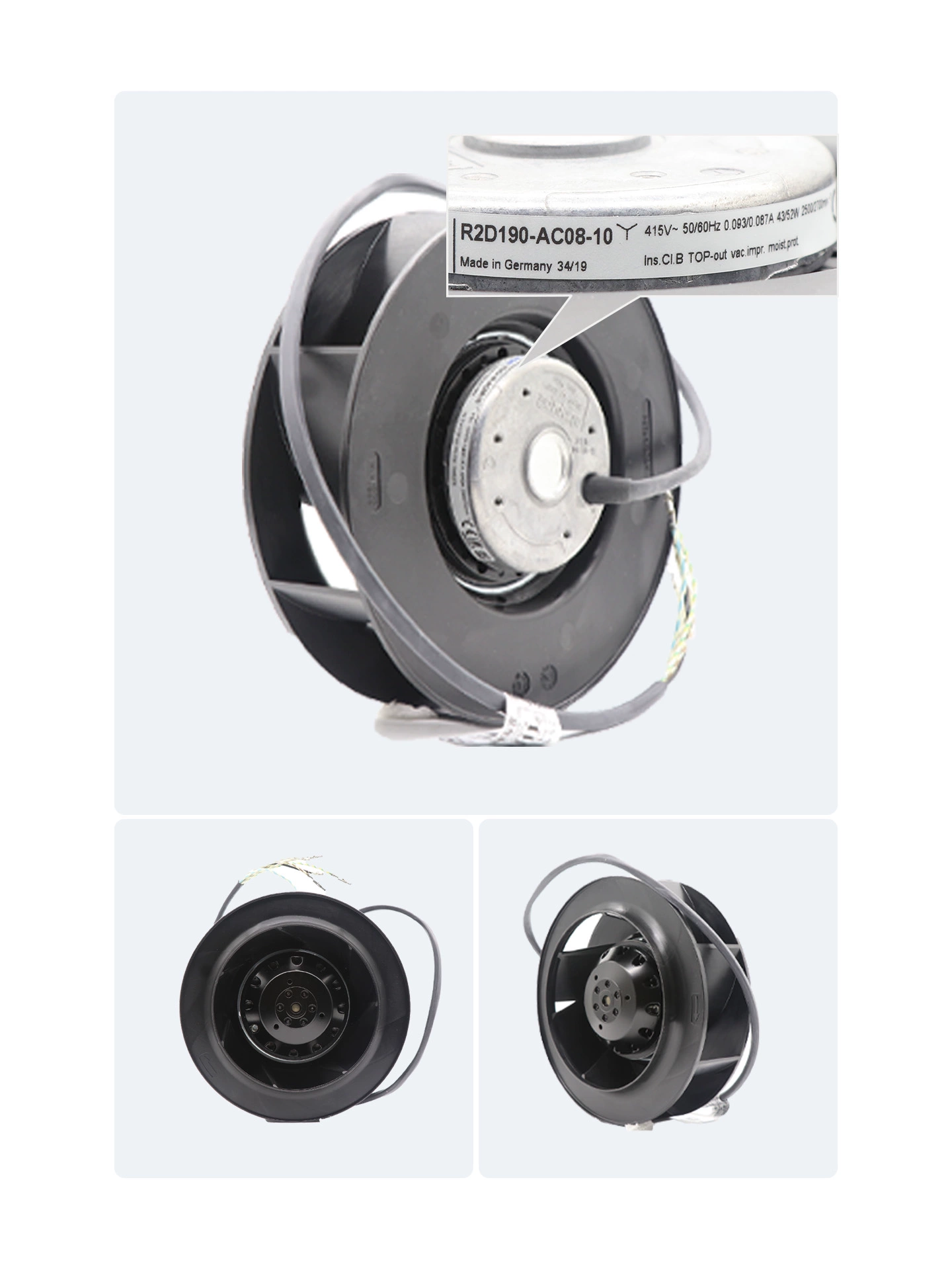

The ebmpapst R2D190-AC08-10 is a 190mm AC centrifugal fan designed for industrial ventilation and air handling applications. Operating on a 3-phase 400V AC (50/60Hz) supply, this fan draws 0.09A of current and consumes 43W (50Hz) or 52W (60Hz). It achieves rotational speeds of 2450 RPM (50Hz) or 2600 RPM (60Hz). Featuring a plastic impeller and ball bearings, this model is built for reliable performance and includes IP44 protection.
R2D190-AC08-10 Fan Parameters
Model Number: R2D190-AC08-10
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 190mm
Rated Voltage: 400 VAC, 3-phase
Frequency: 50 Hz / 60 Hz
Rated Current: 0.09A (50Hz) / 0.09A (60Hz)
Rated Power: 43 W (50Hz) / 52 W (60Hz)
Speed: 2450 RPM (50Hz) / 2600 RPM (60Hz)
Bearing Type: Ball Bearing
IP Rating: IP44
Impeller Material: Plastic (PP plastic or PA plastic)
Motor Type: M2D068-BF
Weight: 1.3 kg
Operating Temperature: -25°C to +55°C (some datasheets indicate up to +80°C for motor, using fan operating temp here)
Electrical Connection: Wires (Y-connection)
Direction of Rotation: Clockwise (viewed toward rotor)
Features: Motorized Impeller design, Thermal Overload Protector (TOP)
Application: Industrial ventilation, air handling units, general machinery cooling.
