Description

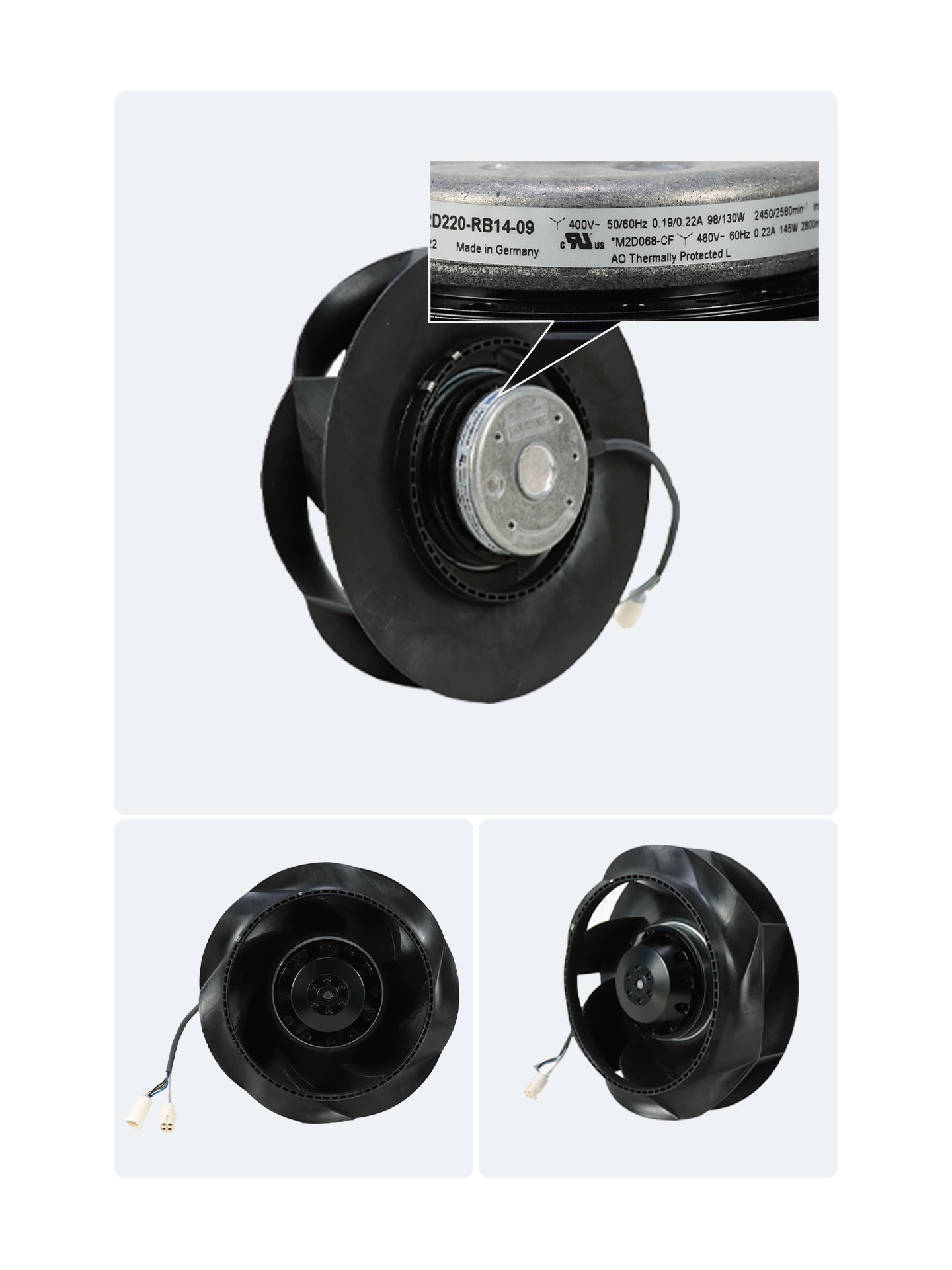

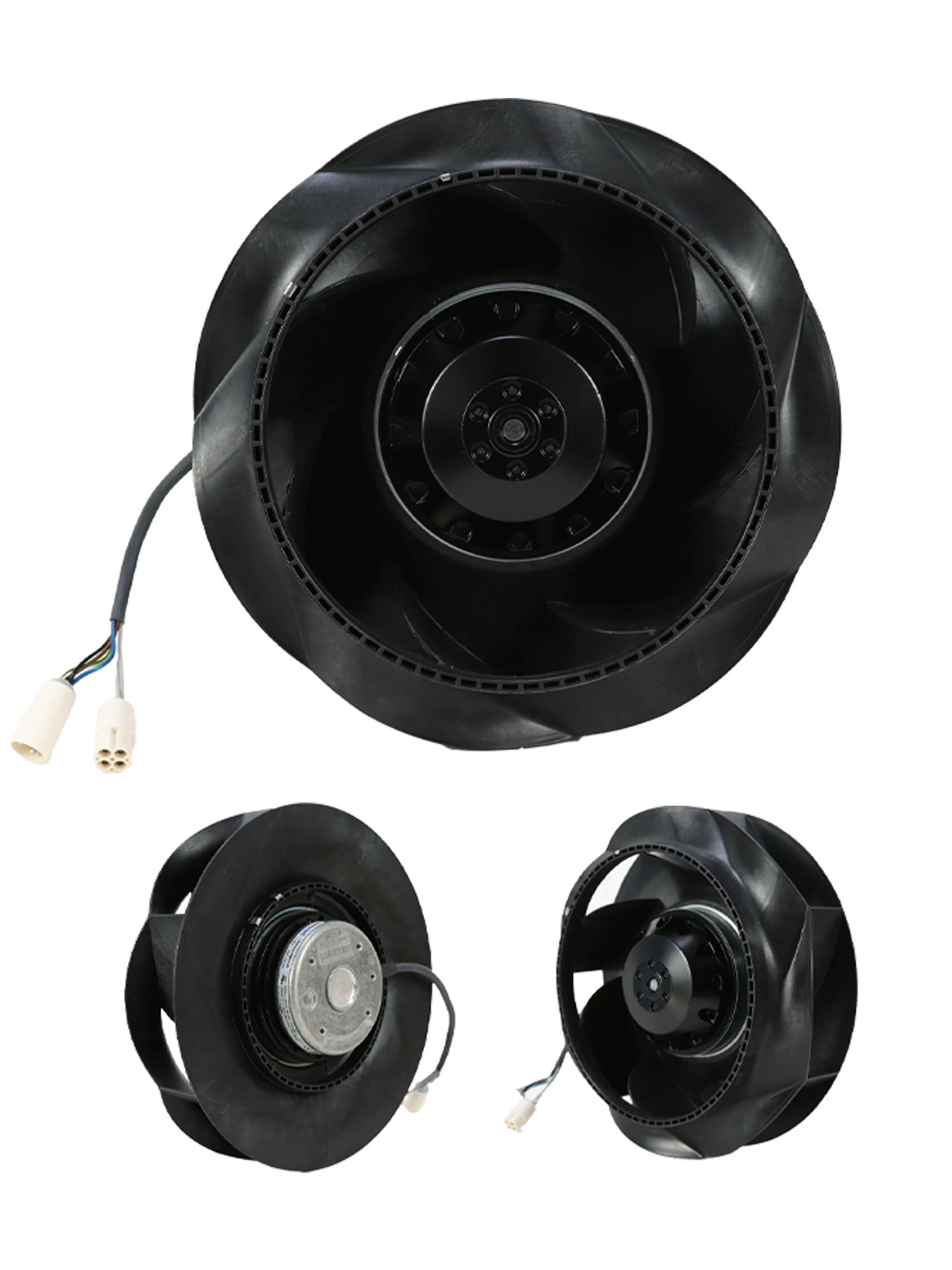

The ebmpapst R2D220-RB14-09 is a robust 220mm AC centrifugal fan designed for industrial cooling and ventilation. This 3-phase fan operates on 400V/460V AC (50/60Hz), drawing 0.19A (50Hz) or 0.22A (60Hz) of current. It consumes 98W (50Hz) or 135W (60Hz), achieving rotational speeds of 2450 RPM (50Hz) or 2800 RPM (60Hz). Featuring a plastic (PP) impeller and durable ball bearings, this model boasts an IP44 protection rating. It is engineered for reliable, continuous operation in demanding environments, making it suitable for applications like general machinery cooling and control panel ventilation.
R2D220-RB14-09 Fan Parameters
Model Number: R2D220-RB14-09
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 220mm
Rated Voltage: 400/460 VAC, 3-phase
Frequency: 50 Hz / 60 Hz
Rated Current: 0.19A (50Hz) / 0.22A (60Hz)
Rated Power: 98 W (50Hz) / 135 W (60Hz)
Speed: 2450 RPM (50Hz) / 2800 RPM (60Hz)
Bearing Type: Ball Bearing
IP Rating: IP44
Impeller Material: Plastic (PP plastic)
Motor Type: M2D068-CF
Net Weight: 1.66 kg
Operating Temperature: -25°C to +75°C
Electrical Connection: Leads
Features: Thermal Overload Protected
Application: Industrial cooling, general machinery ventilation, control panels.
