R2E180-BD52-06 ebmpapst 230V AC Centrifugal Fan

Description

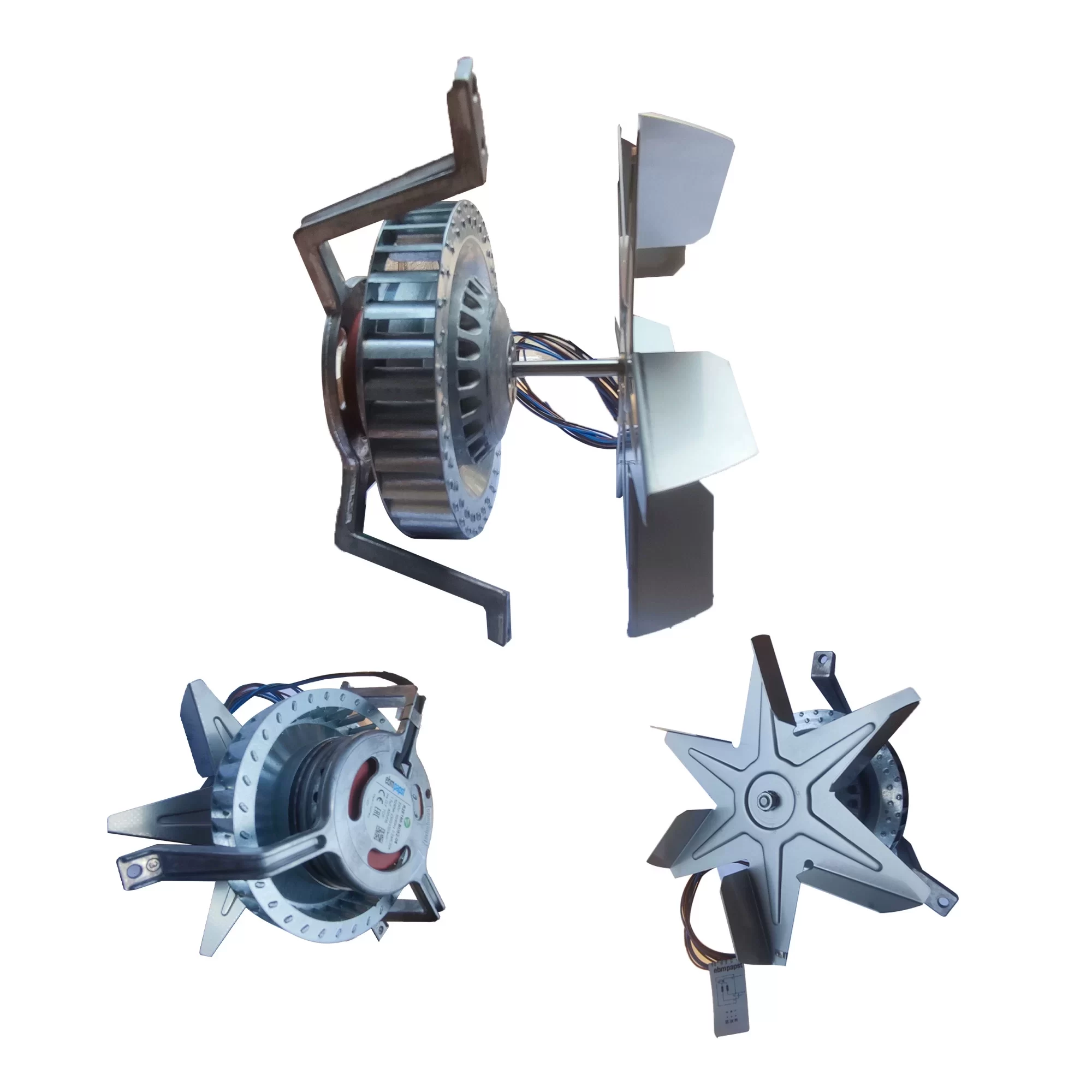

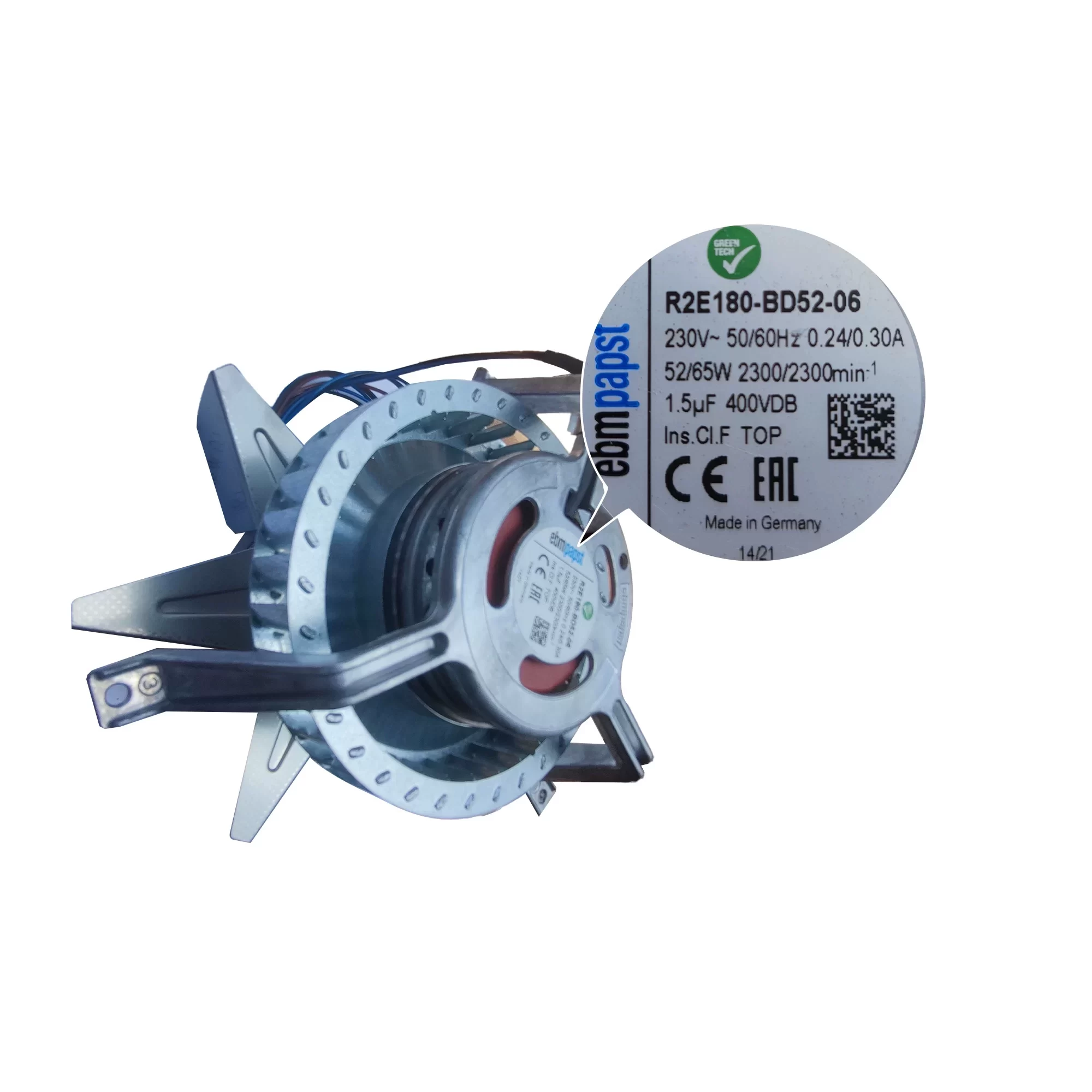

The ebmpapst R2E180-BD52-06 is an AC centrifugal fan with a 180 mm impeller diameter. It operates on a 230V AC power supply at dual frequencies of 50 Hz and 60 Hz. At 50 Hz, it draws 0.24 A of current and consumes 52 W of power, while at 60 Hz it draws 0.30 A and consumes 65 W. The fan delivers a consistent airflow of 755 m³/h (445CFM) and a static pressure of 200 Pa (0.81inch−H2O) with a rotational speed of 2300 RPM at both frequencies. The fan’s motor is an M2E052-CA with a capacitor of 1.5 µF, and its impeller is made from sheet steel, stainless with 6 blades.

R2E180-BD52-06 Fan Parameters
Manufacturer: ebmpapst
Model: R2E180-BD52-06
Fan Type: AC Centrifugal Fan
Impeller Diameter: 180 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Motor: M2E052-CA
Capacitor: 1.5 µF
Current Rating: 0.24 A (50 Hz), 0.30 A (60 Hz)
Power Consumption: 52 W (50 Hz), 65 W (60 Hz)
Airflow: 755 m³/h
Static Pressure: 200 Pa
Speed: 2300 RPM
Noise Level: 64 dB(A)
Weight: 1.0 kg
Bearing Type: Ball bearing
Termination: Capacitor leads
Impeller Material: Sheet steel, stainless
Number of blades: 6
Direction of rotation: Clockwise, seen on rotor
Operating Temperature: -25 °C to 70 °C
Service Life: 40000 h at 40 °C
Motor Protection: Thermal overload protector (TOP)
Approval: CCC
Voltage: 400VDB

Application
The R2E180-BD52-06 fan is suitable for a variety of applications requiring high static pressure and efficient air movement, such as in air conditioning units, ventilation systems, and commercial kitchen exhaust hoods.
