Description

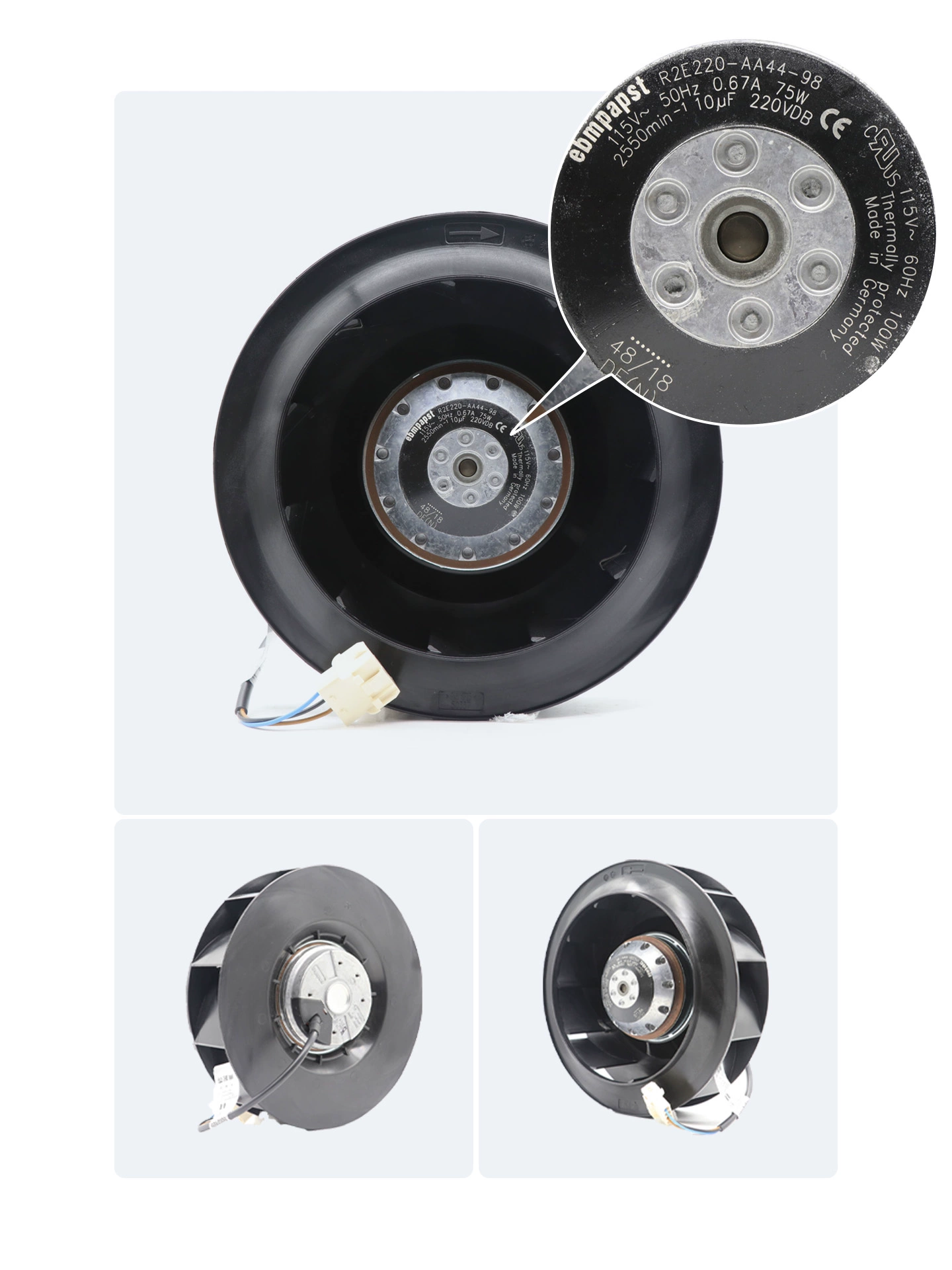

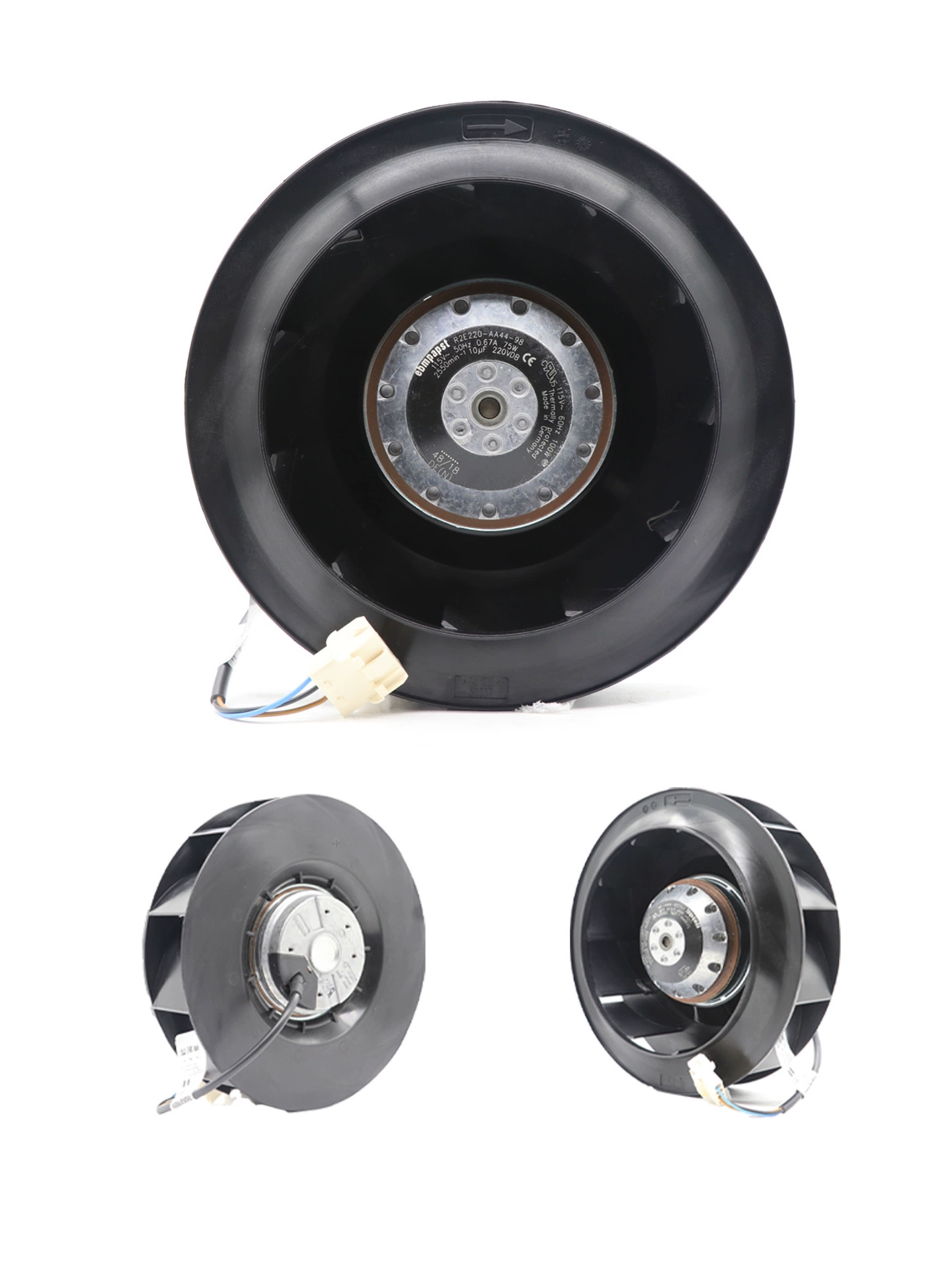

The ebmpapst R2E220-AA44-98 is a 220mm AC centrifugal fan with an external rotor motor, designed for continuous operation in various ventilation and air conditioning systems. Operating on 115 VAC at 50/60 Hz, this fan draws 0.67A at 50Hz and 0.88A at 60Hz. Its power consumption is 75W at 50Hz and 100W at 60Hz. It achieves a rotational speed of 2550 min-1 at 50Hz and 2700 min-1 at 60Hz. With an IP44 degree of protection and utilizing durable ball bearings, it ensures robust and reliable performance. This model provides a static pressure of 250 Pa and is suitable for a wide range of applications, including HVAC and general air movement.
R2E220-AA44-98 Fan Parameters
Model Number: R2E220-AA44-98
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward Curved Impeller, External Rotor Motor)
Dimensions: 220 mm (diameter), 71 mm (depth)
Rated Voltage: 115 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.67A (50Hz) / 0.88A (60Hz)
Power Consumption: 75 W (50Hz) / 100 W (60Hz)
Speed: 2550 min-1 (50Hz) / 2700 min-1 (60Hz)
Airflow: Approximately 915 m³/h (50Hz) / 950 m³/h (60Hz)
Static Pressure: 250 Pa
Noise Level: 67 dB(A) (50Hz) / 69 dB(A) (60Hz)
Bearing Type: Ball Bearing
Impeller Material: Plastic PA6, fiberglass-reinforced
Housing Material: Galvanized sheet steel
Degree of Protection: IP44
Insulation Class: B
Expected Life: 40,000 hours (at 40°C)
Operating Temperature: -25°C to +70°C
Weight: 1.3 kg (approximately)
Application: HVAC systems, central air conditioning units, industrial ventilation, heat pumps, cooling of electrical enclosures and machinery.
