Description

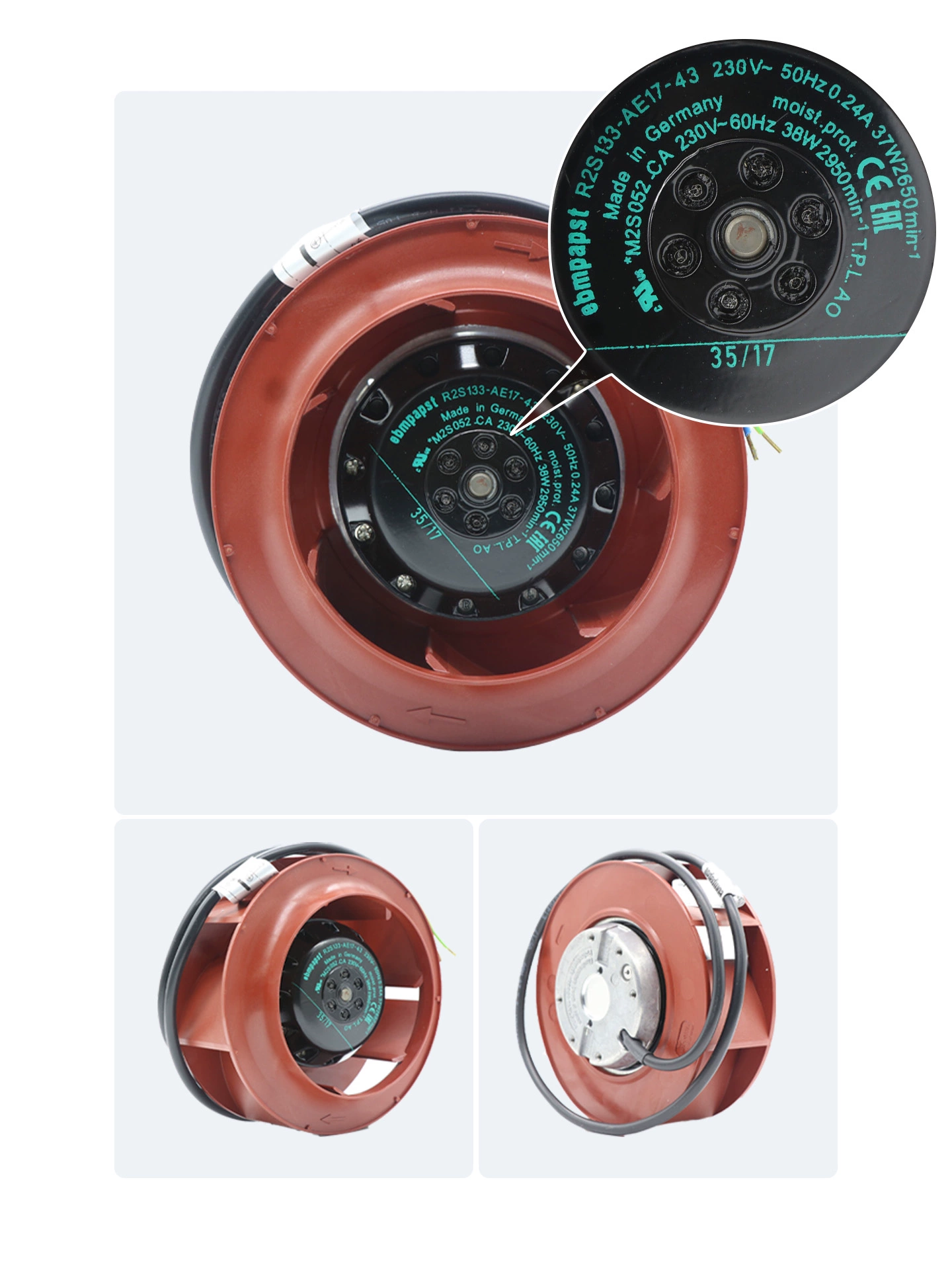

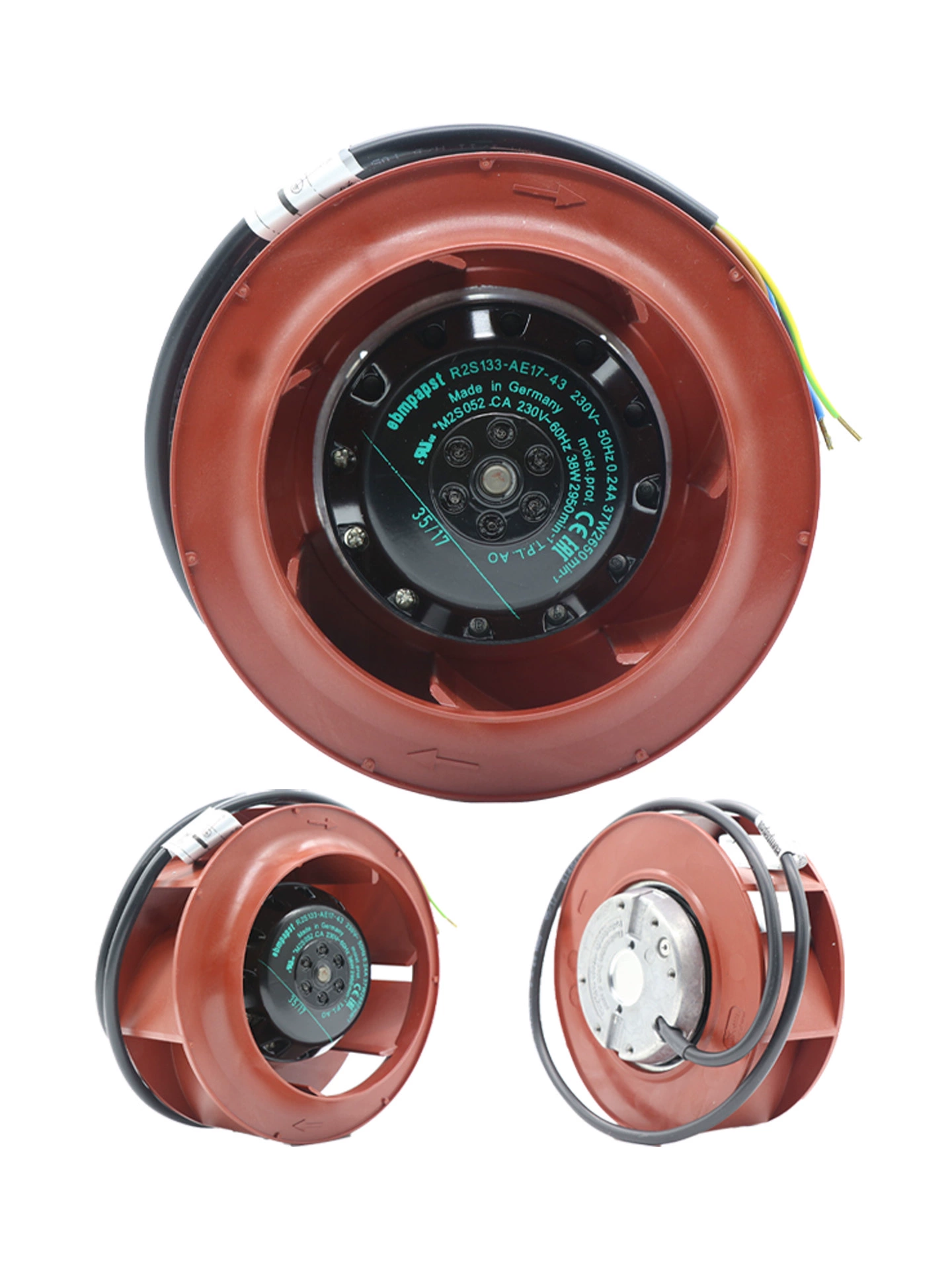

The ebmpapst R2S133-AE17-43 is a compact 133mm AC centrifugal fan with backward-curved blades, designed for efficient air handling in various systems, often without the need for a separate scroll housing. Operating on a 230V AC (1-phase) power supply at both 50Hz and 60Hz, this fan draws approximately 0.24A (50Hz) or 0.21A (60Hz) of current, consuming 37W (50Hz) or 36W (60Hz) of power. It achieves rotational speeds of 2650 RPM (50Hz) and 2950 RPM (60Hz), delivering an airflow of up to 280 m³/h (164.8 CFM). Utilizing twin ball bearings for durability and an IP44 degree of protection, this model offers reliable and relatively quiet operation at 55 dB(A), making it suitable for applications such as air purifiers, ventilation units, and electronic cooling.
R2S133-AE17-43 Fan Parameters
Model Number: R2S133-AE17-43
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved motorized impeller)
Nominal Diameter: 133 mm
External Depth: 72 mm
Motor: M2S052-CA
Rated Voltage: 230 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 0.24A (50Hz) / 0.21A (60Hz)
Rated Power: 37 W (50Hz) / 36 W (60Hz)
Speed: 2650 RPM (50Hz) / 2950 RPM (60Hz)
Airflow: 280 m³/h (164.8 CFM)
Noise Level: 55 dB(A)
Bearing Type: Twin Ball Bearing
Impeller Material: PA plastic (7 blades)
Rotor Surface: Coated in black
Direction of Rotation: Clockwise, viewed on rotor
Electrical Connection: 3 Lead Wires (with crimped tips)
Motor Protection: Thermal overload protector (TOP) internally wired
Weight: 0.7 kg
Operating Temperature: -20°C to +45°C (50Hz) / -20°C to +65°C (60Hz)
Degree of Protection: IP44
Insulation Class: “B”
Conformity: CE, CCC, CSA C22.2 Nr.77, EAC, UL 2111
Application: Air purifiers, ventilation units, range hoods, computer fan trays, duct fans, roof units, electronic cooling.
