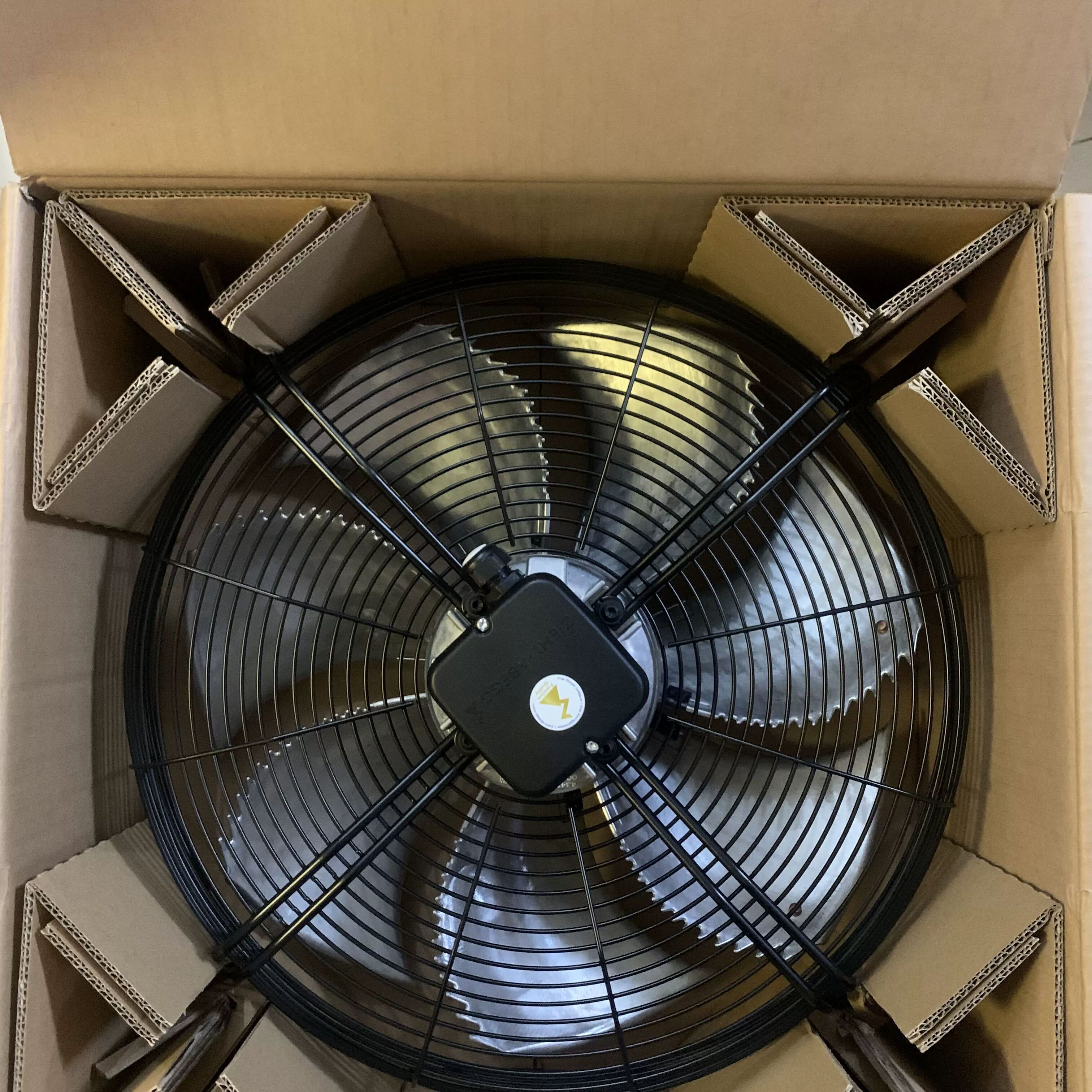

S4E500-AE03-01 ebmpapst AC Axial Fan

Description

Manufacturer: ebm-papst
Model: S4E500-AE03-01
Product Type: AC Axial Fan with sickled blades, S series
Motor: M4E110-GF
Phase: 1~
Impeller Diameter: 500 mm
Number of Blades: 5
Bearing Type: Ball Bearing
Protection Class: IP44
Insulation Class: “F”
Motor Protection: Thermal overload protector TOP, with basic insulation
Electrical Hookup: Terminal box; capacitor integrated and connected
Airflow Direction: V Exhaust over struts / Suction
Direction of Rotation: Counter-clockwise, viewed toward rotor
Mode: S1
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Conformity with standards: CE, VDE, UL 1004-1, CSA C22.2 No. 100, CCC, EAC
Housing/Blade Material: Blades: Press-fitted sheet steel blank, sprayed with PP plastic; Guard grille: Steel, phosphated and coated with black plastic; Wall ring: Die-cast aluminium, coated in black; Rotor: Open, coated in black; Terminal box: PC/ABS plastic, black
Minimum Ambient Temperature: -40 °C
Maximum Ambient Temperature: 70 °C
Nominal Data 1~ 230V, 50Hz:

Nominal Voltage: 230 VAC
Frequency: 50 Hz
Speed: 1330 min⁻¹ RPM
Power Input P1: 710 W
Current Draw: 3.1 A
Starting Current: 6.2 A
Motor Capacitor: 14 µF, 450 VDB
Max. Back Pressure: 160 Pa
Nominal Data 1~ 230V, 60Hz:

Nominal Voltage: 230 VAC
Frequency: 60 Hz
Speed: 1785 min⁻¹ RPM
Power Input P1: 890 W
Current: 3.92 A
Max. Back Pressure: 120 Pa
