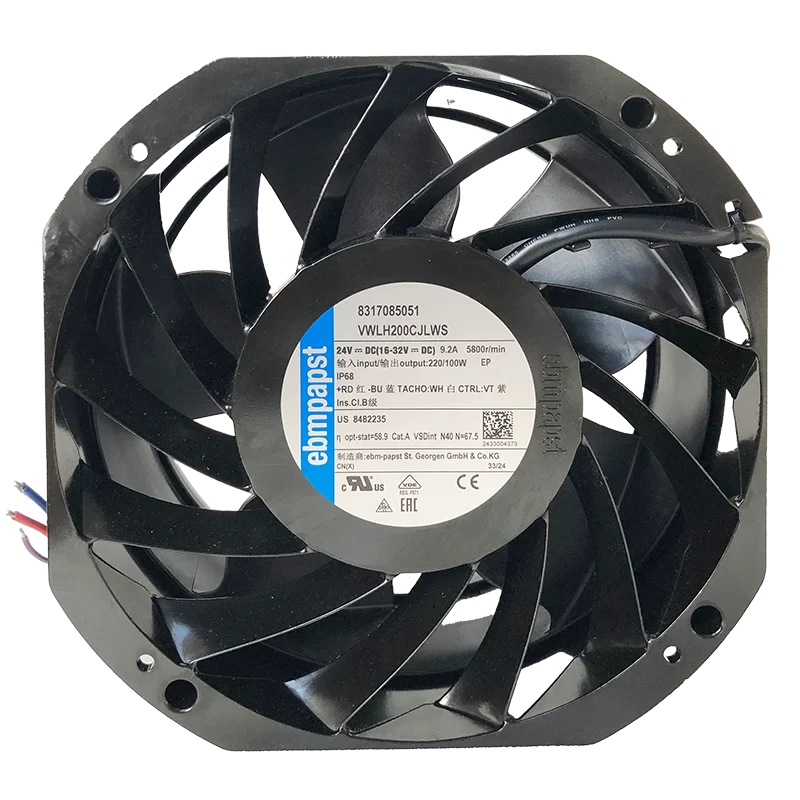

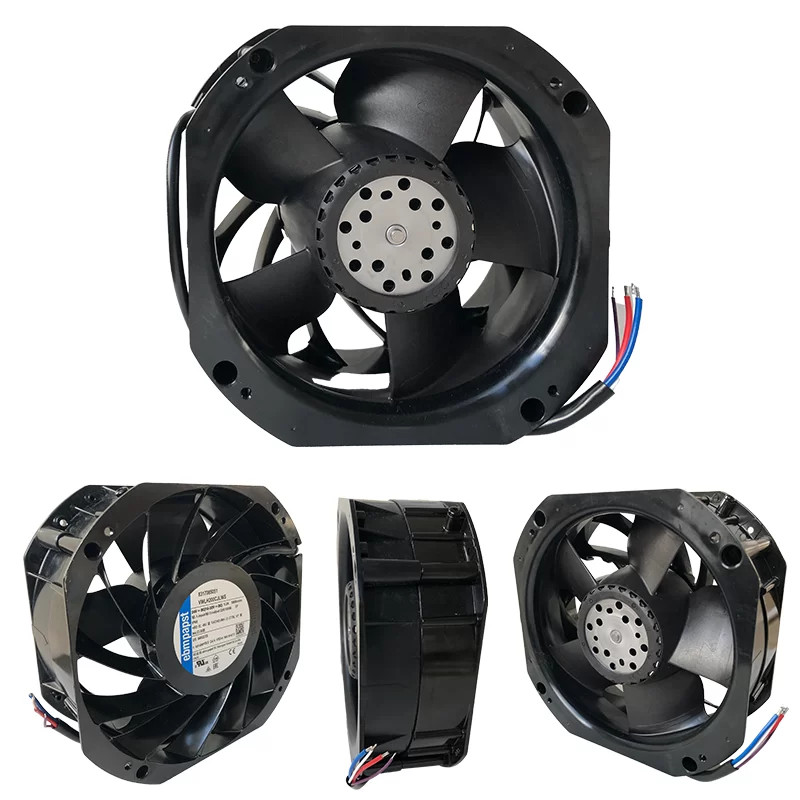

VWLH200CJLWS 8317085051 ebmpapst fan

Description

The ebmpapst VWLH200CJLWS (8317085051) is an ultra-high-performance 24VDC axial fan engineered for extreme thermal management in mission-critical industrial and telecommunications infrastructure. Featuring a powerful 220W motor and an IP68-rated design, this cooling solution is built to operate in the harshest environments, providing total protection against dust and high-pressure water ingress. It operates at a high rated speed of 5,800 RPM, drawing 9.2A to deliver massive airflow and high static pressure required for densely packed electronic enclosures. Equipped with a robust housing and a specialized 4-wire interface for PWM control and tachometer feedback, the VWLH200CJLWS ensures precise thermal regulation and exceptional reliability. This model is characterized by its superior power density and environmental resilience, making it an essential component for 5G base stations, large-scale solar inverters, and heavy-duty industrial automation systems.

VWLH200CJLWS 8317085051 Fan Parameters
Manufacturer: ebmpapst
Model Number: VWLH200CJLWS / 8317085051
Type: DC Axial Fan
‌Dimensions‌: 200×70mm
Frame Material: Metal / High-Strength Composite
Bearing Type: Dual Ball Bearing
Rated Voltage: 24 VDC
Operating Voltage Range: 16.0 – 32.0 VDC
Rated Current: 9.2 A
Rated Input Power: 220 W
Output Power: 100 W
Rated Speed: 5,800 RPM (min⁻¹)
Max. Air Flow: 545 CFM (926 m³/h / 15.43 m³/min).5
Max. Static Pressure: 3.82 inH₂O (950 Pa / 96.8 mmH₂O)
Sound Pressure Level: 76 dB(A)
Ingress Protection: IP68 (Dust-tight and Waterproof)
Termination: 4 Lead Wires
Wire Functions: Red (+), Blue (-), White (Tachometer), Violet (PWM)
Control Interface: PWM Control / Pulse Sensor
Operating Temperature: -25 – +65 °C
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, VDE, CE, RoHS

Application
The ebmpapst VWLH200CJLWS 8317085051 high-power axial fan is specifically designed for cooling 5G telecommunications base stations, outdoor solar energy storage systems, EV fast-charging stations, large-scale industrial frequency converters, and heavy-duty electronic cabinets operating in high-moisture or extreme outdoor conditions.
