Description

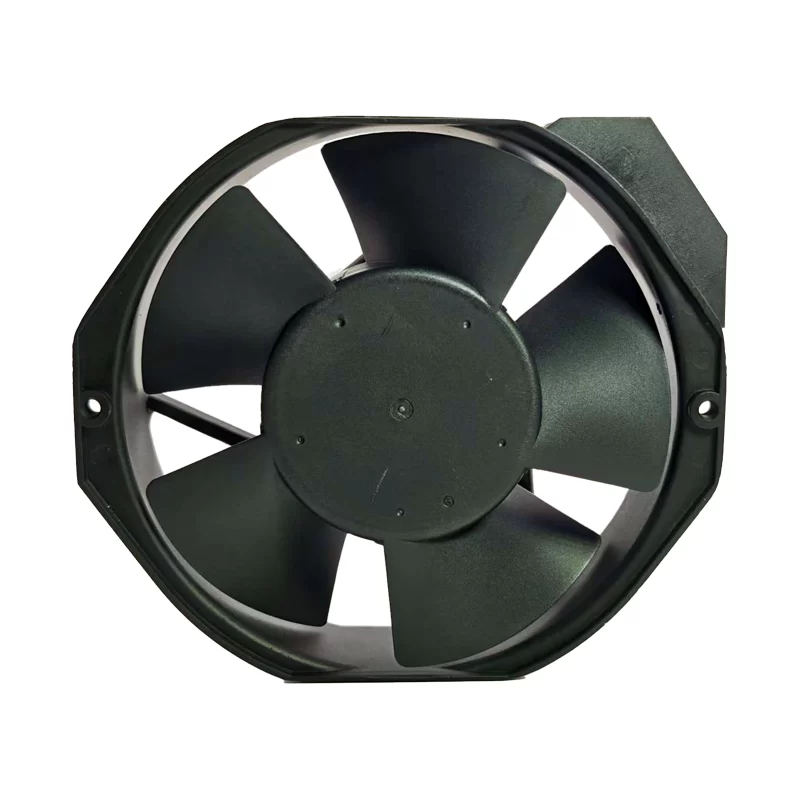

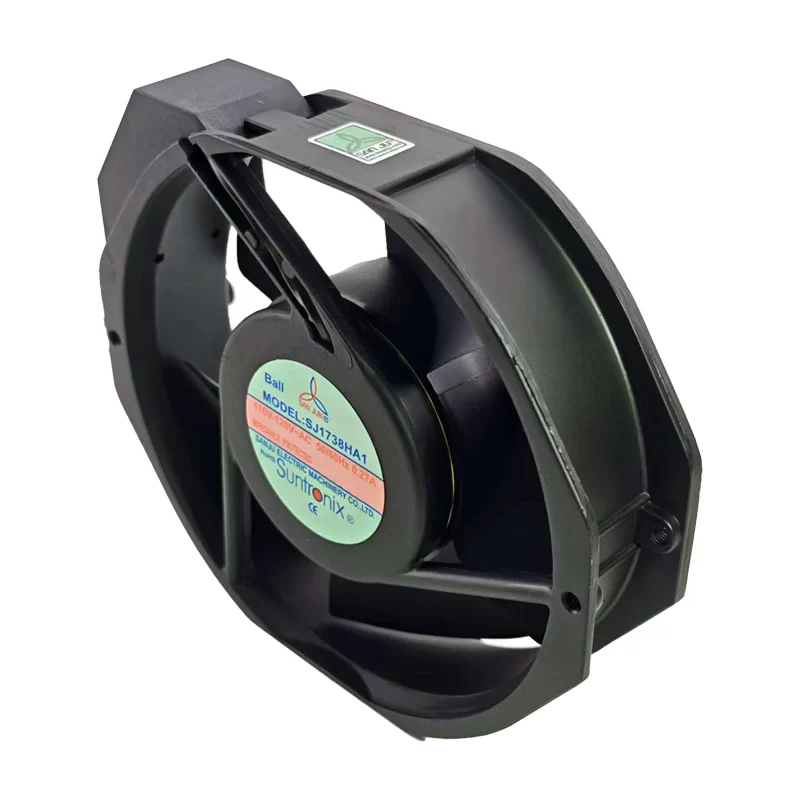

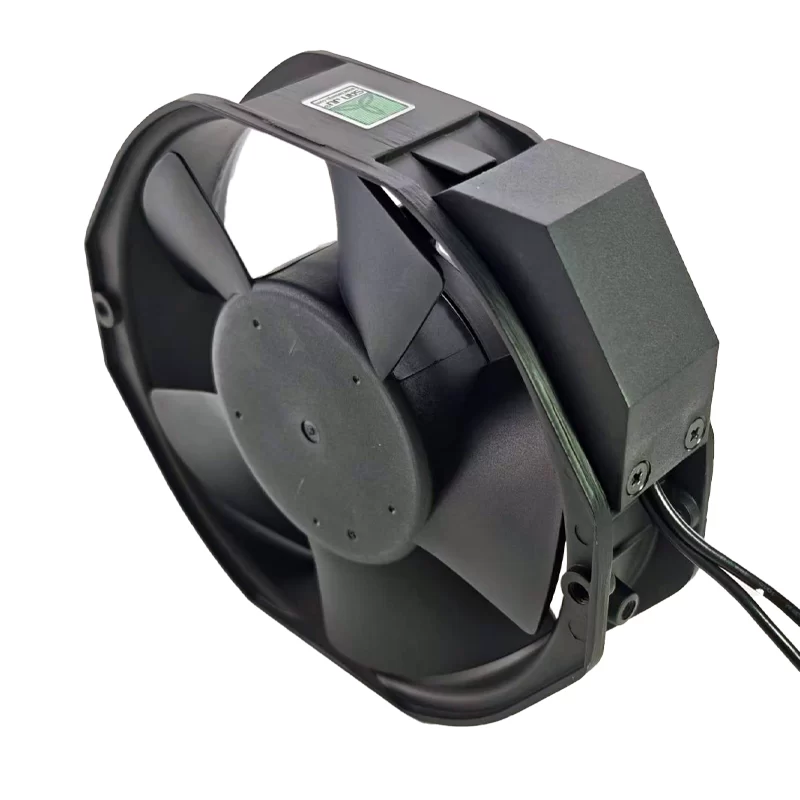

The SANJUN SJ1738HA1 is a robust AC axial fan, precisely measuring 172mm x 152mm x 38mm, and featuring durable ball bearings for reliable operation. It functions on 110V to 120V AC power at both 50 Hz and 60 Hz frequencies. At 50 Hz, it draws 0.25A of current, consumes 30W of power, operates at 2850 RPM, and delivers 175 CFM of airflow with a static pressure of 0.65 inch H2O, generating 54 dB(A) of noise. When running at 60 Hz, the fan draws 0.22A, consumes 24W, achieves 3400 RPM, provides 220 CFM of airflow with 0.75 inch H2O static pressure, and produces 58 dB(A) of noise. This efficient fan weighs 760g and is engineered for effective air movement in various industrial cooling environments.
SJ1738HA1 Fan Parameters
Model: SJ1738HA1
Manufacturer: SANJUN
Type: AC Fan
Dimensions: 172 x 152 x 38 mm
Rated Voltage: 110-120V AC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.25A / 0.22A
Power Consumption (50Hz / 60Hz): 30 W / 24 W
Speed (50Hz / 60Hz): 2850 RPM / 3400 RPM
Airflow (50Hz / 60Hz): 175 CFM / 220 CFM
Static Pressure (50Hz / 60Hz): 0.65 inch H2O / 0.75 inch H2O
Noise Level (50Hz / 60Hz): 54 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Weight: 760g
