Description

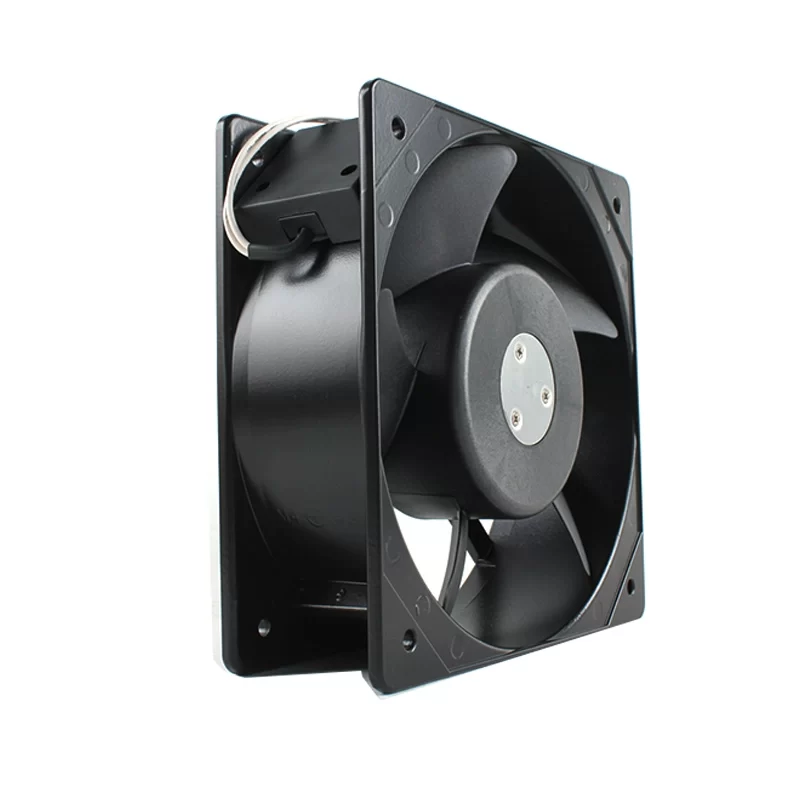

The Shengkwei SK205AP-22-1 is a high-performance AC tube axial fan with a frame measuring 205 x 205 x 72 mm. It operates on a 220V AC power supply within a range of 200-240V at dual frequencies of 50/60 Hz. At 50 Hz, it draws 0.30 A of current, consumes 65 W of power, and delivers an airflow of 620 CFM (17.5 m3/min) at a static pressure of 24.6 mm-H₂O (0.97 inch−H2O). At 60 Hz, it draws 0.49 A, consumes 102 W, and provides an airflow of 670 CFM (19.0 m3/min) at a static pressure of 13.0 mm-H₂O (0.51inch−H2O). The fan operates with a noise level of 68/72 dB(A) and features a reliable two-ball bearing system with a life expectancy of 60,000 hours at 40°C.
SK205AP-22-1 Fan Parameters
Manufacturer: Shengkwei
Model: SK205AP-22-1
Fan Type: AC Tube Axial Fan
Dimensions: 205 x 205 x 72 mm
Rated Voltage: 220V AC
Operating Voltage Range: 200-240 V
Frequency: 50/60 Hz
Current Rating: 0.30 A (50 Hz), 0.49 A (60 Hz)
Power Consumption: 65 W (50 Hz), 102 W (60 Hz)
Airflow: 620 CFM (50 Hz), 670 CFM (60 Hz)
Static Pressure: 24.6 mm-H₂O (50 Hz), 13.0 mm-H₂O (60 Hz)
Speed: 2850 RPM (50 Hz), 3250 RPM (60 Hz)
Noise Level: 68 dB(A) (50 Hz), 72 dB(A) (60 Hz)
Weight: 2.1 kg
Bearing Type: Two-ball bearing
Termination: 2-Wire Leads
Connection: T-Terminal push-on type or W-Lead wire type
Housing Material: Die-cast aluminum, Painted black (AP) or Plated (AN)
Impeller Material: PC thermoplastic + glass fiber, UL 94V-0
Operating Temperature: -20 °C to 70 °C
Service Life: 60000 h at 40 °C
Dielectric Strength: 1 min. at 1,500VAC, 50/60Hz
Approval: UL, CUL, TUV, CE, RoHS
Application
The SK205AP-22-1 fan is suitable for cabinet cooling, HVAC systems, and industrial control panels where robust and powerful ventilation is required.
