Description

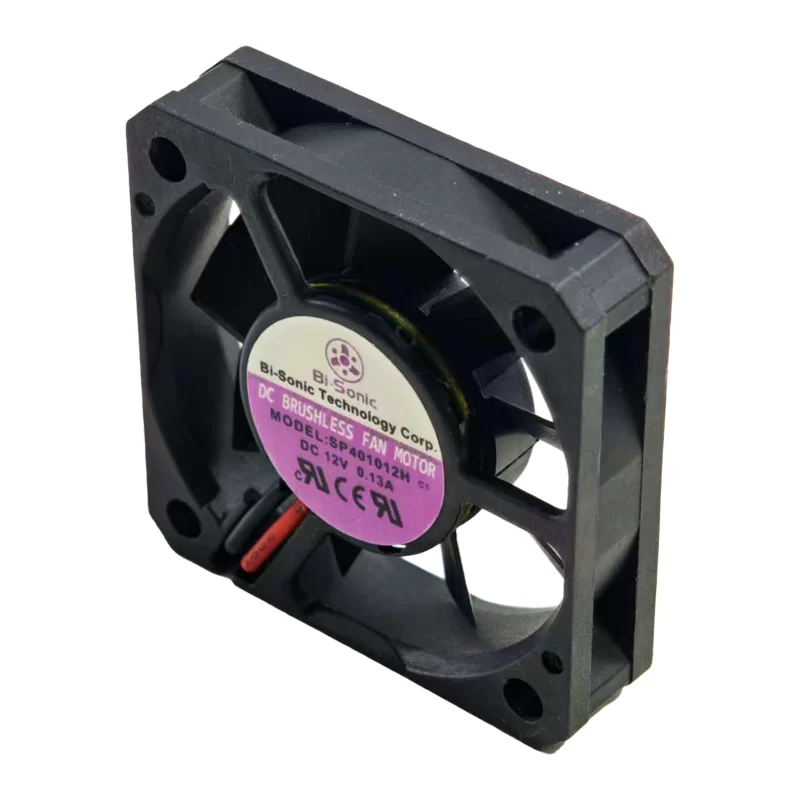

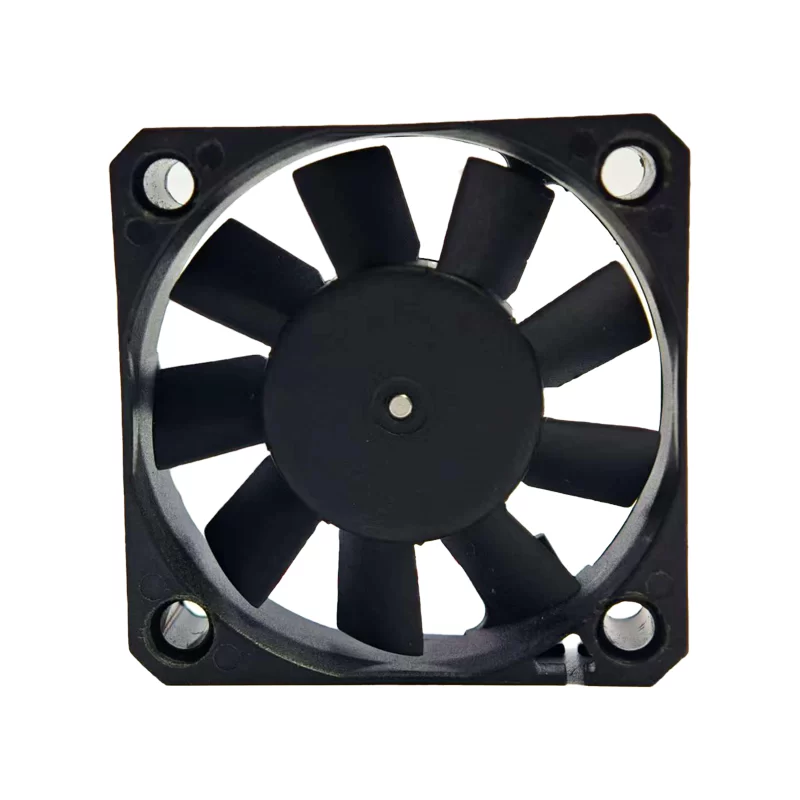

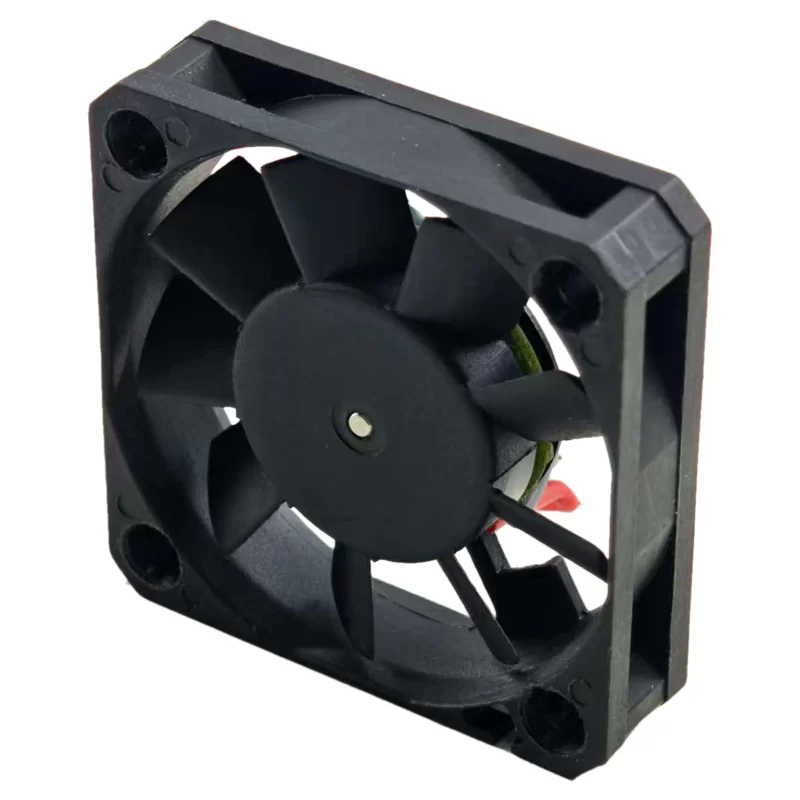

The Bi-Sonic SP401012H is a compact 12VDC axial fan with dimensions of 40x40x10mm. It is designed to overcome significant resistance, providing 7.0CFM (11.9m³/h) of airflow and generating a very high static pressure of 3.4inchH₂O (847Pa) at a speed of 6500RPM. The fan consumes 1.56W of power, draws 0.13A of current, and is made entirely of plastic. It is terminated with two wire leads for power connection. This fan is suitable for applications requiring strong, concentrated airflow to cool components in highly restrictive environments.
SP401012H Fan Parameters
Manufacturer: Bi-Sonic
Model: SP401012H
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12 VDC
Current Rating: 0.13 A
Power Consumption: 1.56 W
Airflow: 7.0 CFM (11.9 m³/h)
Static Pressure: 3.4 inch H₂O (847 Pa)
Speed: 6500 RPM
Noise Level: 29 dB(A)
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Weight: 18 g
Application: This Bi-Sonic DC axial fan is suitable for applications requiring strong, concentrated airflow to cool components in highly restrictive environments.
