Description

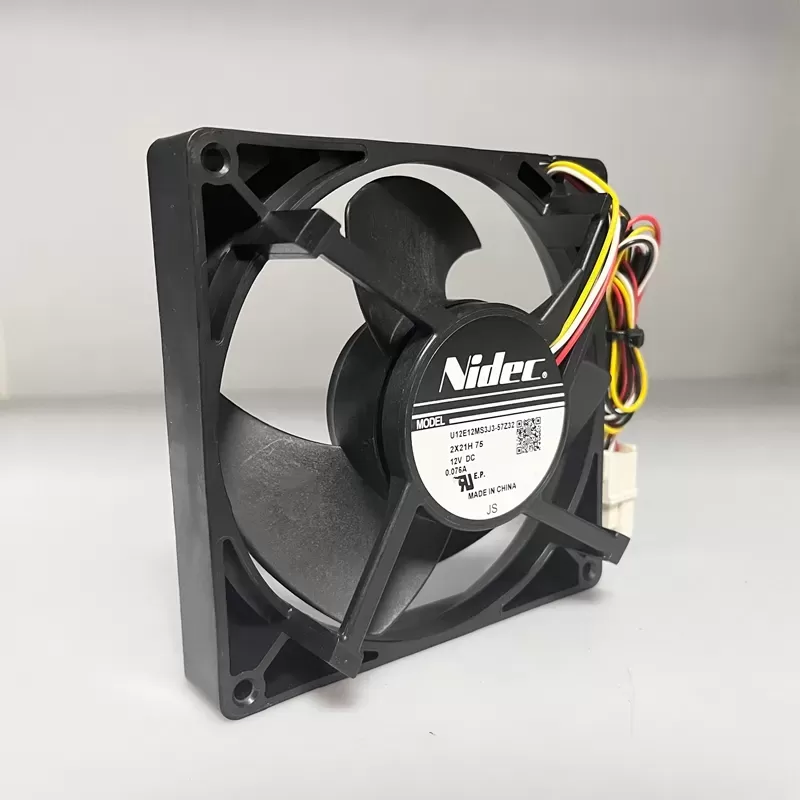

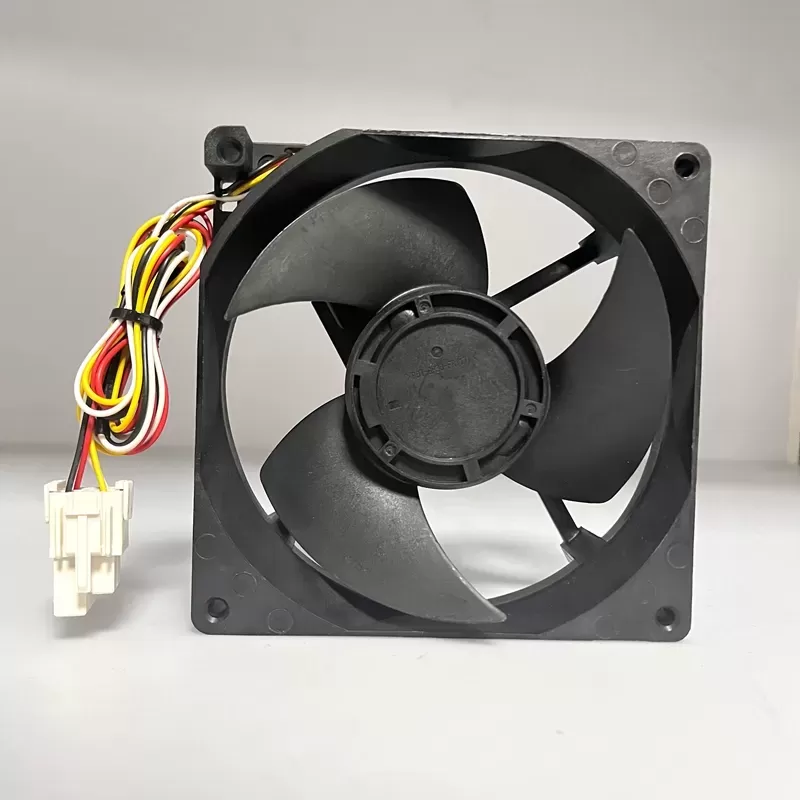

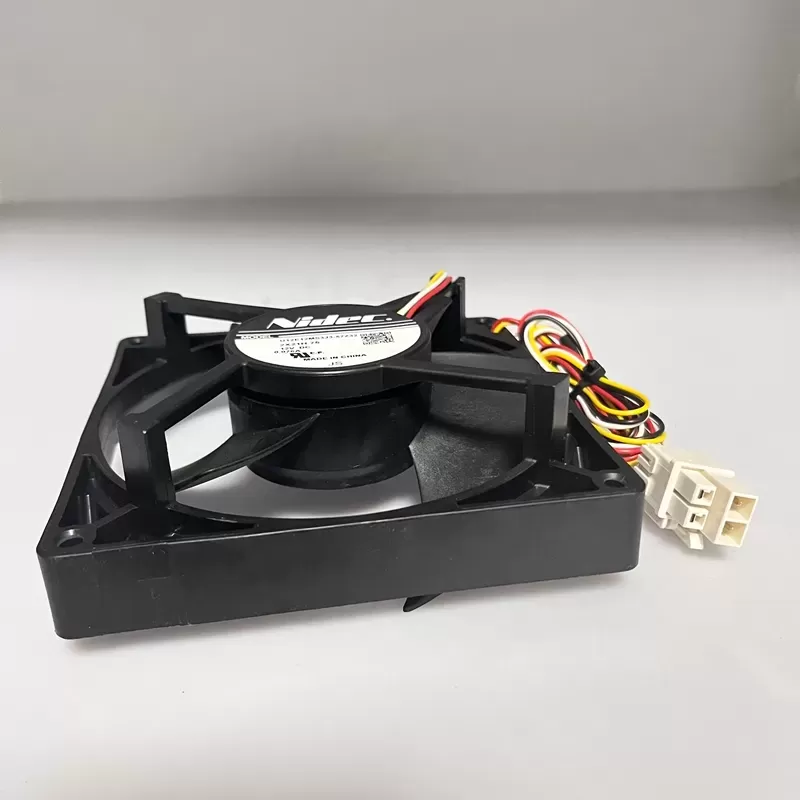

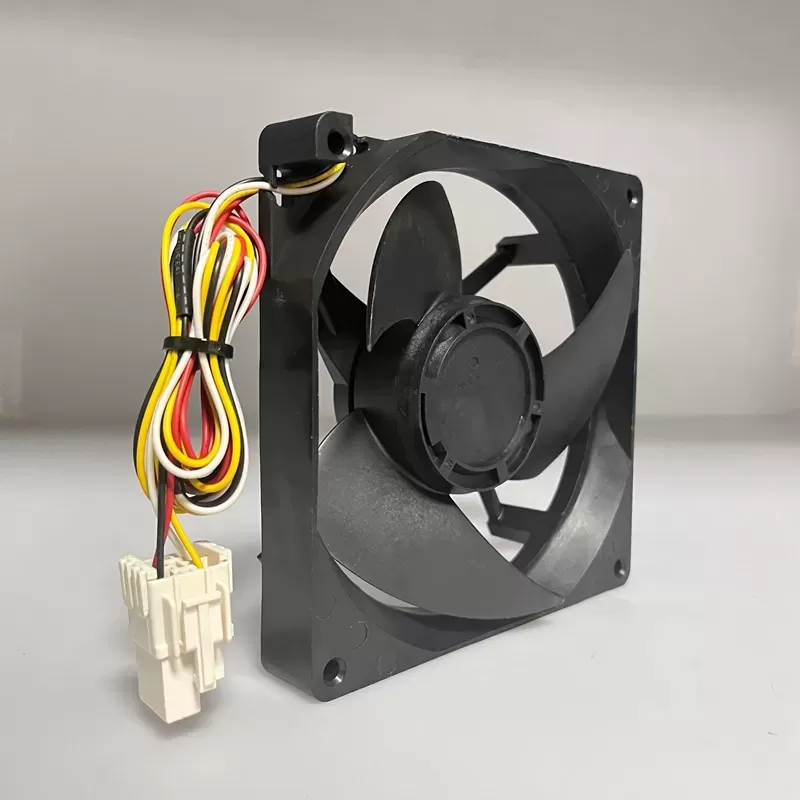

The Nidec U12E12MS3J3-57Z32 is a 12V DC axial cooling fan, widely used in refrigerators and similar home appliances for efficient thermal management. This fan measures approximately 120mm x 120mm and is designed to operate with very low power consumption, drawing 0.076A at 12V. Its 4-wire connection typically provides power, ground, a tachometer output for speed monitoring, and a PWM input for speed control, enabling flexible integration into appliance control systems. Nidec fans are generally recognized for their reliable operation and quiet performance, making them suitable for residential use.
Model Number: U12E12MS3J3-57Z32
Manufacturer: Nidec Corporation
Type: DC Axial Cooling Fan
Dimensions: Approximately 120mm x 120mm
Rated Voltage: 12V DC
Rated Current: 0.076A
Rated Power: 0.912W
Connector: 4-Wire Leads (with Tachometer Output and PWM Control Input)
Bearing Type: Ball Bearings
Application: Refrigerator cooling fan, home appliances.
