Description

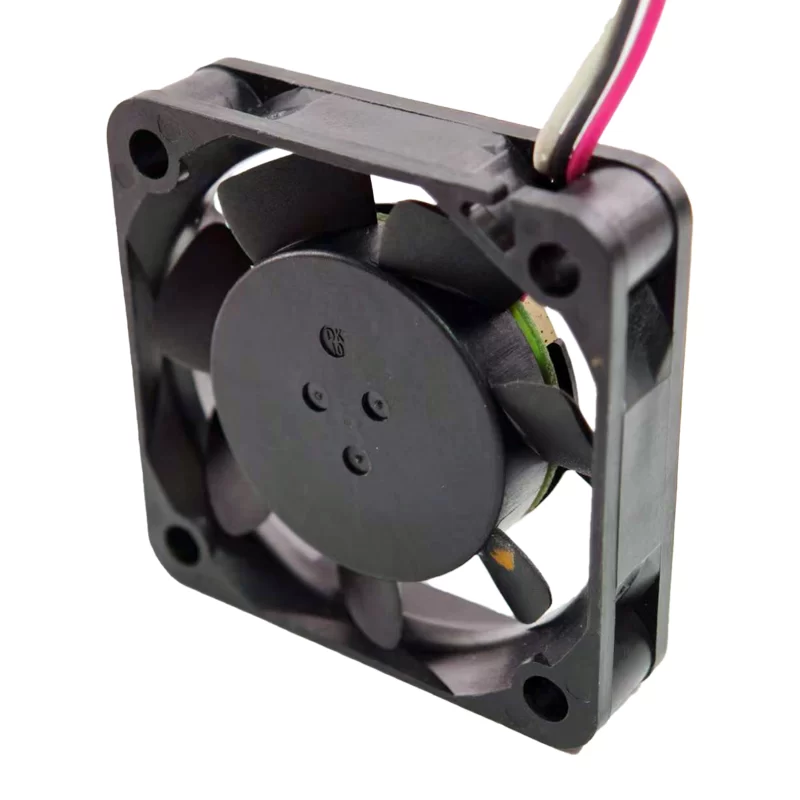

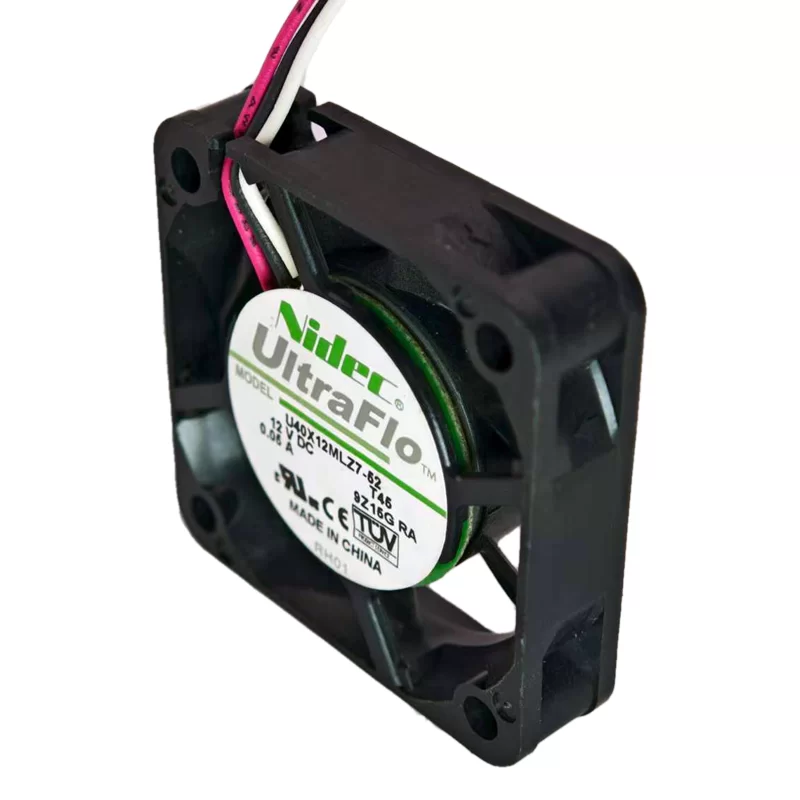

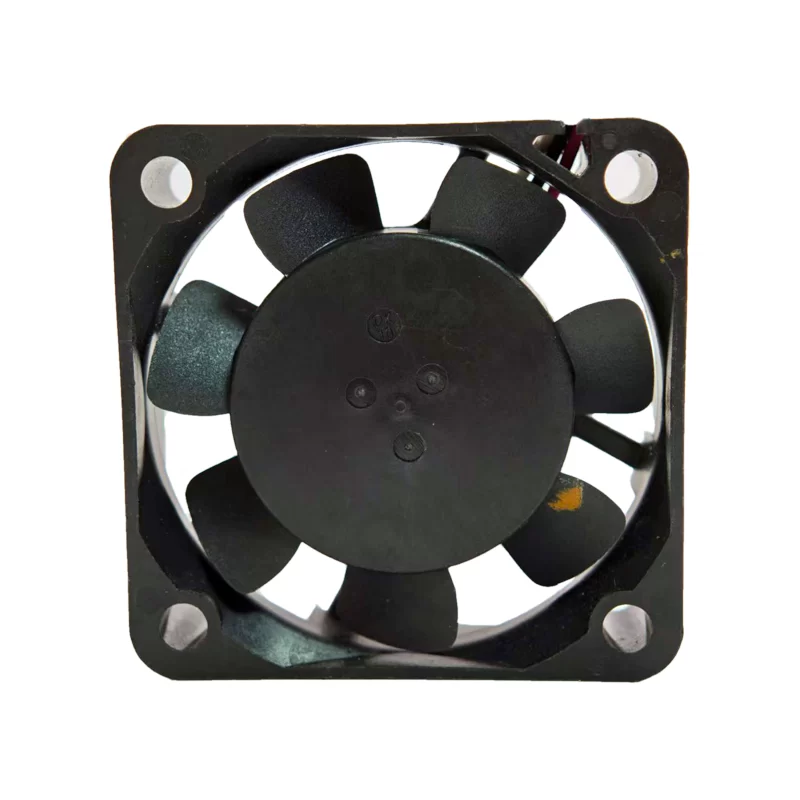

The Nidec U40X12MLZ7-52 is a DC Axial Fan with dimensions of 40x40x10mm. It operates on 12VDC, drawing 0.5A of current with a power consumption of 6W. This fan delivers an airflow of 3.88CFM and generates a static pressure of 20 Pa (0.08 in H2O). It achieves a speed of 5000RPM with a low noise level of 16dBA. It features 3 wire leads for termination. This ultra-compact fan is ideal for cooling in highly space-constrained electronic devices, micro-servers, and other applications requiring efficient and quiet DC airflow.
U40X12MLZ7-52 Fan Parameters
Model: U40X12MLZ7-52
Manufacturer: Nidec
Series: UltraFlo
Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Nominal Voltage: 12 V DC
Current Draw: 0.5 A
Power Consumption: 6 W
Airflow: 3.88 CFM
Static Pressure: 20 Pa (0.08 in H2O)
Speed: 5000 RPM
Noise: 16 dBA
Termination: 3 Wire Leads
Application: Highly space-constrained electronic devices, micro-servers, compact cooling.
