Description

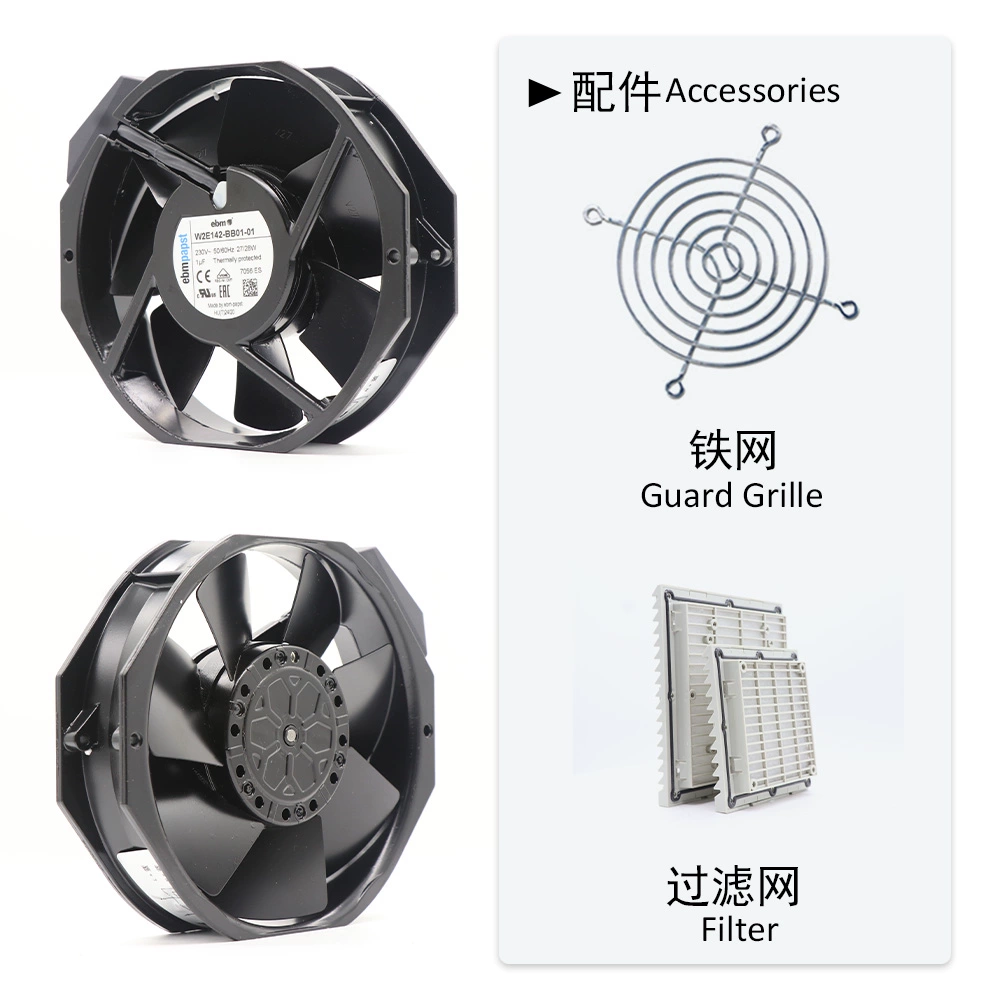

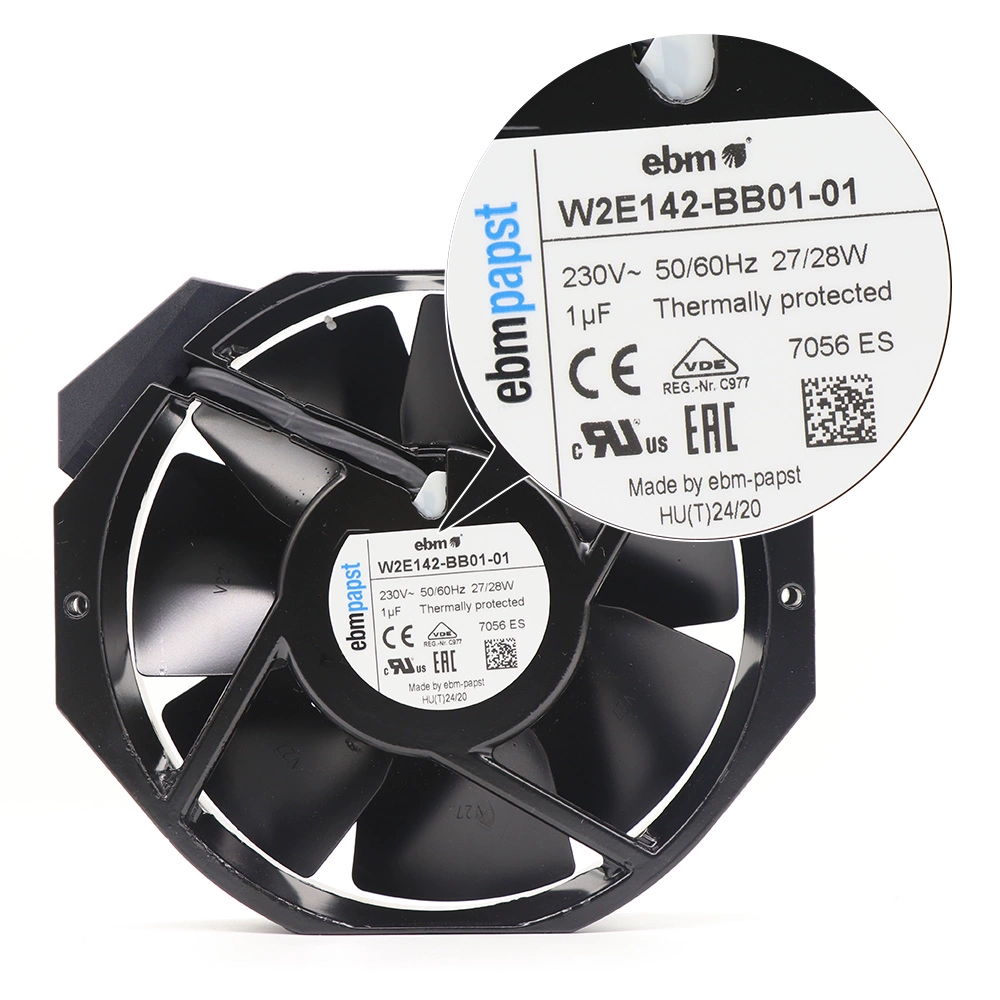

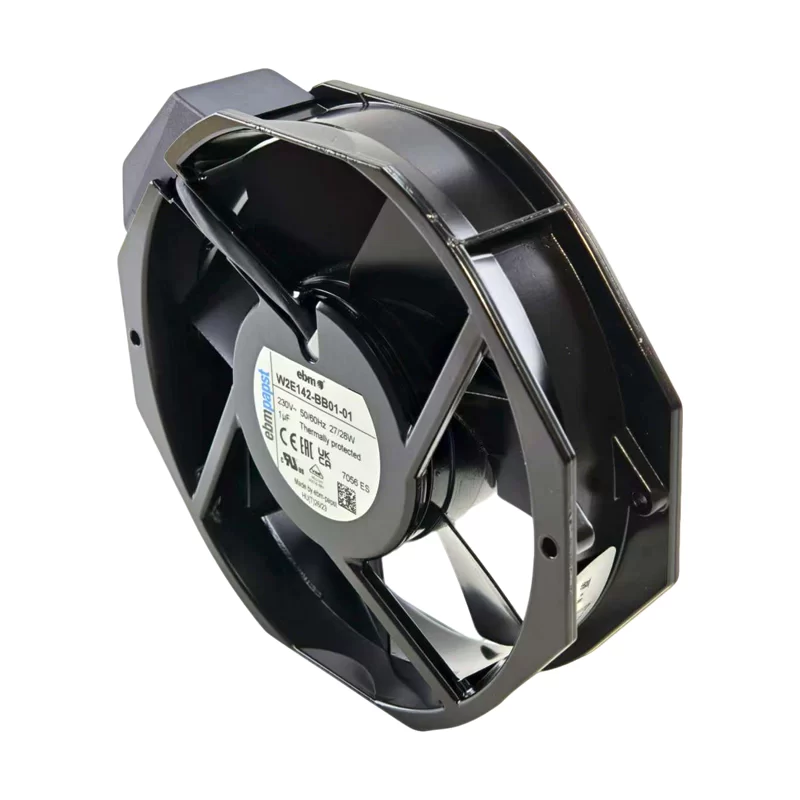

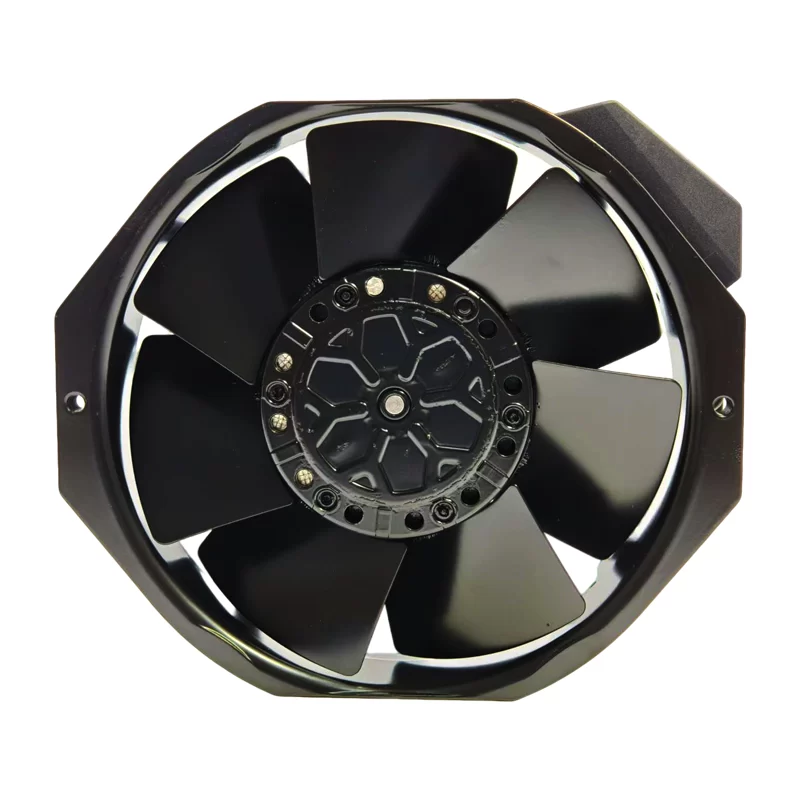

The ebmpapst W2E142-BB01-01 is a compact and efficient 172x150x38mm AC axial fan designed for cooling in diverse applications such as control panels, inverters, and refrigeration units. Operating on a 230V AC (1-phase) power supply, this fan draws 0.12A (50Hz) or 0.13A (60Hz) of current, consuming 27W (50Hz) or 28W (60Hz) of power. It achieves rotational speeds of 2800 RPM (50Hz) and 3350 RPM (60Hz). Utilizing durable ball bearings and an IP22 degree of protection, this model ensures a long operational life and reliable performance.
W2E142-BB01-01 Fan Parameters
Model Number: W2E142-BB01-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 172mm x 150mm x 38mm
Motor: M2E052-BF
Rated Voltage: 230 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 0.12A (50Hz) / 0.13A (60Hz)
Rated Power: 27 W (50Hz) / 28 W (60Hz)
Speed: 2800 RPM (50Hz) / 3350 RPM (60Hz)
Bearing Type: Ball Bearing
Rotor Material: Coated in black
Blade Material: Sheet steel

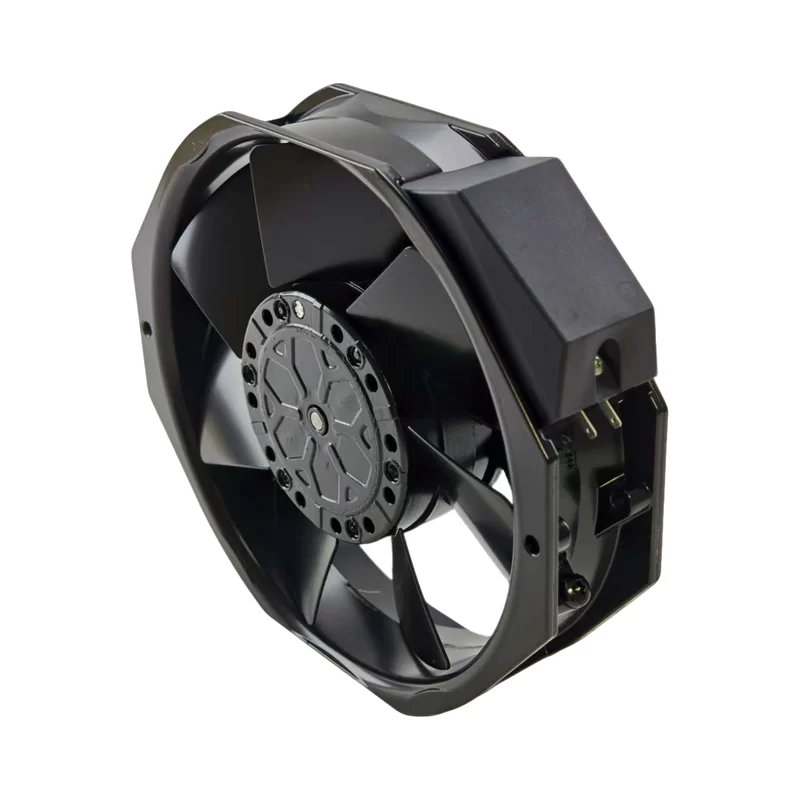

Connection: Terminals
Motor Protection: Thermal overload protector (TOP) internally wired
Operating Temperature: -30°C to +70°C
Degree of Protection: IP22
Insulation Class: “B”
Application: Control panels, inverters, refrigeration units, general electronic cooling, heat exchangers.
