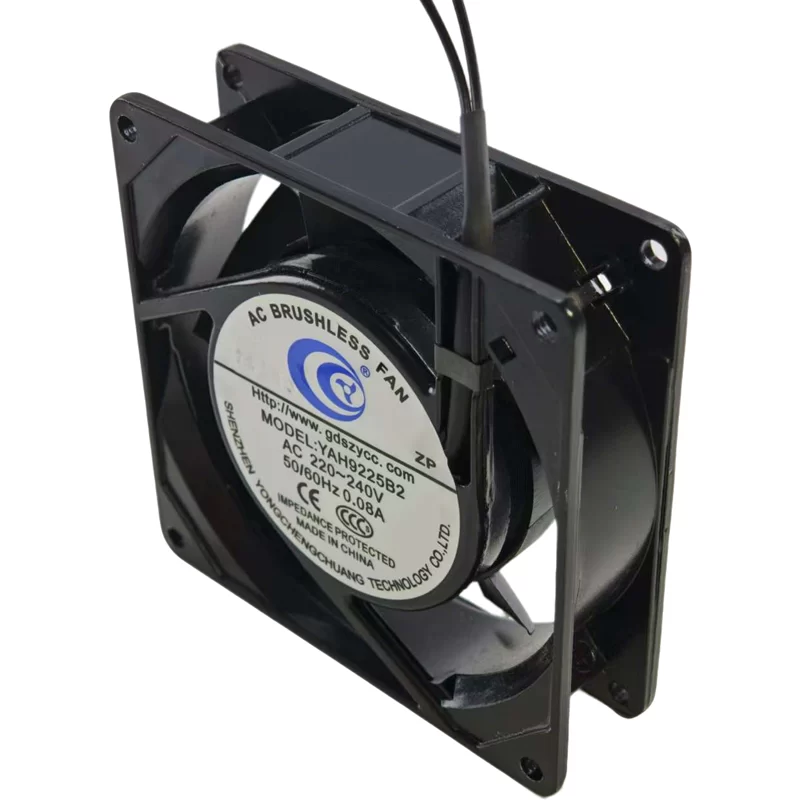

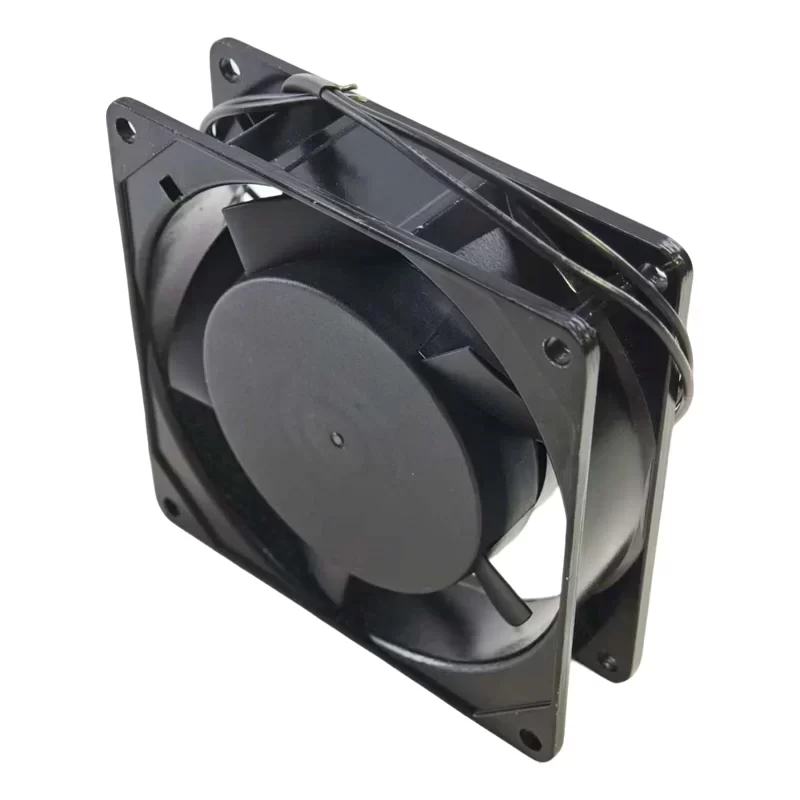

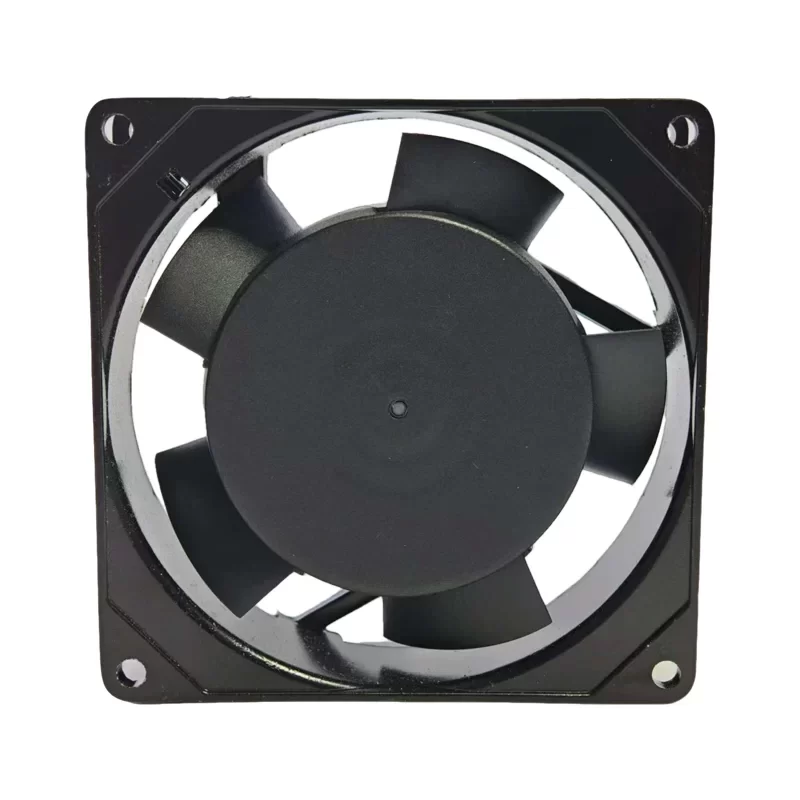

YAH9225B2 YCCFAN 220-240V AC Axial Fan

Description

The YCCFAN YAH9225B2 is an AC axial fan with dimensions of 92x92x25mm. It is designed for operation at 220-240VAC, with performance specifications varying between 50Hz and 60Hz frequencies. At 50Hz, the fan draws 0.08A of current, consumes 16W of power, provides 51m³/h (30CFM) of airflow, achieves 32.4Pa (3.30mmH₂O) of static pressure, and operates at 2500RPM with a noise level of 32dB(A). When operating at 60Hz, it draws 0.07A of current, consumes 15W of power, delivers 63m³/h (37CFM) of airflow, achieves 47.4Pa (4.83mmH₂O) of static pressure, and runs at 2900RPM with a noise level of 37dB(A). This fan utilizes durable ball bearings and features a die-cast aluminum frame with a plastic impeller. It is terminated with two wire leads, suitable for ambient temperatures from -10 to 70°C, and has an expected life of 70,000hours at 40°C.

YAH9225B2 Fan Parameters
Manufacturer: YCCFAN
Model: YAH9225B2
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50 Hz / 60 Hz

Performance at 50 Hz:
Current Rating: 0.08 A
Power Consumption: 16 W
Airflow: 51 m³/h (30 CFM)
Static Pressure: 32.4 Pa (3.30 mmH₂O)
Speed: 2500 RPM
Noise Level: 32 dB(A)

Performance at 60 Hz:
Current Rating: 0.07 A
Power Consumption: 15 W
Airflow: 63 m³/h (37 CFM)
Static Pressure: 47.4 Pa (4.83 mmH₂O)
Speed: 2900 RPM
Noise Level: 37 dB(A)

Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Die-cast Aluminum Frame
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 70,000 Hours (at 40°C)
Weight: 0.24 kg
Approval Agency: CE, UL, cUL, TUV
Application: This YCCFAN AC axial fan is suitable for various cooling applications in industrial equipment, control cabinets, power supplies, and telecommunication systems.
