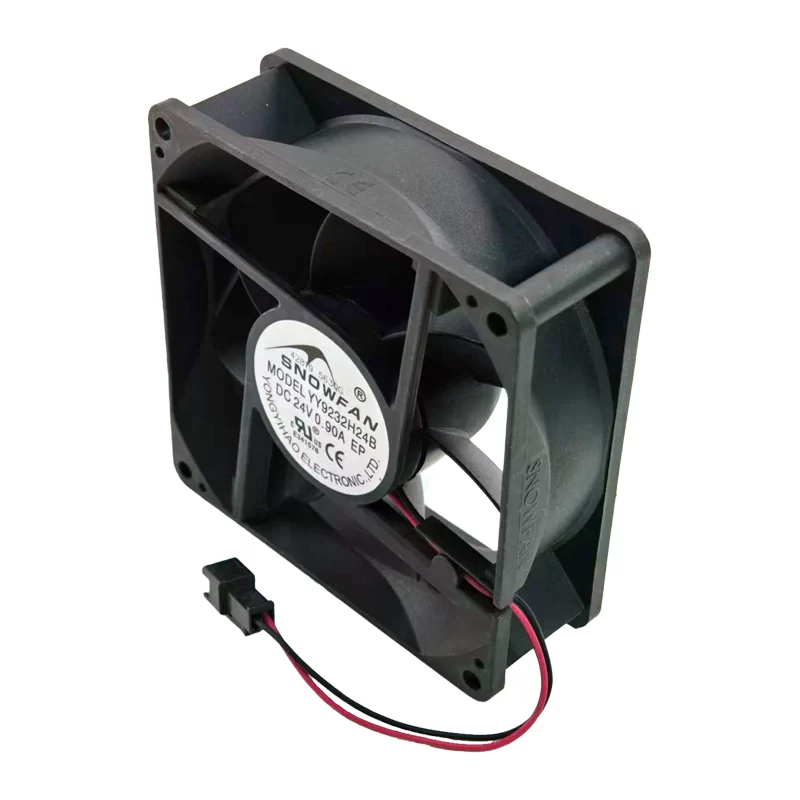

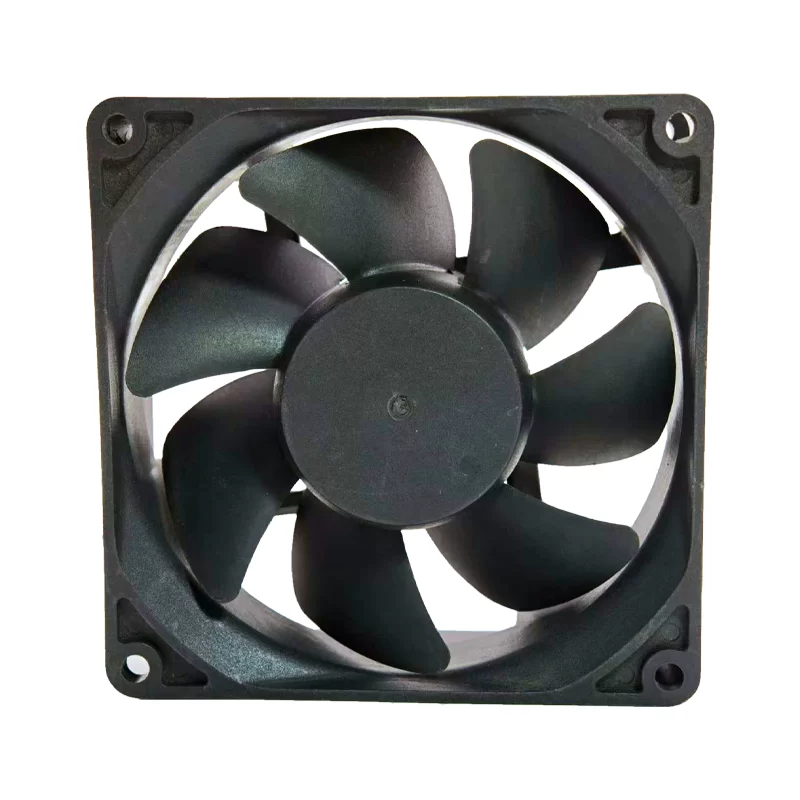

YY9232H24B SNOWFAN 24V DC Axial Fan

Description

The SNOWFAN YY9232H24B is a high-performance 24V DC Axial Fan with dimensions of 92×92×32 mm. Operating at its rated 24 VDC, it draws a nominal current of 0.90 A, resulting in a powerful 21.6 W consumption. Featuring a 7-bladed plastic impeller and a durable Ball Bearing system, this model delivers a robust cooling solution for demanding industrial and electronic applications.

YY9232H24B Fan Parameters
Model: YY9232H24B
Manufacturer: SNOWFAN
Fan Type: DC Axial Fan
Dimensions: 92×92×32 mm
Nominal Voltage: 24 VDC
Rated Current: 0.90 A
Rated Power: 21.6 W
Number of Blades: 7
Frame Material: Plastic
Impeller Material: Plastic
Bearing System: Ball Bearing
Termination Type: 2 Wires
Operating Temperature: −10∘ C to +70∘C
Safety Approvals: CE, CSA, UL, VDE

Application
The YY9232H24B is specifically designed for high-power cooling requirements in applications such as industrial control cabinets, automation equipment, power supplies, and inverters, where a reliable 24V DC fan is needed to handle high thermal loads.
