Description

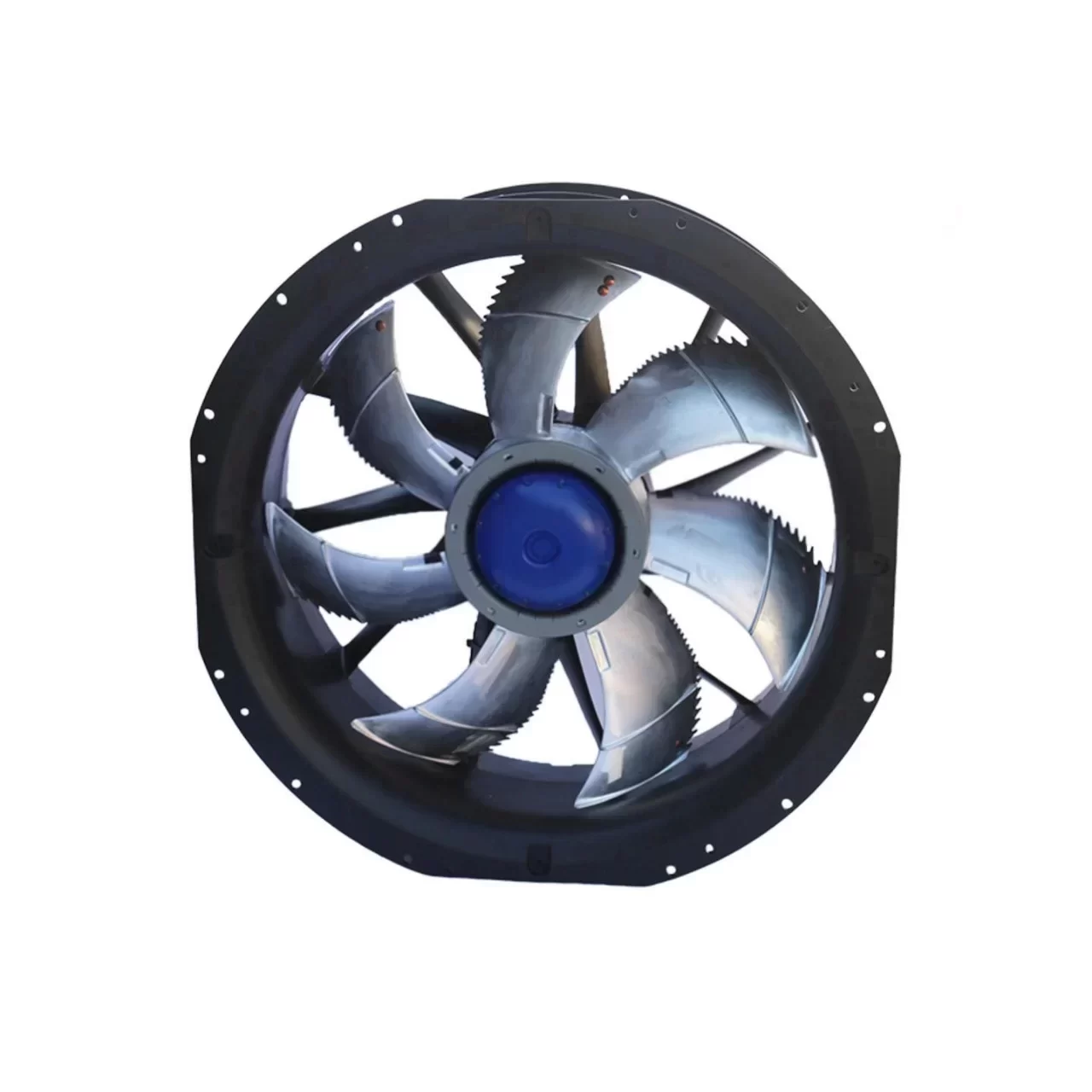

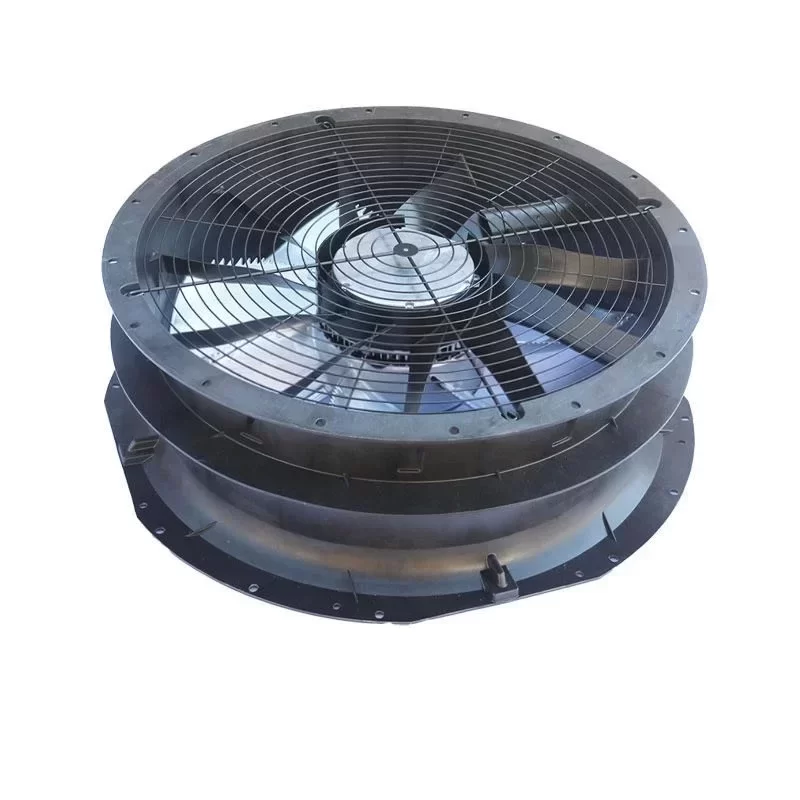

The ZIEHL-ABEGG ZN080-ZIL.GL.V7P3 is a heavy-duty 3~ 380 – 480 VAC EC Axial Fan featuring an 800 mm duct-mounted ZAplus design. Constructed with a highly corrosion-resistant composite material housing and an FE2owlet bionic blade impeller, it has a weight of 52.0 kg. Driven by a highly efficient ECblue external rotor motor with an integrated controller, it draws a current of 4.60 – 3.60 A with a rated power of 2900 W. Operating at a nominal speed of 1100 RPM, it produces a massive max. air flow of 16191 CFM (27509 m³/h / 458.48 m³/min) and a max. static pressure of 32.63 mmH₂O (320.00 Pa / 1.28 inAq). Engineered for an operating temperature range of -25 to +60 °C, it features 0-10V speed control, an IP55 degree of protection, and conforms to ErP 2015, CE, UL, and VDE standards.
ZN080-ZIL.GL.V7P3 Fan Parameters
Manufacturer: ZIEHL-ABEGG
Model Number: ZN080-ZIL.GL.V7P3
Part Number: 180812
Type: EC Axial Fan (ZAplus)
Impeller Size: 800 mm
Weight: 42.0 kg
Housing Material: Corrosion-resistant composite material
Impeller Material: Composite material (FE2owlet bionic blade design)
Motor Type: ECblue (External rotor with integrated controller)
Bearing Type: Ball Bearing
Speed Control: 0-10V / PWM
Nominal Voltage: 3~ 380 – 480 VAC
Frequency: 50 / 60 Hz
Current Draw: 4.60 – 3.60 A
Power Consumption: 2900 W
Speed: 1100 RPM
Max. Air Flow: 16191 CFM (27509 m³/h / 458.48 m³/min)
Max. Static Pressure: 32.63 mmH₂O (320.00 Pa / 1.28 inAq)
Degree of Protection: IP55
Operating Temperature: -25 to +60 °C
Agency Approvals: CE, UL, VDE, CCC, ErP 2015 Compliant
Application
The ZIEHL-ABEGG ZN080-ZIL.GL.V7P3 is deployed in large-scale industrial HVAC systems, heavy-duty refrigeration units, data center cooling, agriculture ventilation, and air conditioning condensers requiring massive airflow and energy efficiency.
