Description

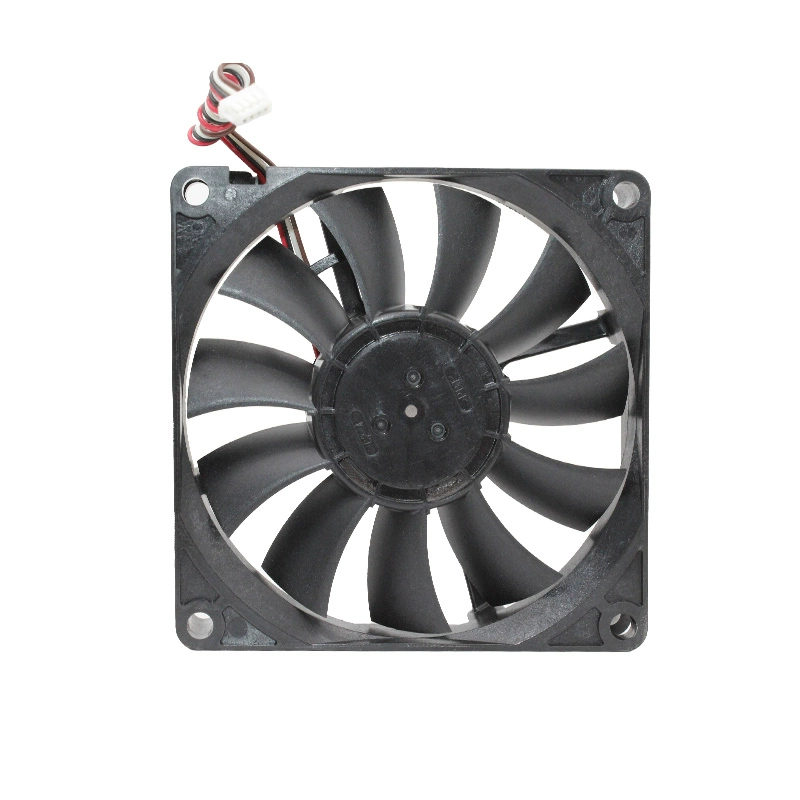

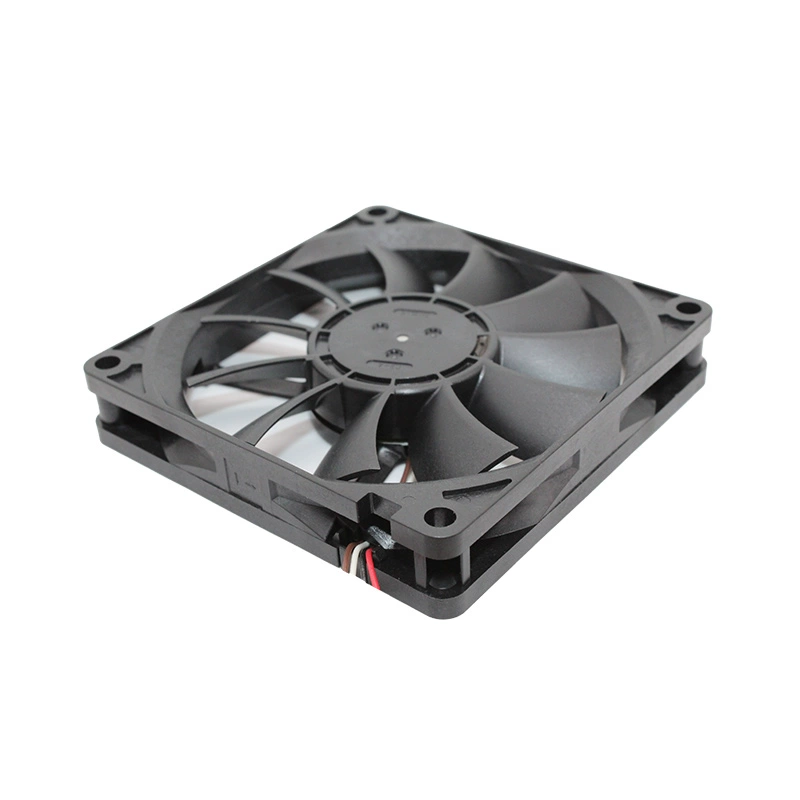

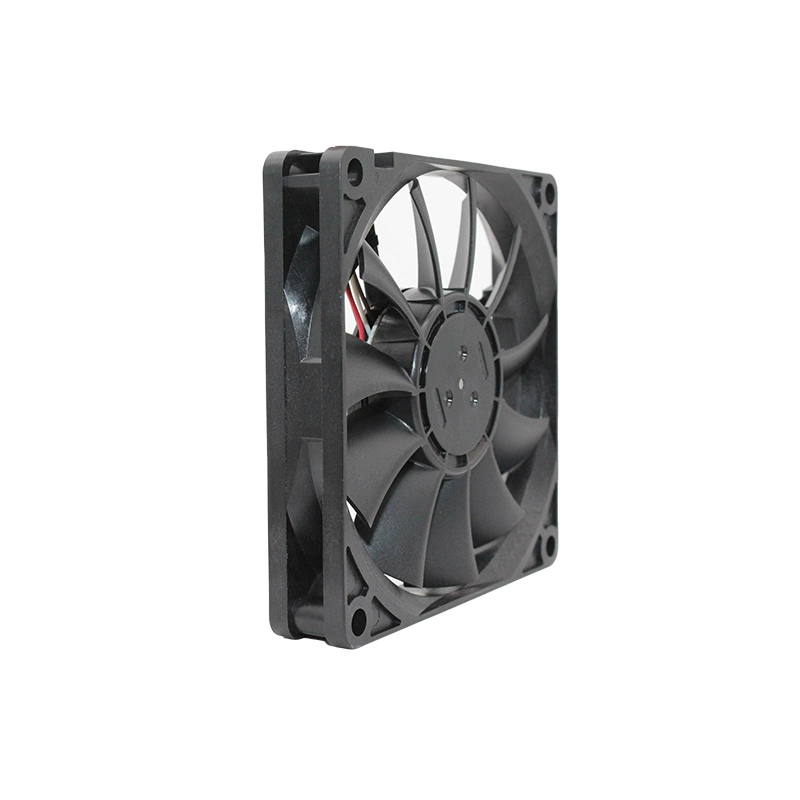

The NMB 08015SS-12N-AU-04 is a compact high-performance 12V DC axial cooling fan. Measuring 80mm x 80mm x 15mm, this fan is designed for efficient cooling in space-constrained applications where good airflow is needed, such as compact servers, networking equipment, and other electronic assemblies. It operates at a rated voltage of 12V DC and draws a current of 0.28A, resulting in a power consumption of 3.36W. This allows it to achieve a rotational speed of 3650 RPM, delivering an airflow of 33.5 CFM and a static pressure of 0.15 inch-H2O. Its noise level is 32.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 60,000 hours at 60°C. It comes with 4-wire leads for power, ground, PWM speed control, and a tachometer output for speed monitoring, along with auto-restart, polarity protection, and alarm output features.
Model Number: 08015SS-12N-AU-04
Manufacturer: NMB Technologies Corporation (Minebea)
Series: SS Series
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 15mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.28A
Rated Power: 3.36W
Speed: 3650 RPM
Airflow: 33.5 CFM (0.95 m³/min)
Static Pressure: 0.15 inch-H2O (37 Pa)
Noise Level: 32.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, PWM Control, Tachometer Output, Alarm Output
Operating Temperature: -10°C to +70°C
Weight: 70g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
