Description

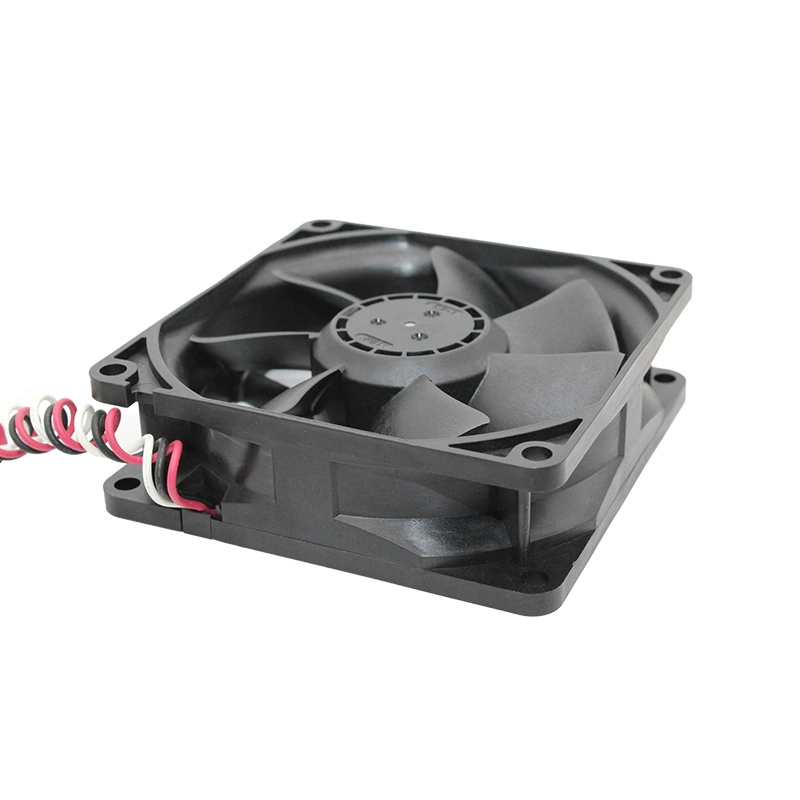

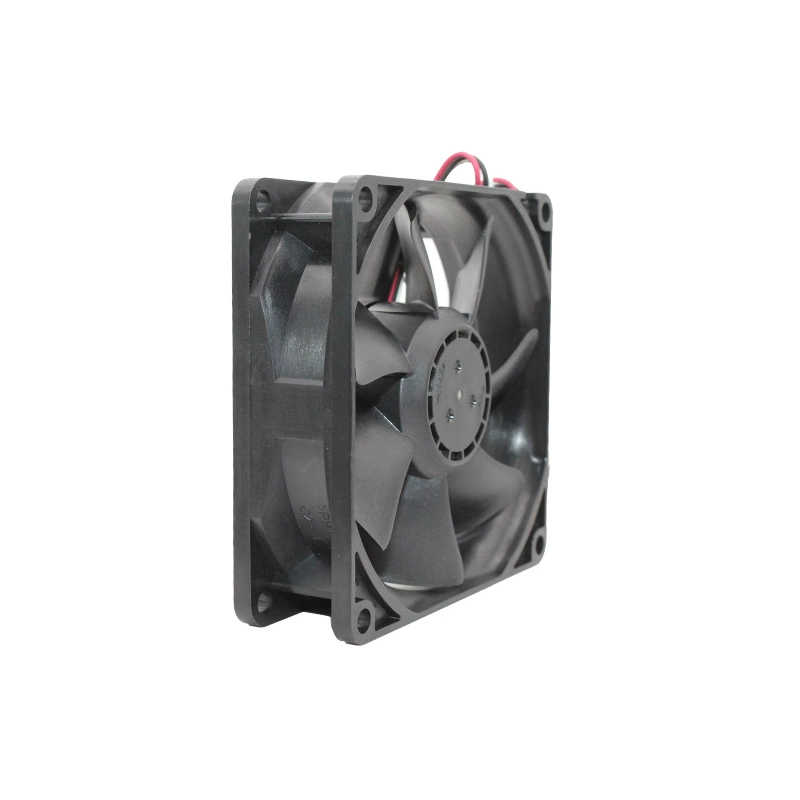

The NMB 08025SA-24R-ET-D0 is a high-performance 24V DC axial cooling fan. Measuring 80mm x 80mm x 25mm, this fan is designed for effective cooling in various electronic systems, servers, and industrial equipment where a balance of significant airflow and manageable noise is required. It operates at a rated voltage of 24V DC and draws a current of 0.22A, resulting in a power consumption of 5.28W. This allows it to achieve a rotational speed of 5000 RPM, delivering an airflow of 66.0 CFM and a static pressure of 0.43 inch-H2O. Its noise level is 46.0 dBA. The fan features durable ball bearings for an operational lifespan of 40,000 hours at 60°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart functionality.
Model Number: 08025SA-24R-ET-D0
Manufacturer: NMB Technologies Corporation
Series: SA Series
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 26.4V DC
Rated Current: 0.22A
Rated Power: 5.28W
Speed: 5000 RPM
Airflow: 66.0 CFM (1.87 m³/min)
Static Pressure: 0.43 inch-H2O (107 Pa)
Noise Level: 46.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer Output)
Operating Temperature: -10°C to +60°C
Weight: 80g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
