Description

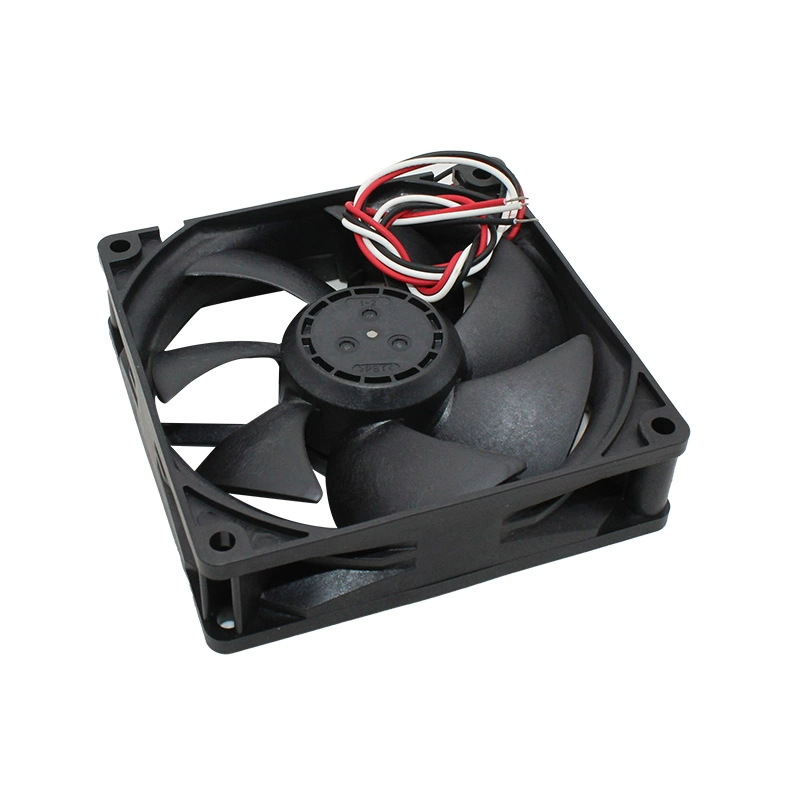

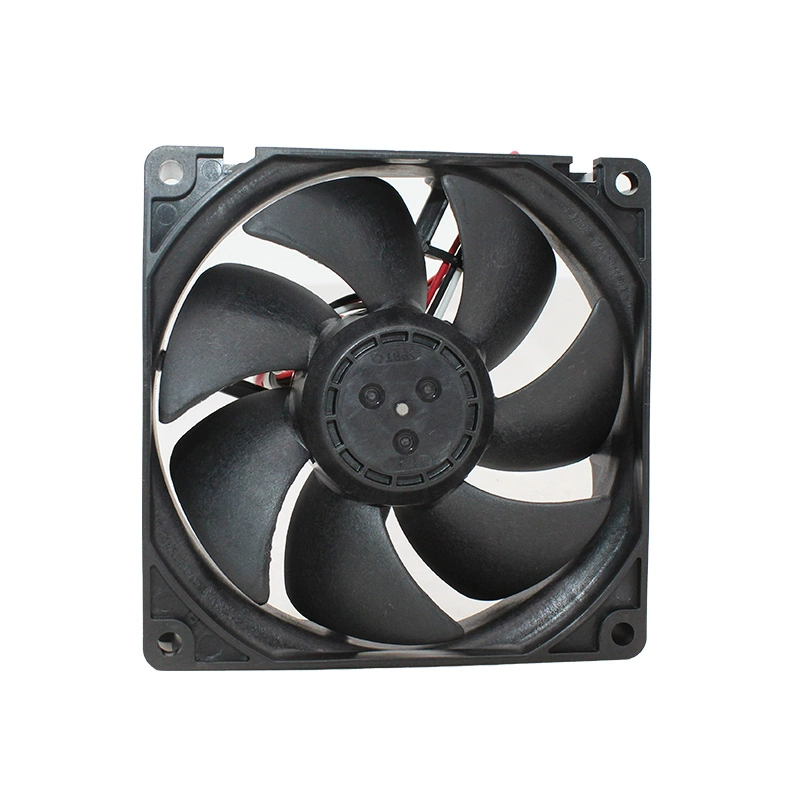

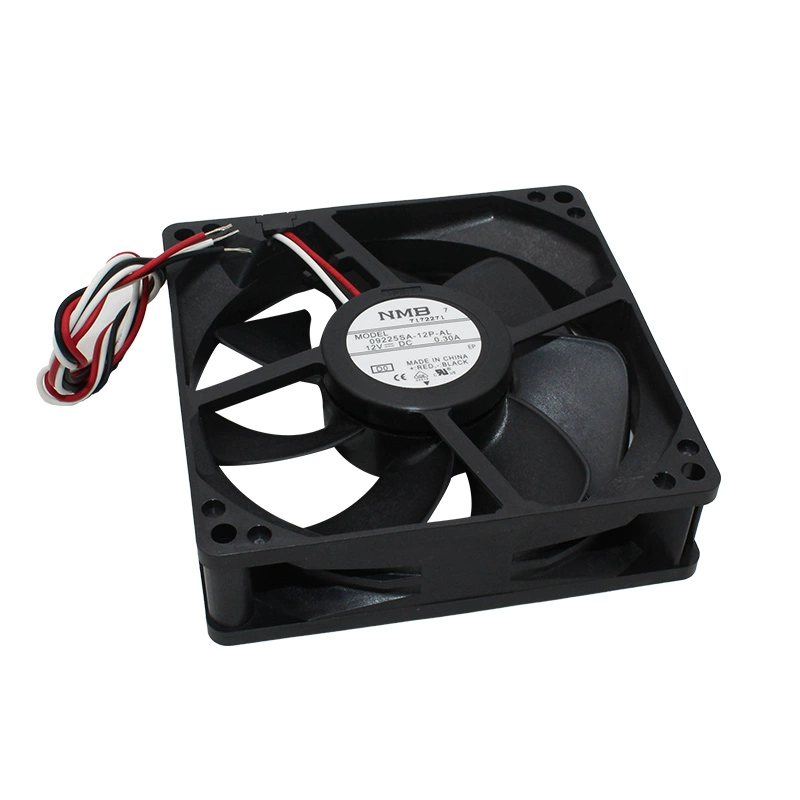

The NMB 09225SA-12P-AL-D0 is a 12V DC axial cooling fan with dimensions of 92mm x 92mm x 25mm. Operating at a rated current of 0.30A (3.6W), this unit delivers 58.0 CFM of airflow at a rotational speed of 3200 RPM. Its noise output is 37.0 dBA, and it provides a static pressure of 0.177 inch-H2O (44 Pa). The fan is equipped with ball bearings for a life expectancy of 100,000 hours at 25°C. Connectivity is via 3-wire leads, which include a pulse sensor for speed monitoring. Integrated features include auto-restart and polarity protection, ensuring reliable thermal management and crucial system feedback.
Model Number: 09225SA-12P-AL-D0
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage: 6V to 13.2V DC
Rated Current: 0.30A
Rated Power: 3.6W
Speed: 3200 RPM
Airflow: 58.0 CFM / 1.64 m³/min
Static Pressure: 0.177 inch-H2O / 44 Pa
Noise Level: 37.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor, Auto Restart, Polarity Protection
