Description

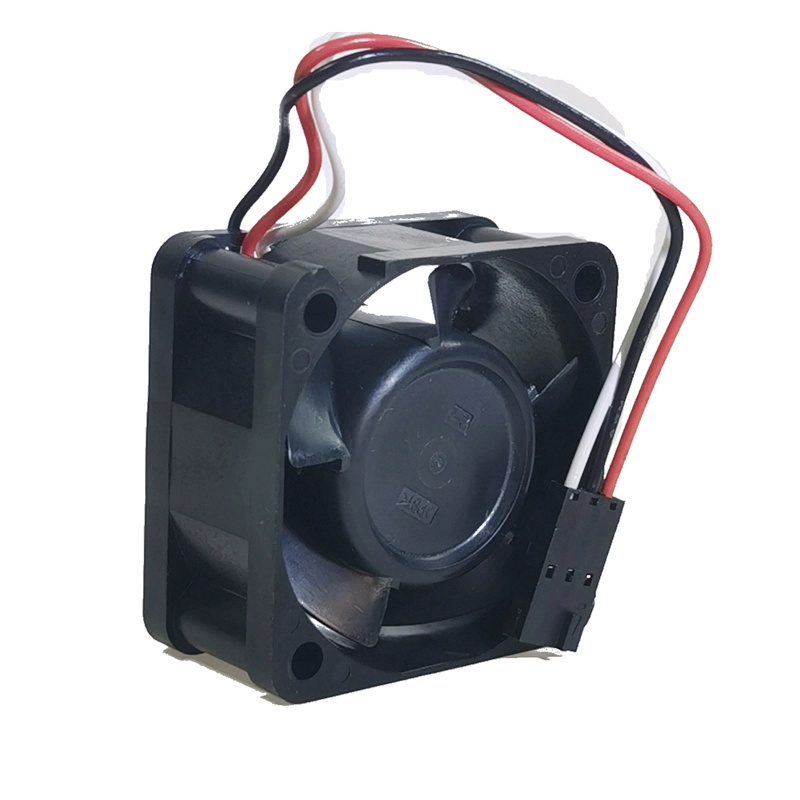

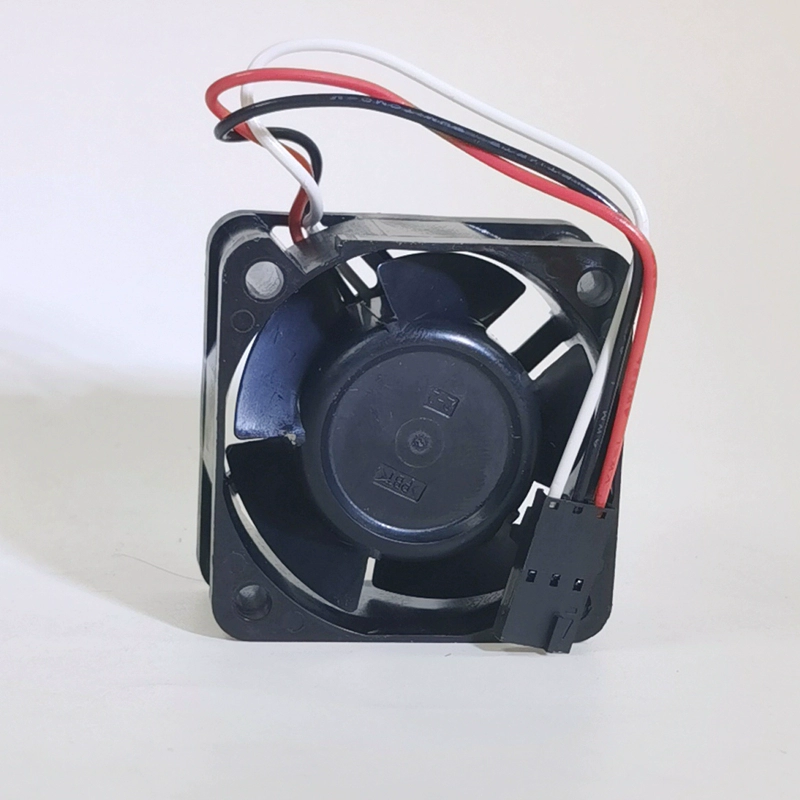

The NMB 1608VL-05W-B59-BQ1 is a compact and efficient DC Axial Cooling Fan from NMB Technologies, specifically designed for thermal management in electronics where space is limited. Operating on 24V DC power, it draws 0.09A of current, resulting in a 2.14W power consumption. Measuring 40mm x 40mm x 20mm, this fan is ideal for cooling components in servers, network equipment, and small industrial controls. It rotates at a high speed of 8500 RPM, delivering an airflow of 9.5 CFM and a static pressure of 69.4 Pa. With a noise level of 33 dBA, it provides effective cooling with a relatively low acoustic profile. Equipped with 3-wire leads, this fan typically provides a tachometer output for speed monitoring and includes features like auto-restart and a locked rotor sensor for enhanced reliability. Built with ball bearings for durability, the 1608VL-05W-B59-BQ1 has a long life expectancy of 50,000 hours at 25°C and is designed to operate reliably in temperatures ranging from -20°C to 75°C.
1608VL-05W-B59-BQ1 Original NMB KL-05W-B39/B69 24V 4020 Fanuc system driver
Manufacturer: NMB Technologies
Model Number: 1608VL-05W-B59-BQ1
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.09A
Rated Power: 2.14W
Speed: 8500 RPM
Airflow: 9.5 CFM (0.27 m³/min)
Static Pressure: 69.4 Pa (0.28 inch-H2O)
Noise Level: 33 dBA
Dimensions: 40mm x 40mm x 20mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -20°C to 75°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Locked Rotor Sensor
