Description

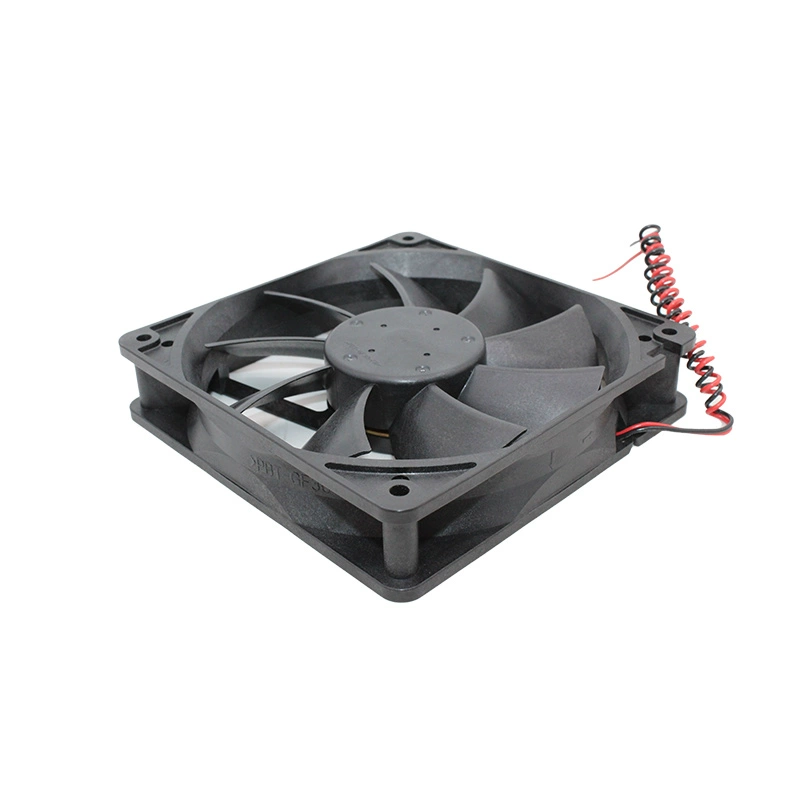

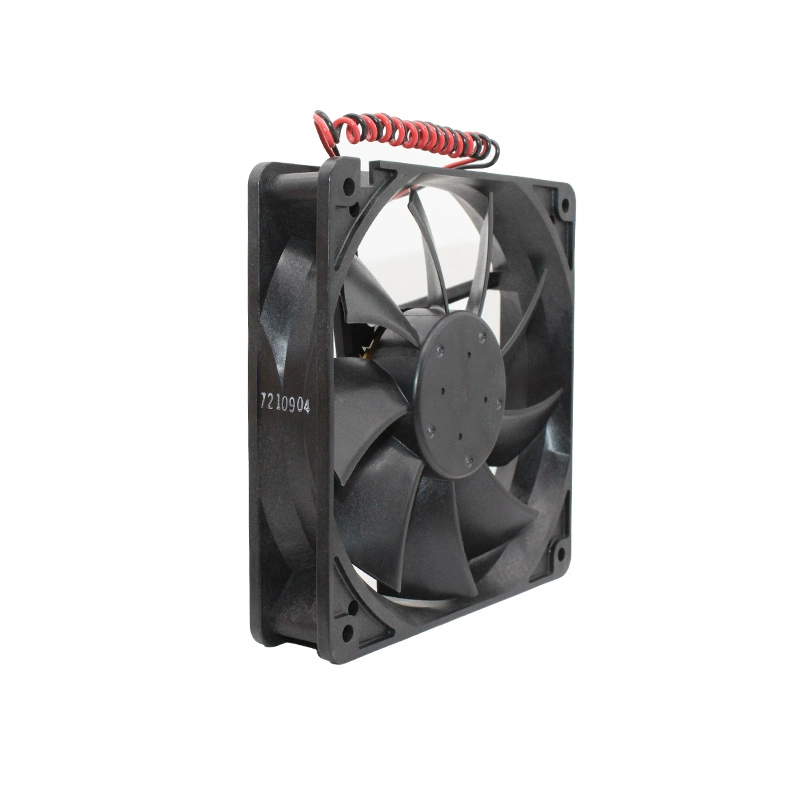

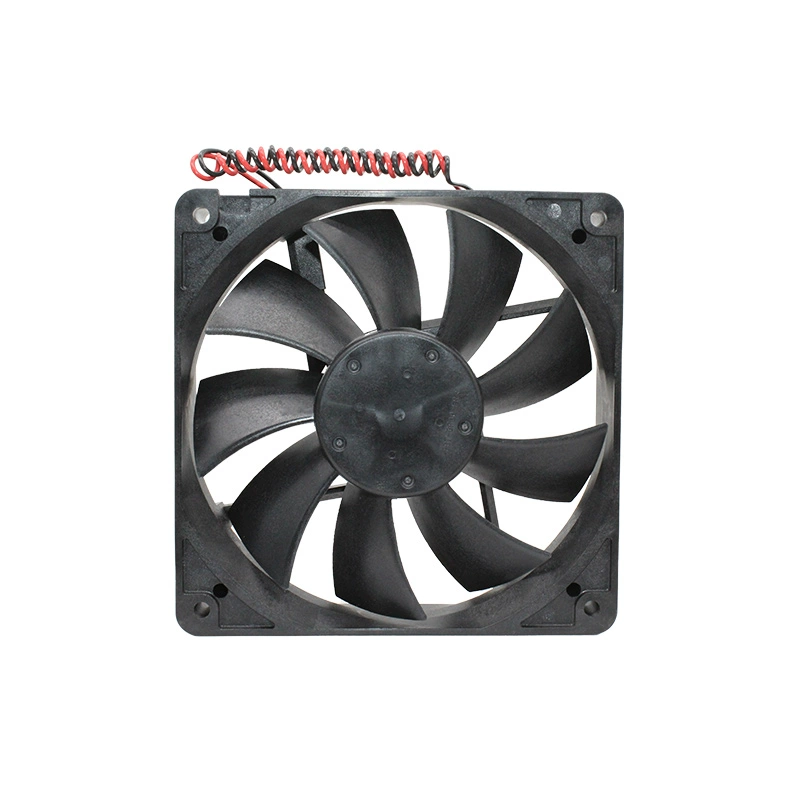

The NMB 4710KL-05W-B50-B00 is a versatile 24V DC axial cooling fan. Measuring 120mm x 120mm x 25mm, this fan is designed for general-purpose cooling applications in various electronic systems, industrial equipment, and power supplies where reliable airflow is needed. It operates at a rated voltage of 24V DC and draws a current of 0.38A, resulting in a power consumption of 9.12W. This allows it to achieve a rotational speed of 2800 RPM, delivering an airflow of 114.7 CFM and a static pressure of 0.203 inch-H2O. Its noise level is 41.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 2-wire leads for power connection and includes auto-restart and polarity protection.
Model Number: 4710KL-05W-B50-B00
Manufacturer: NMB Technologies Corporation
Series: KL Series
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 26V DC
Rated Current: 0.38A
Rated Power: 9.12W
Speed: 2800 RPM
Airflow: 114.7 CFM (3.25 m³/min)
Static Pressure: 0.203 inch-H2O (50.6 Pa)
Noise Level: 41.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +60°C
Weight: 180g
Approvals/Certifications: CE, CSA, UL, VDE
