Description

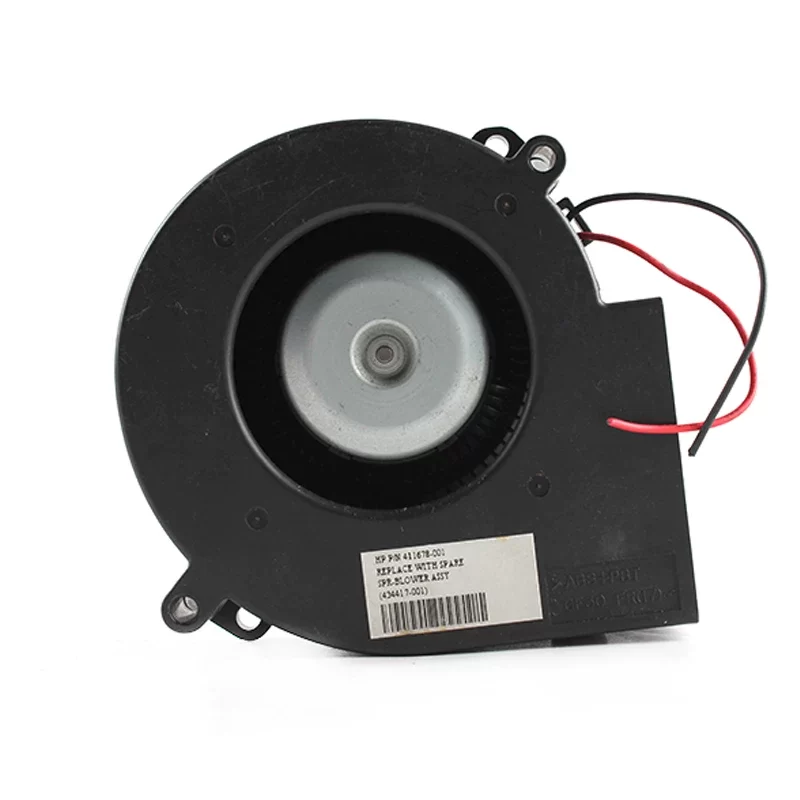

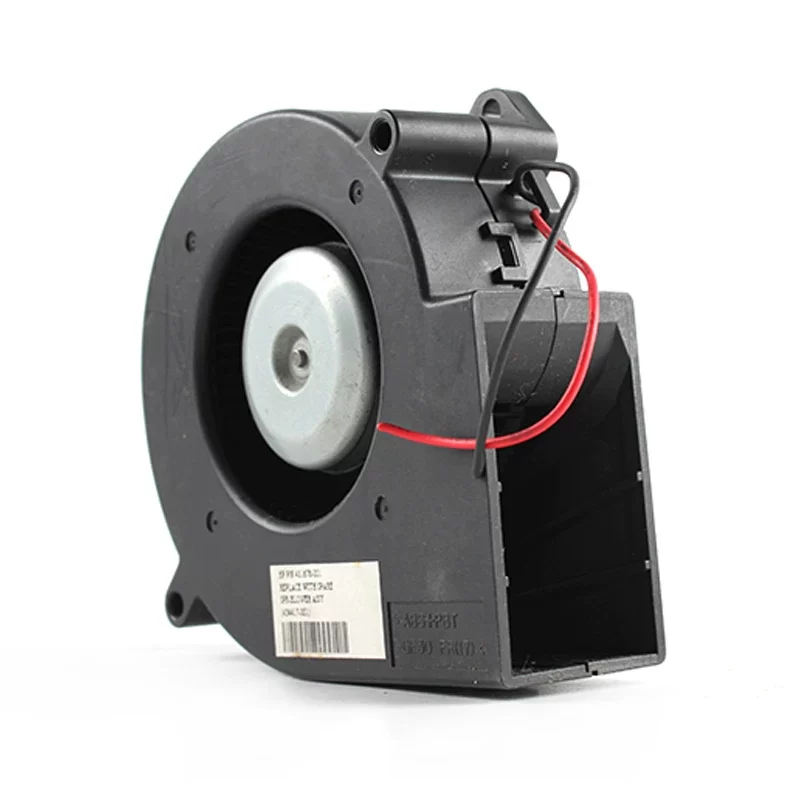

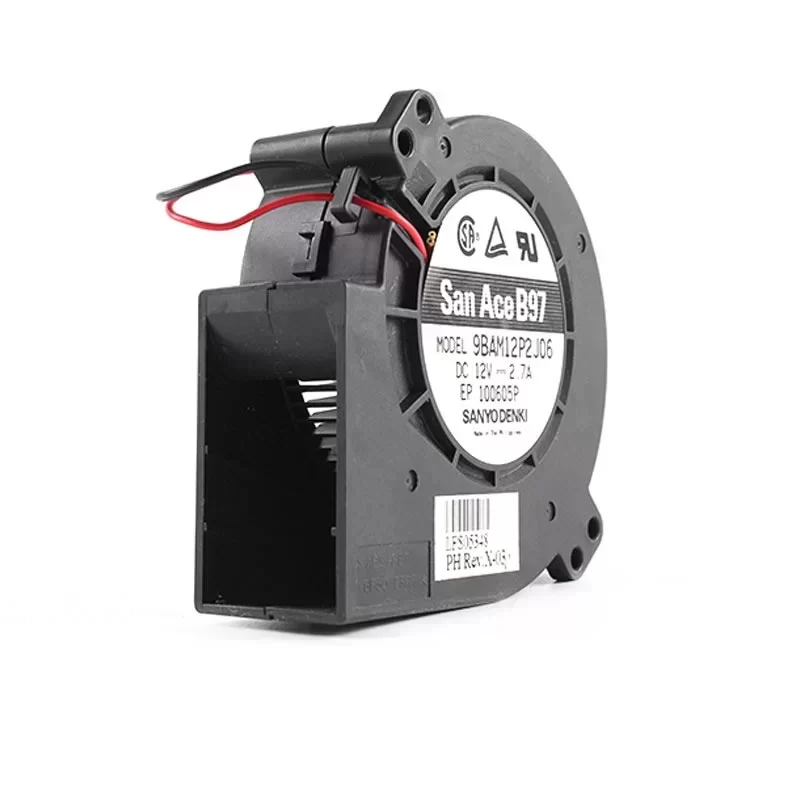

The Sanyo Denki 9BAM12P2J06 is a high-performance 12VDC 97 x 97 x 33 mm DC centrifugal blower fan, engineered for high static pressure thermal management in dense electronic systems. Featuring dual ball bearings, PWM speed control, and a flame-retardant plastic housing and impeller (UL 94V-0), this compact cooling blower delivers an airflow of 49.33 CFM (83.81 m³/h / 1.40 m³/min) and a static pressure of 85.09 mmH₂O (834.4 Pa / 3.35 inH₂O) at a rated speed of 2,800 RPM. Operating on a voltage range of 10.8 – 13.2 VDC, it draws a maximum current of 2.7 A with a power consumption of 32.4 W and includes 4-wire lead connections with PWM speed control and an integrated pulse sensor (tachometer). Built for continuous high-reliability cooling, it weighs 0.17 kg, operates at 64 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 50,000 hours, and holds safety certifications including UL, CSA, TUV, and CE.
9BAM12P2J06 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9BAM12P2J06
Type: DC Blower Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Dimensions: 97 x 97 x 33 mm
Weight: 0.17 kg
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (4 Wires)
Control / Sensor Signal: PWM Speed Control & Pulse Sensor (Tachometer)
Rated Speed: 2,800 RPM (min⁻¹)
Max. Current Draw: 2.7 A
Max. Power Consumption: 32.4 W
Max. Air Flow: 49.33 CFM (83.81 m³/h / 1.40 m³/min)
Max. Static Pressure: 85.09 mmH₂O (834.4 Pa / 3.35 inH₂O)
Noise Level: 64 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: UL, CSA, TUV, CE
Application
The Sanyo Denki 9BAM12P2J06 is deployed in server enclosures, telecommunication power systems, networking equipment, industrial control cabinets, power distribution units, 3D printers, and medical electronic devices requiring high static pressure ventilation.
