Description

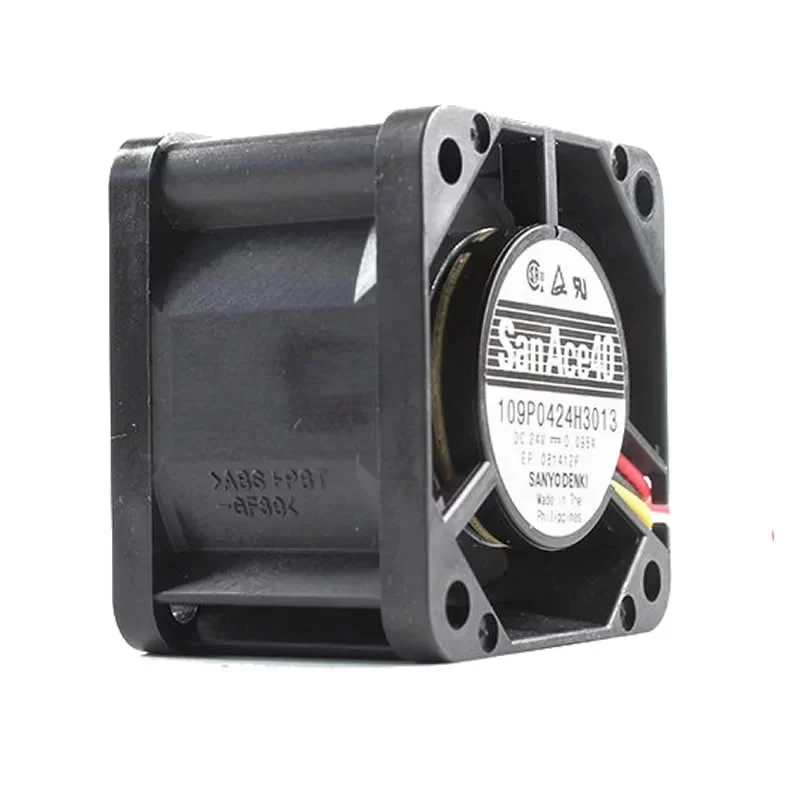

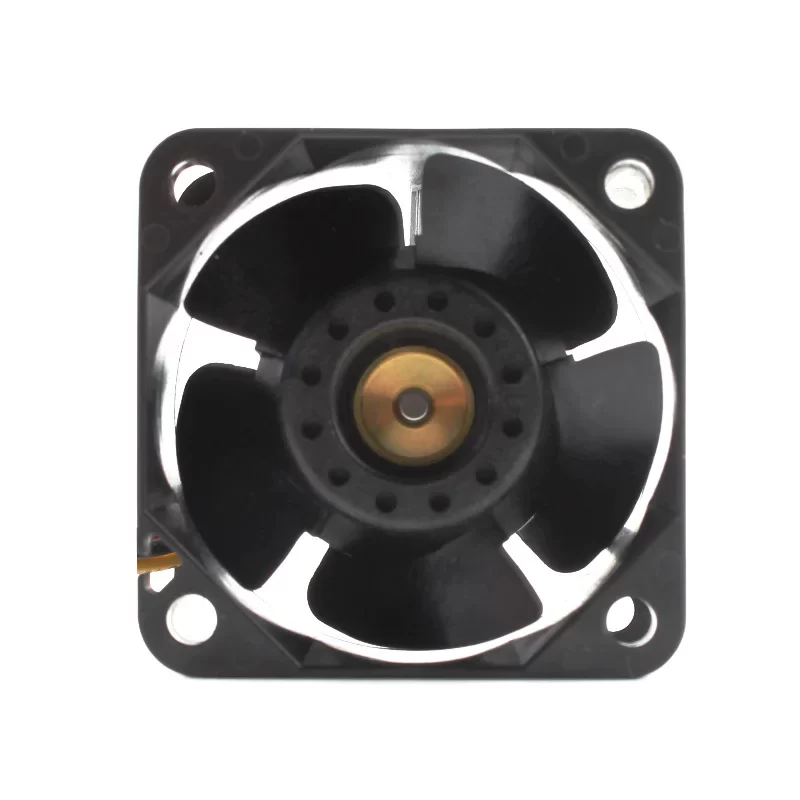

The Sanyo Denki 109P0424H3013 is a high-performance 24VDC 40 x 40 x 28 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings and a flame-retardant plastic frame and impeller (UL 94V-0), this compact cooling fan delivers an airflow of 11.3 CFM (19.20 m³/h / 0.32 m³/min) and a static pressure of 10.52 mmH₂O (103.1 Pa / 0.414 inH₂O) at a rated speed of 8,700 RPM. Operating on a voltage range of 14.0 – 27.6 VDC, it draws a maximum current of 0.095 A with a power consumption of 2.28 W and includes 3-wire lead connections with an integrated pulse sensor. Built for continuous high-reliability cooling, it weighs 0.052 kg, operates quietly at 37 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 60,000 hours, and holds safety certifications including UL, CSA, TUV, and CE.
109P0424H3013 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 109P0424H3013
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Dimensions: 40 x 40 x 28 mm
Weight: 0.052 kg
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (3 Wires)
Sensor Signal: Pulse Sensor (Tachometer)
Rated Speed: 8,700 RPM (min⁻¹)
Max. Current Draw: 0.095 A
Max. Power Consumption: 2.28 W
Max. Air Flow: 11.3 CFM (19.20 m³/h / 0.32 m³/min)
Max. Static Pressure: 10.52 mmH₂O (103.1 Pa / 0.414 inH₂O)
Noise Level: 37 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 60,000 hours
Safety Approvals: UL, CSA, TUV, CE
Application
The Sanyo Denki 109P0424H3013 is deployed in server enclosures, telecommunication power systems, networking equipment, industrial control cabinets, power distribution units, and medical electronic devices.
